Inspection Notes:  Shields Class Hull # 9 Bolero

Inspection Date:  June 27, 2007
Inspection Location:  Masons Island Marina, Mystic, CT

The Hull (Topsides) | The Hull (Bottom) | The Deck | The Interior | Rigging, Sails, and Equipment



The Interior

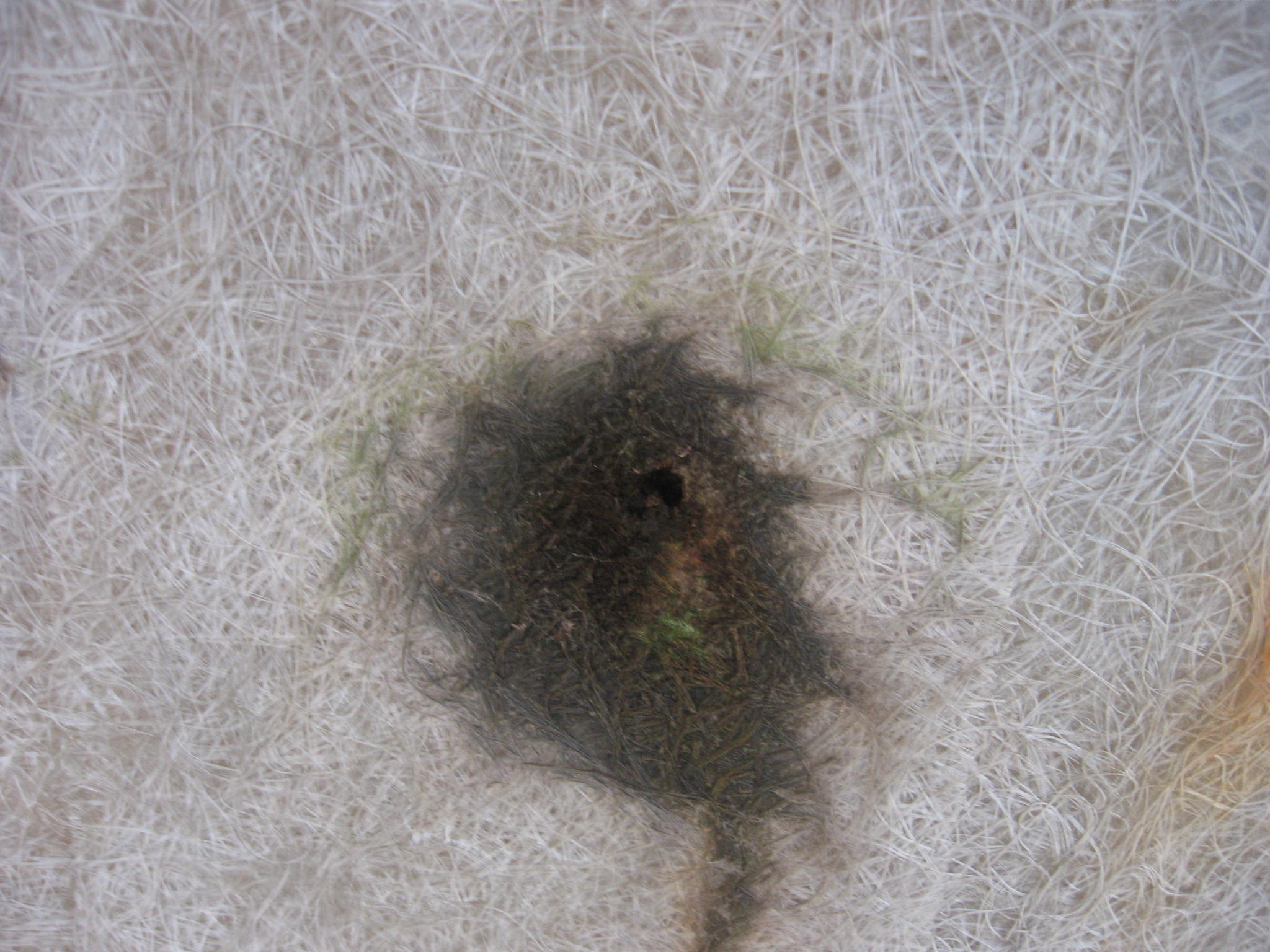

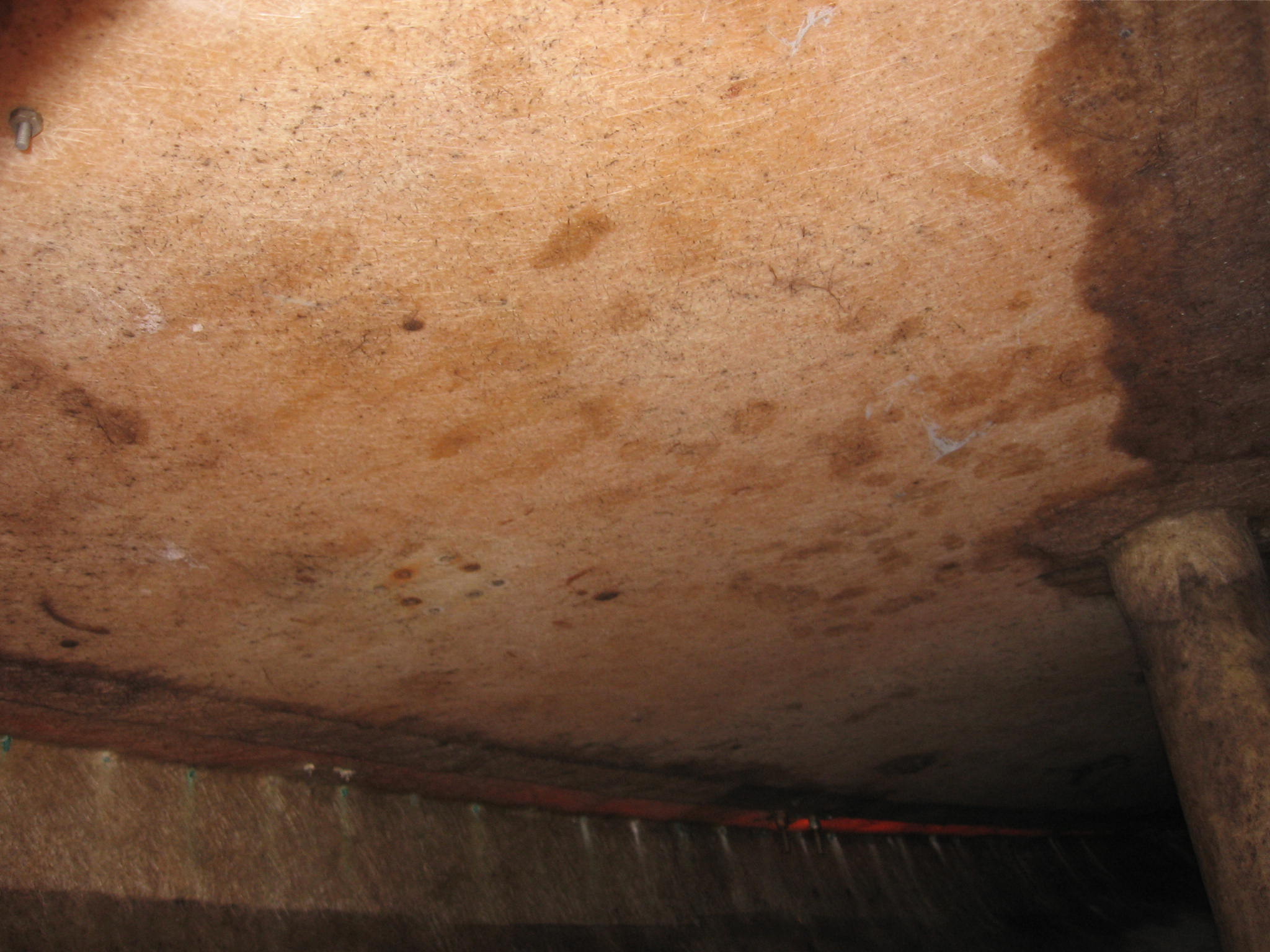

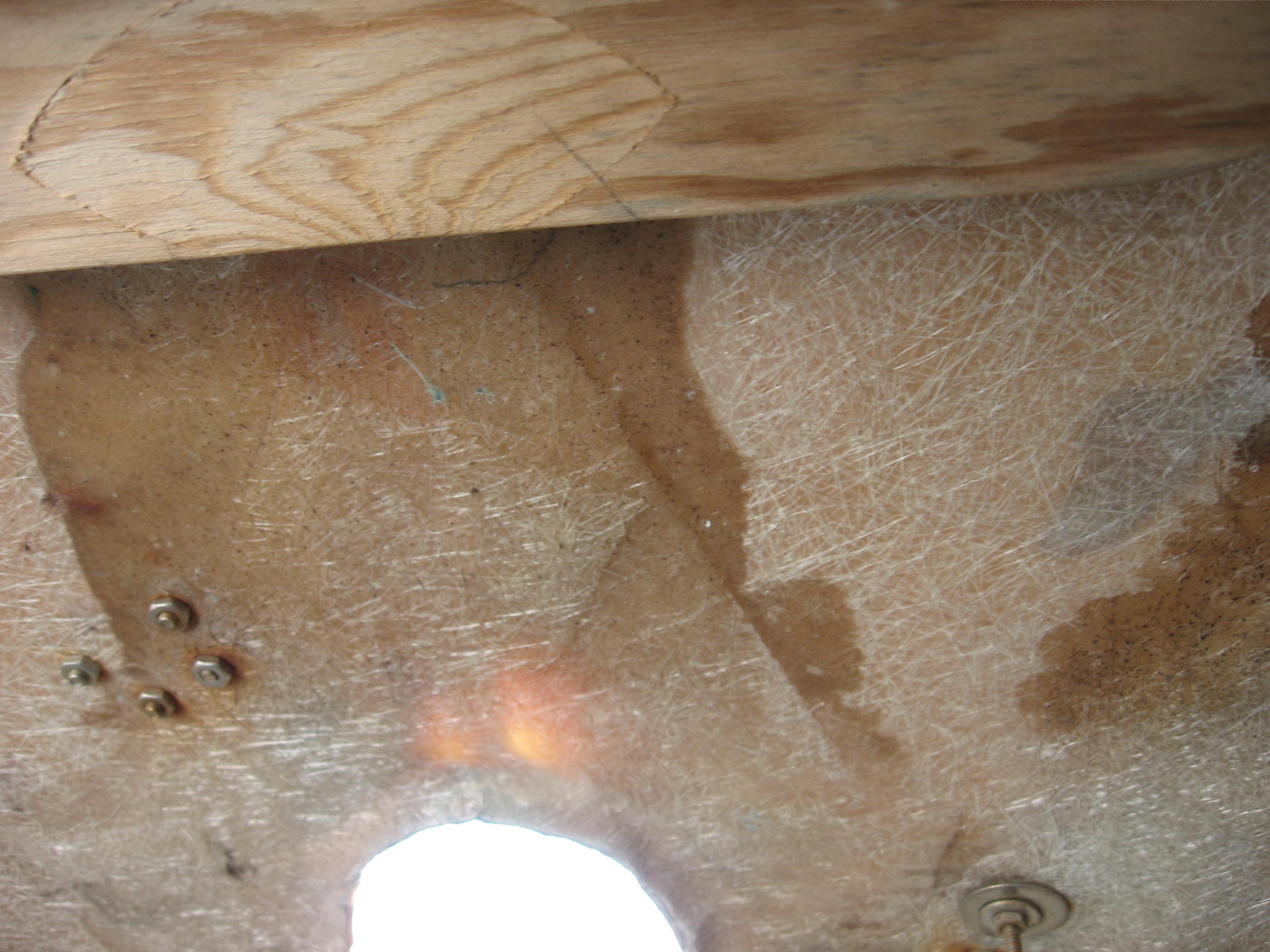

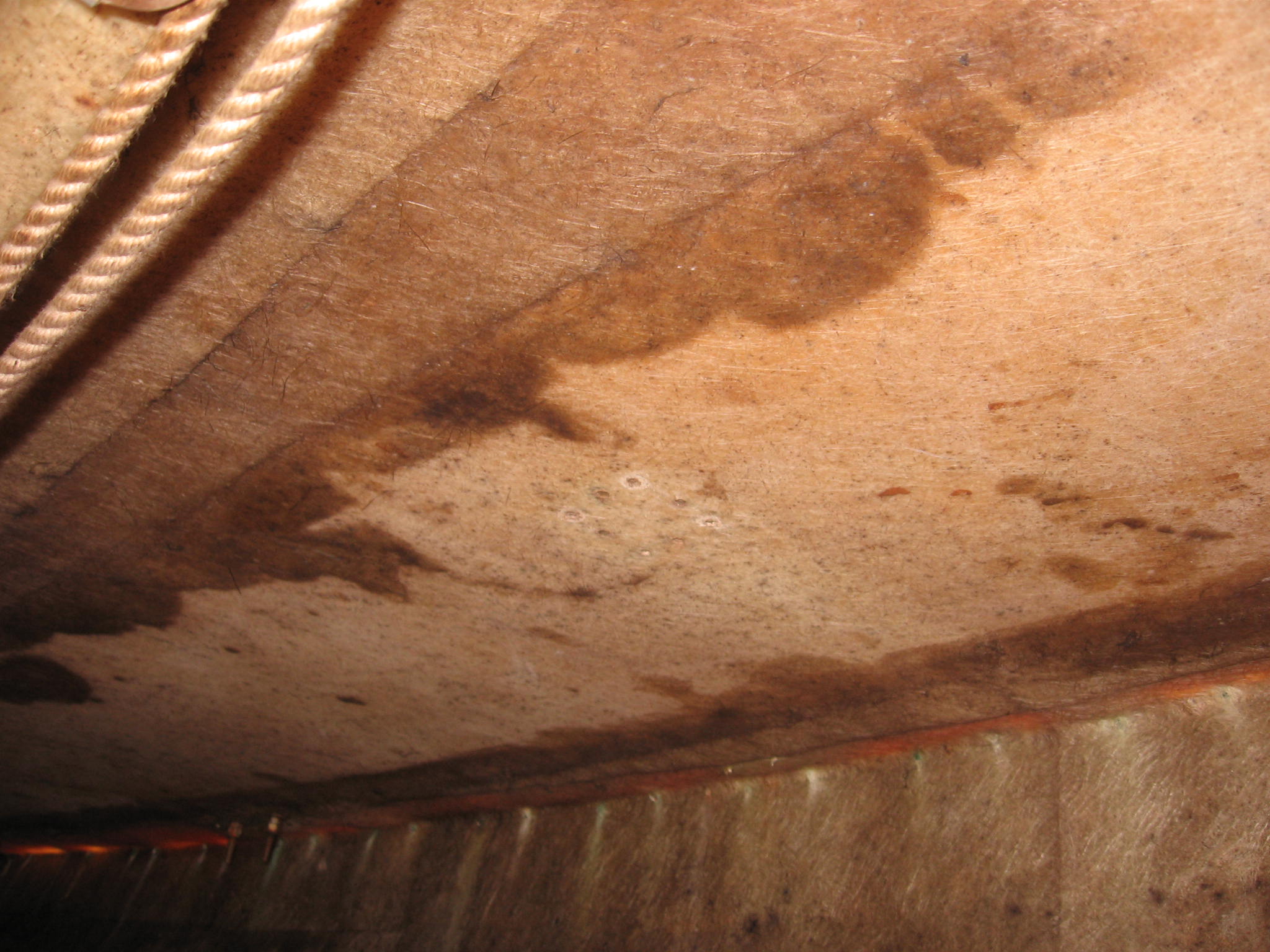

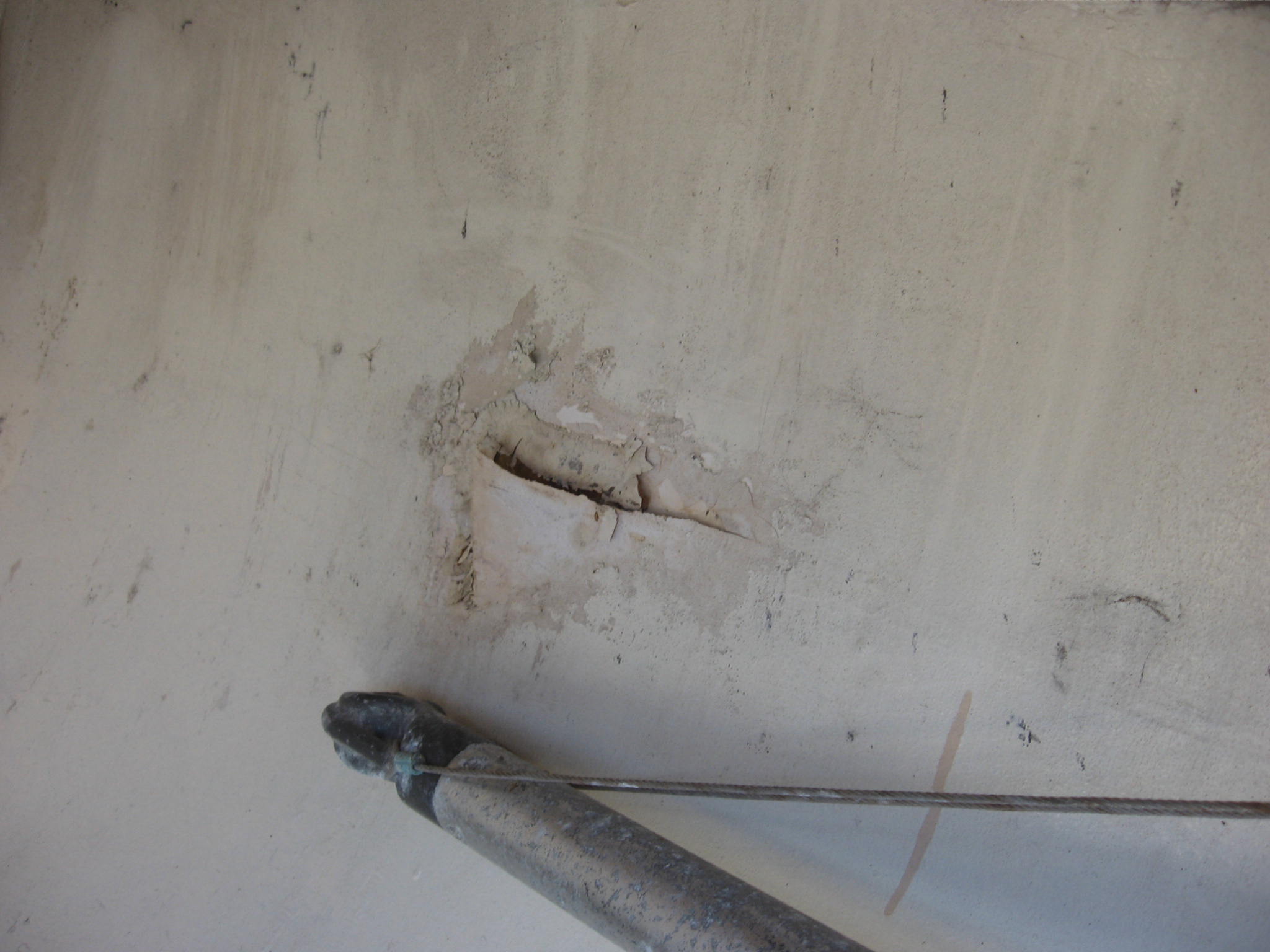

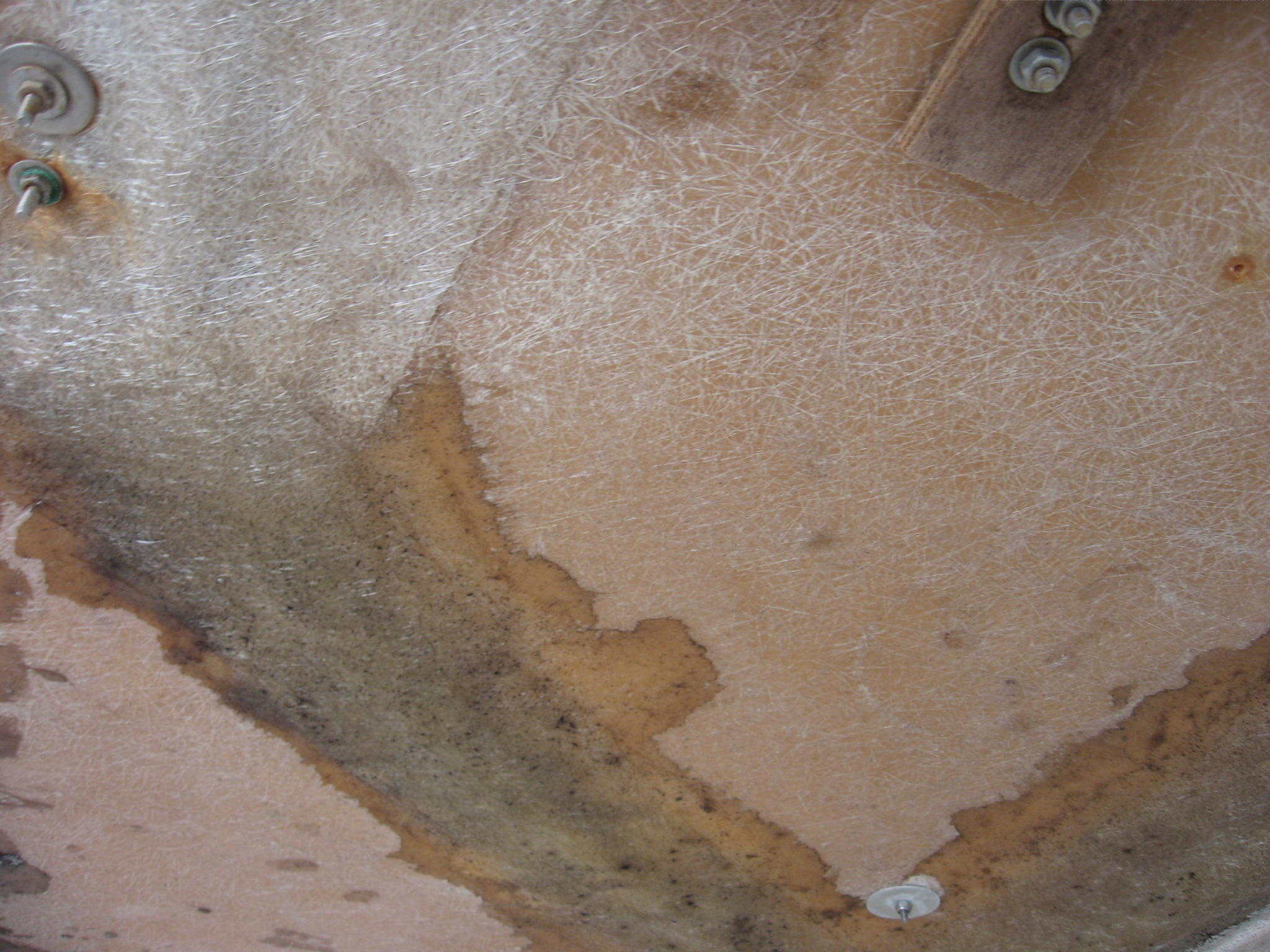

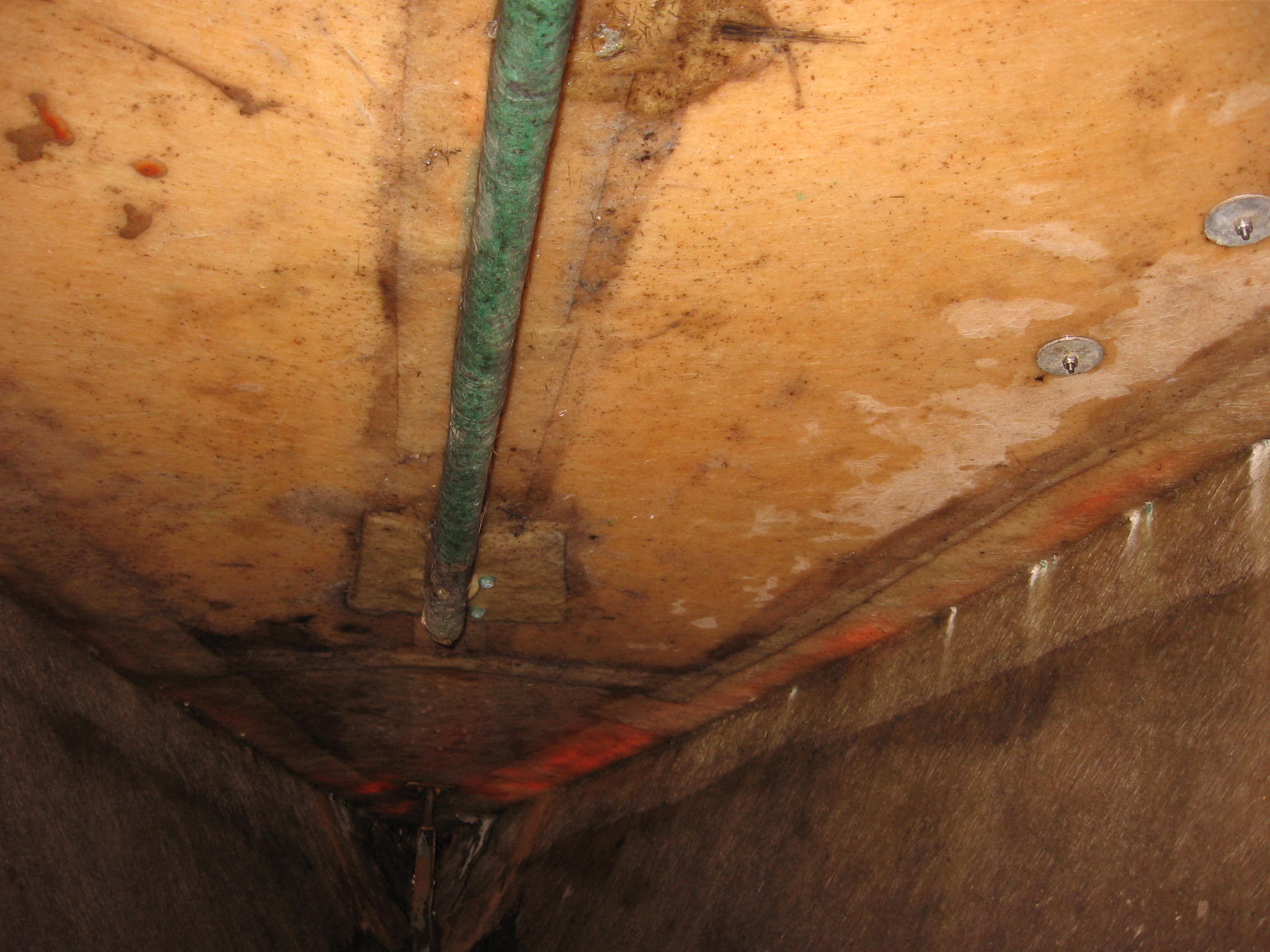

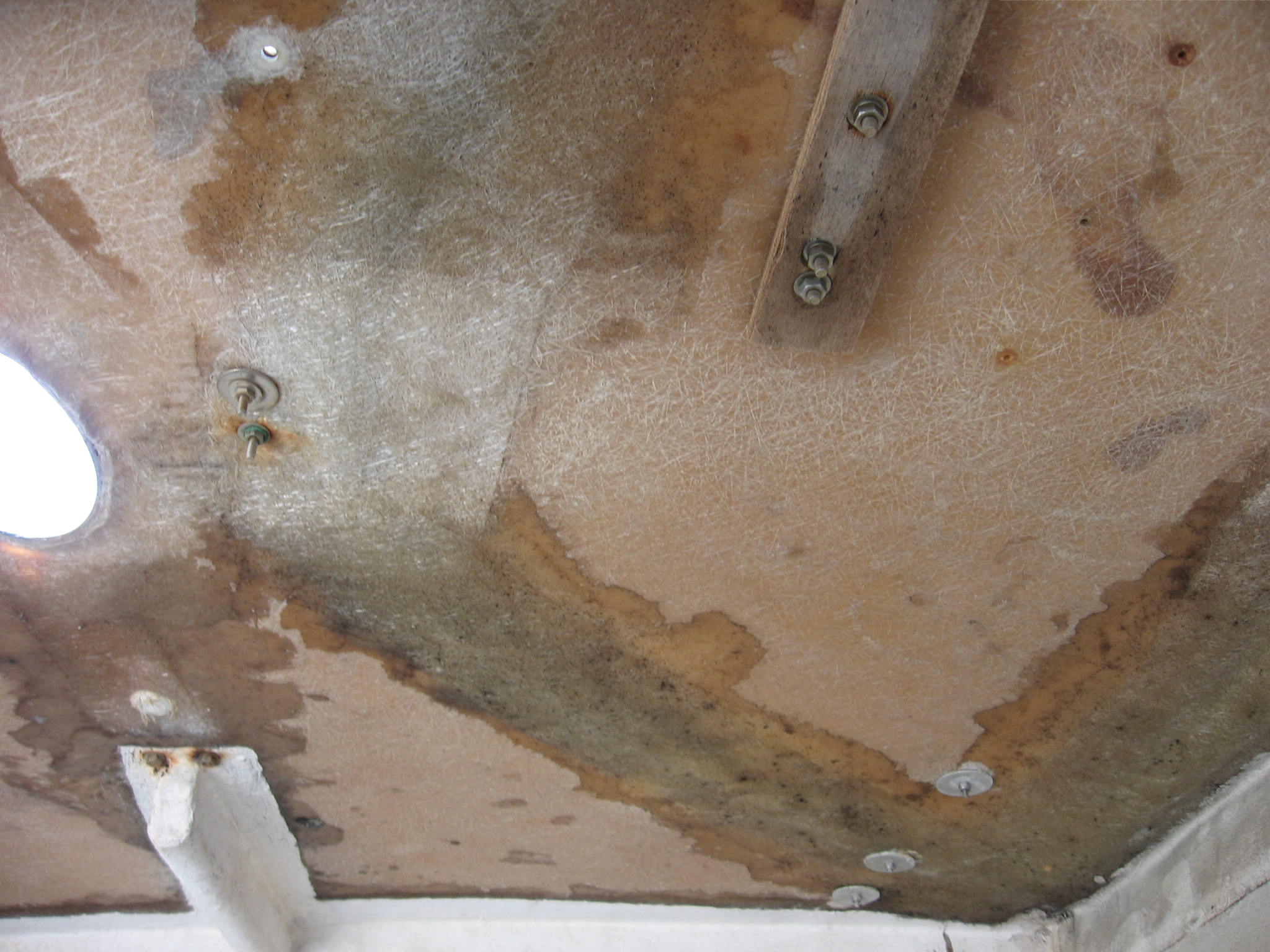

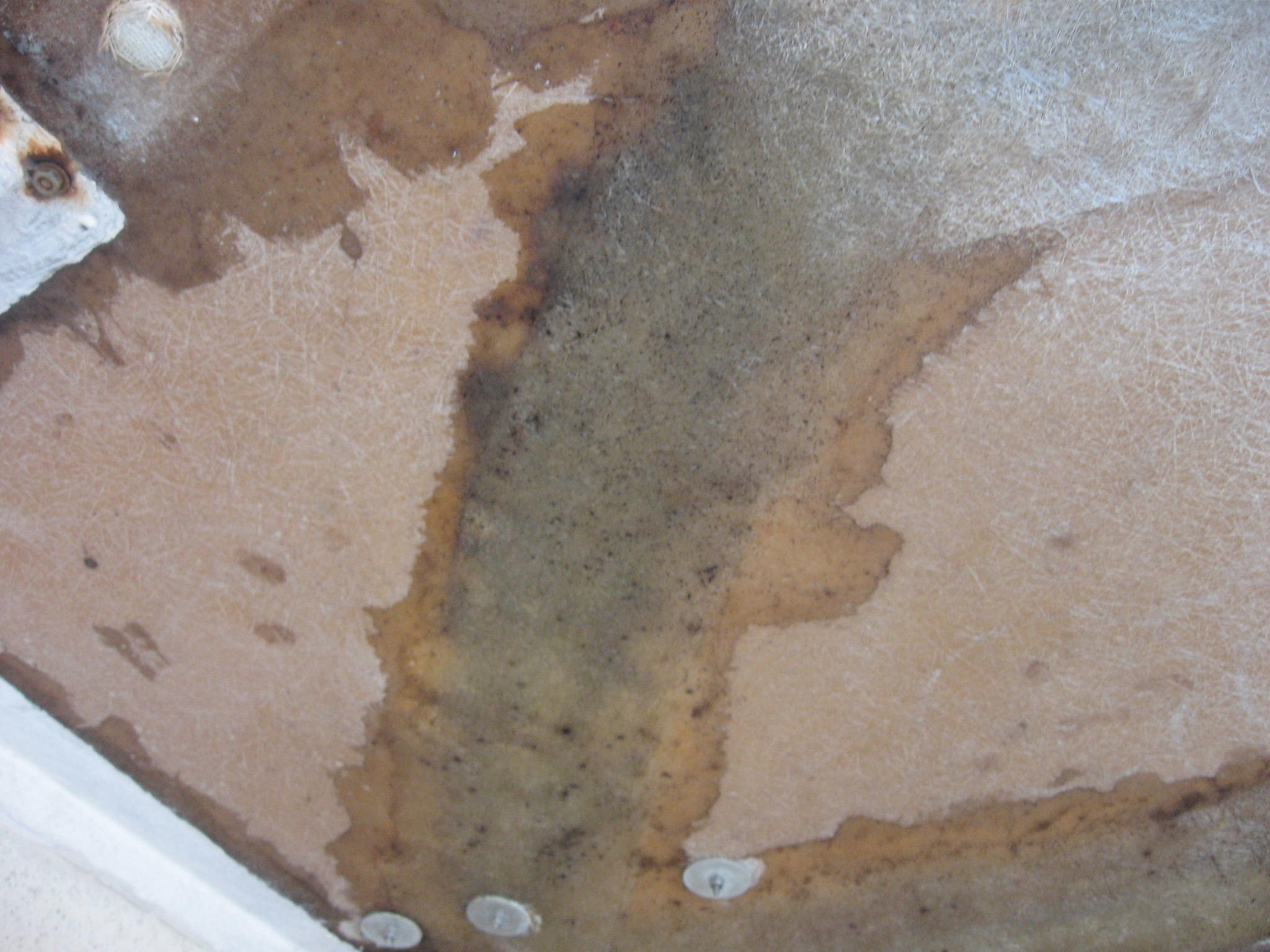

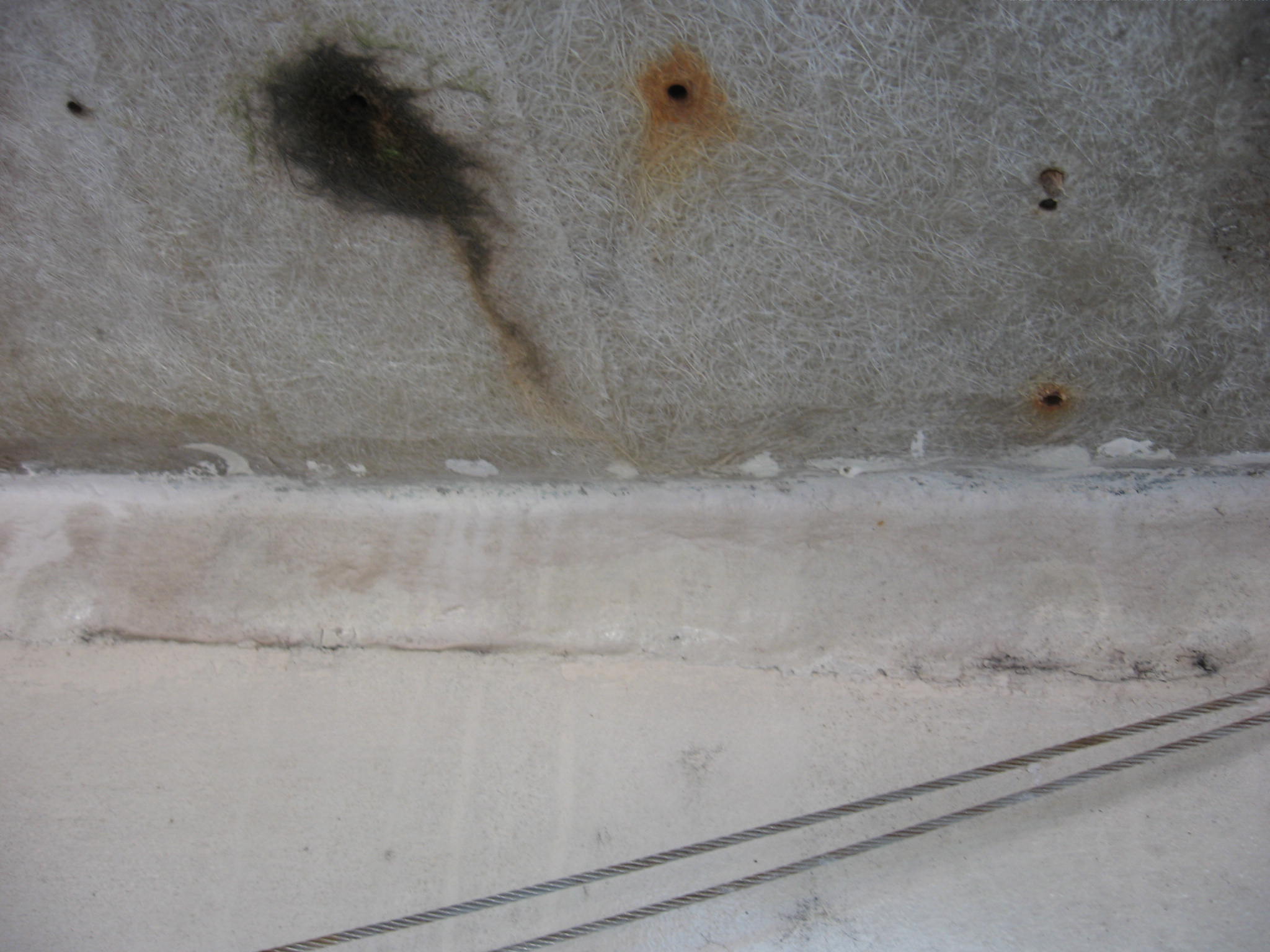

In these photos, you can see some of the areas I talked about on the last page, including the black water-damaged spot, the long crooked patch beneath the deck crack, and the top side of the deck crack itself.

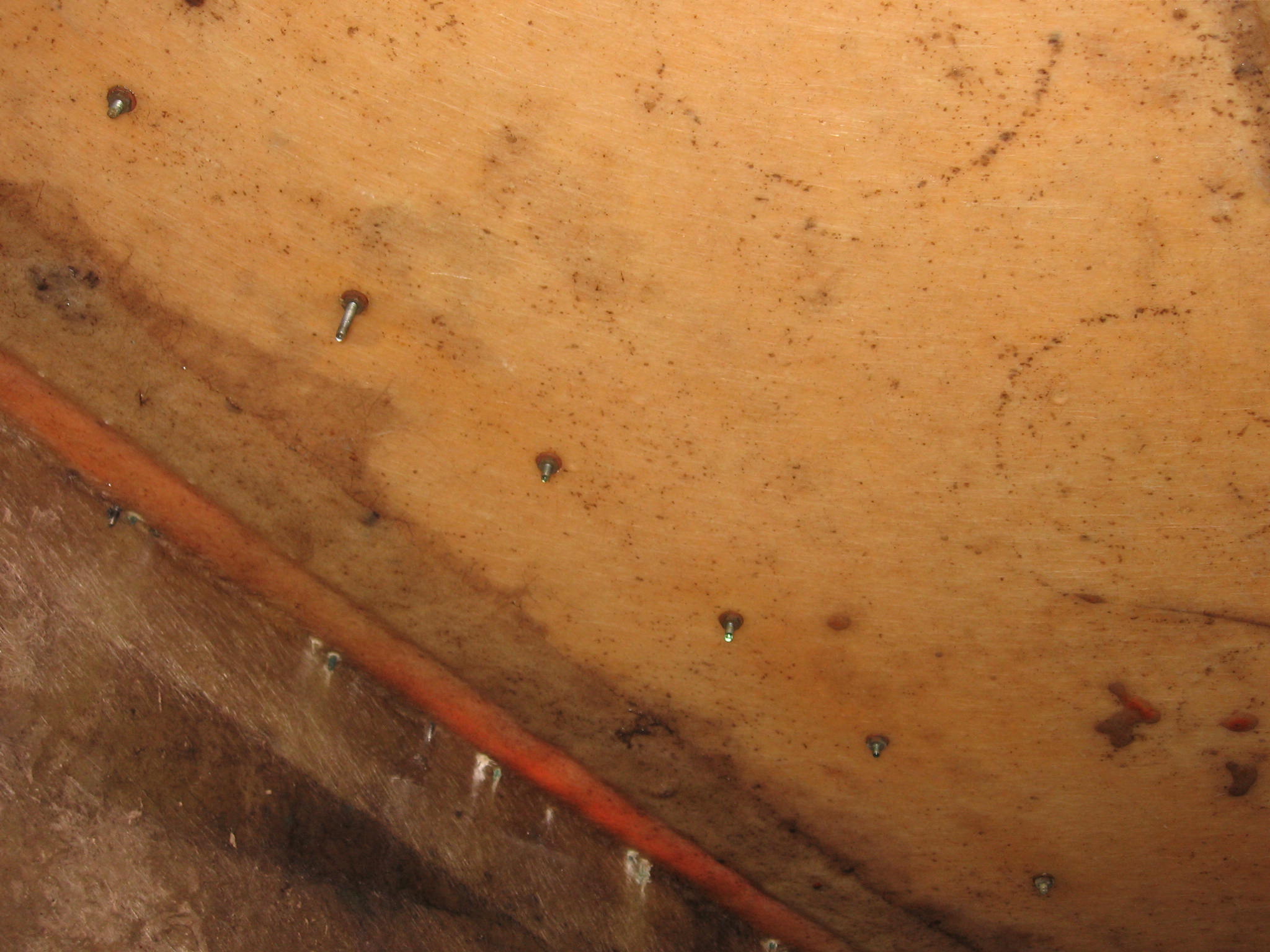

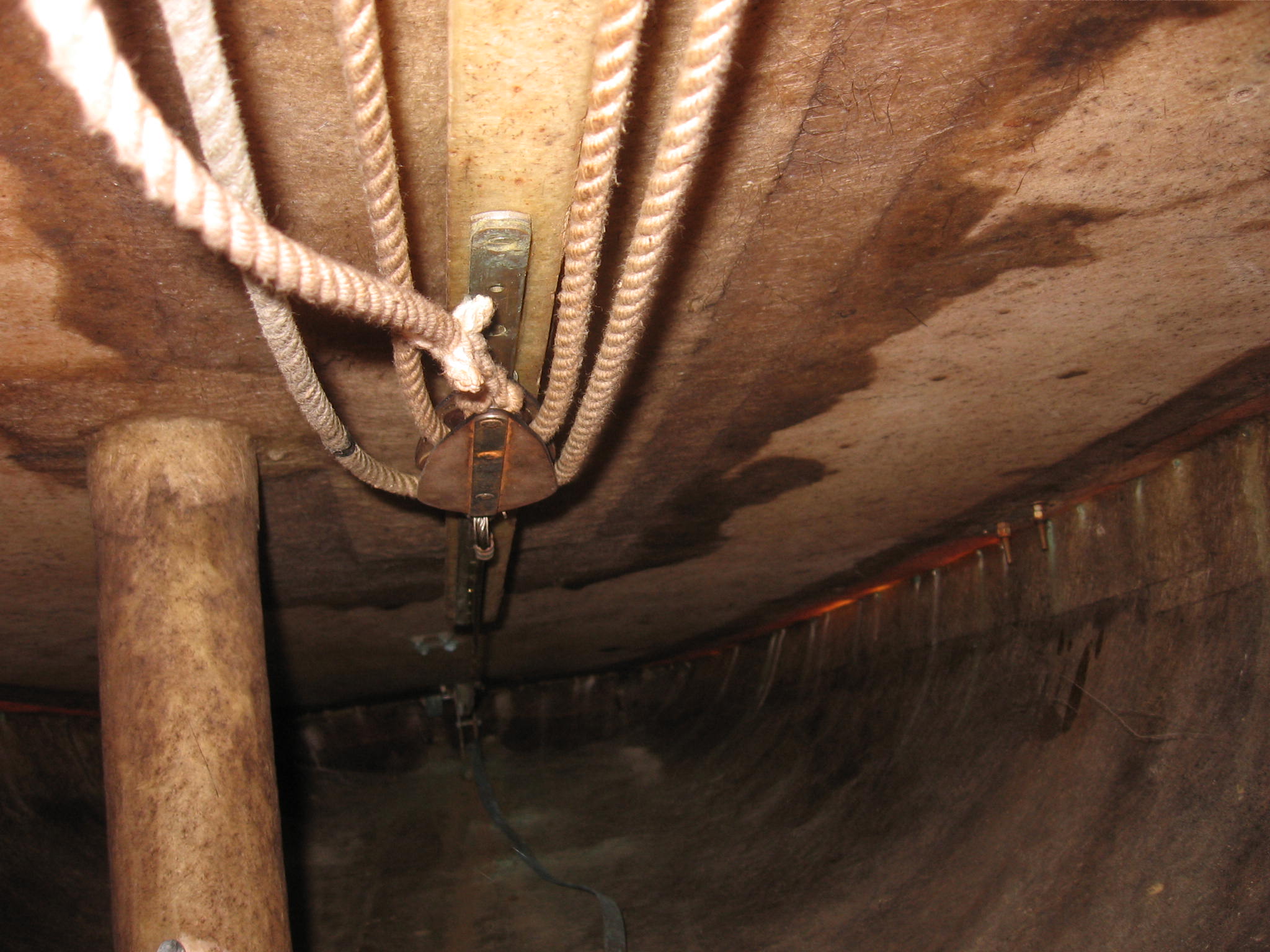

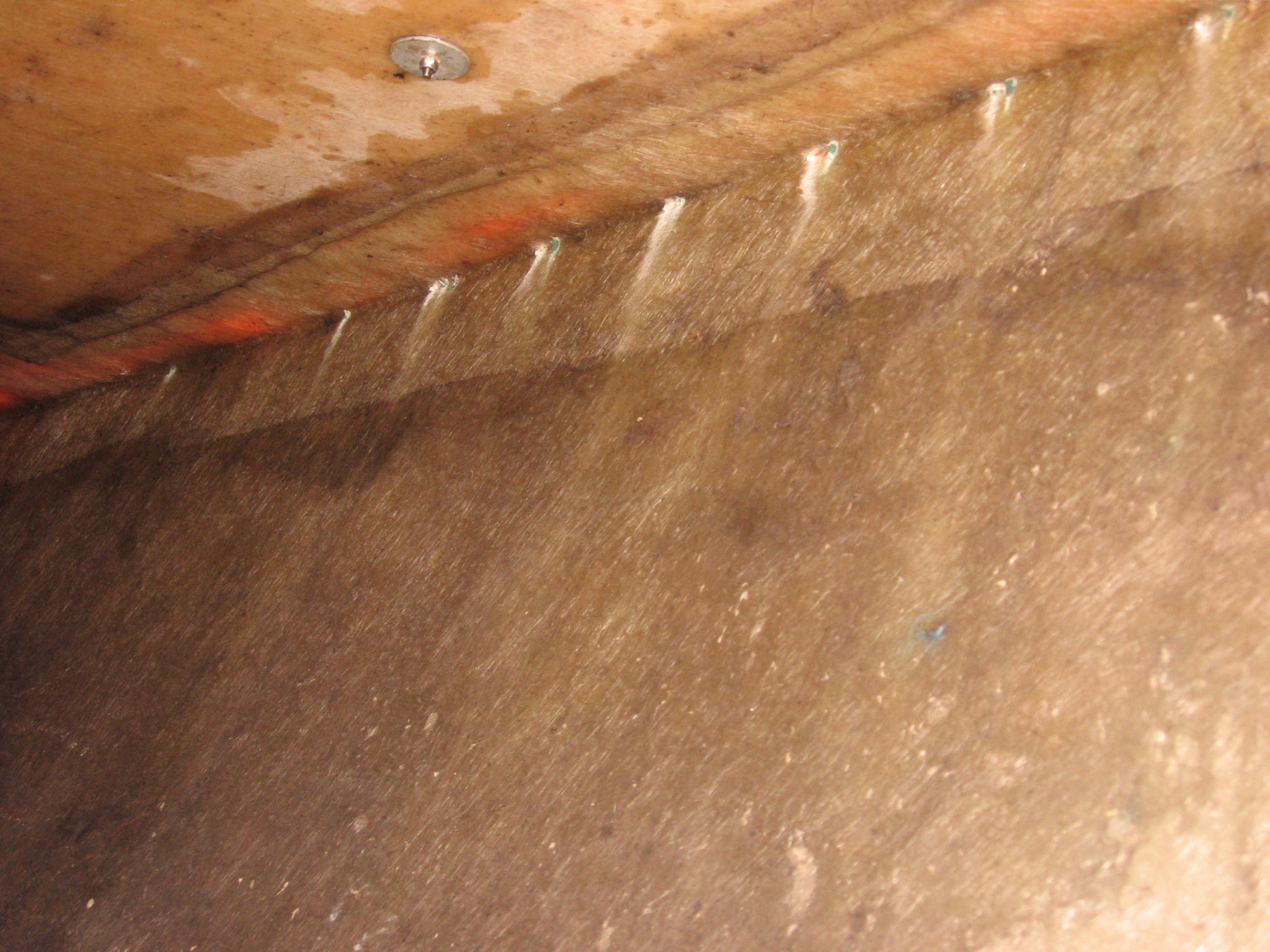

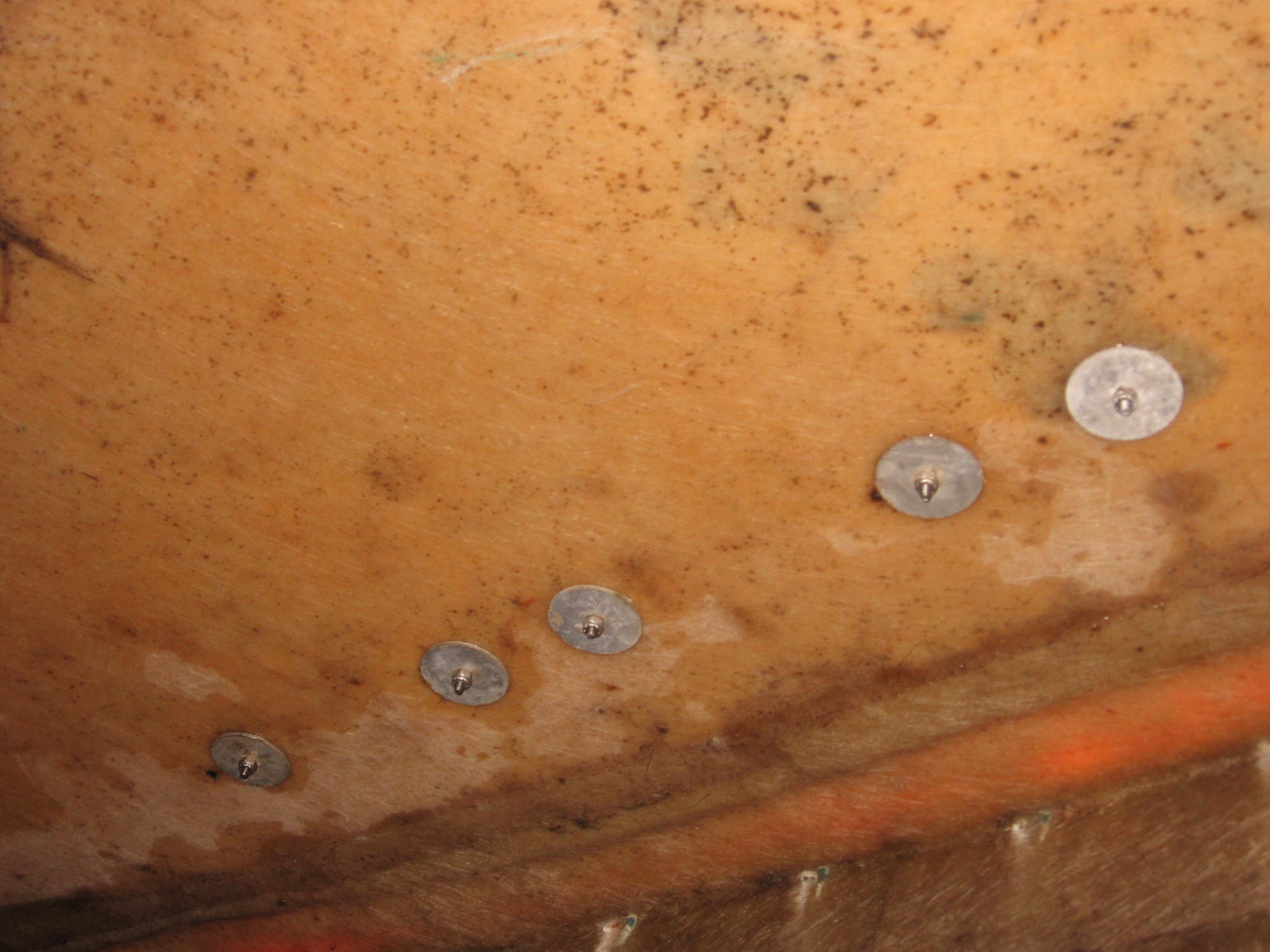

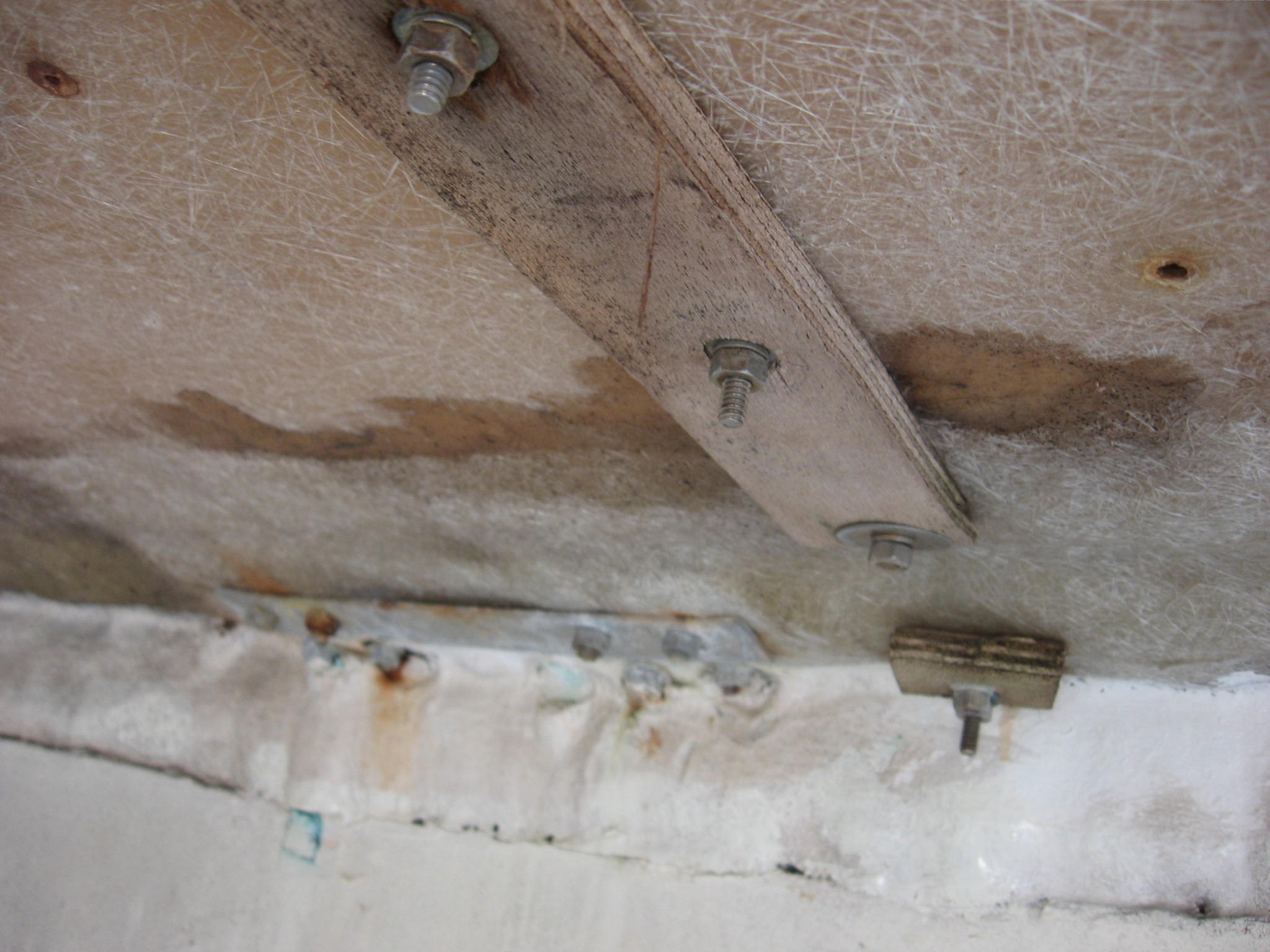

The backing plates for much of the hardware are minimal or nonexistent, and I'd suggest comprehensively renewing all of this anyway.

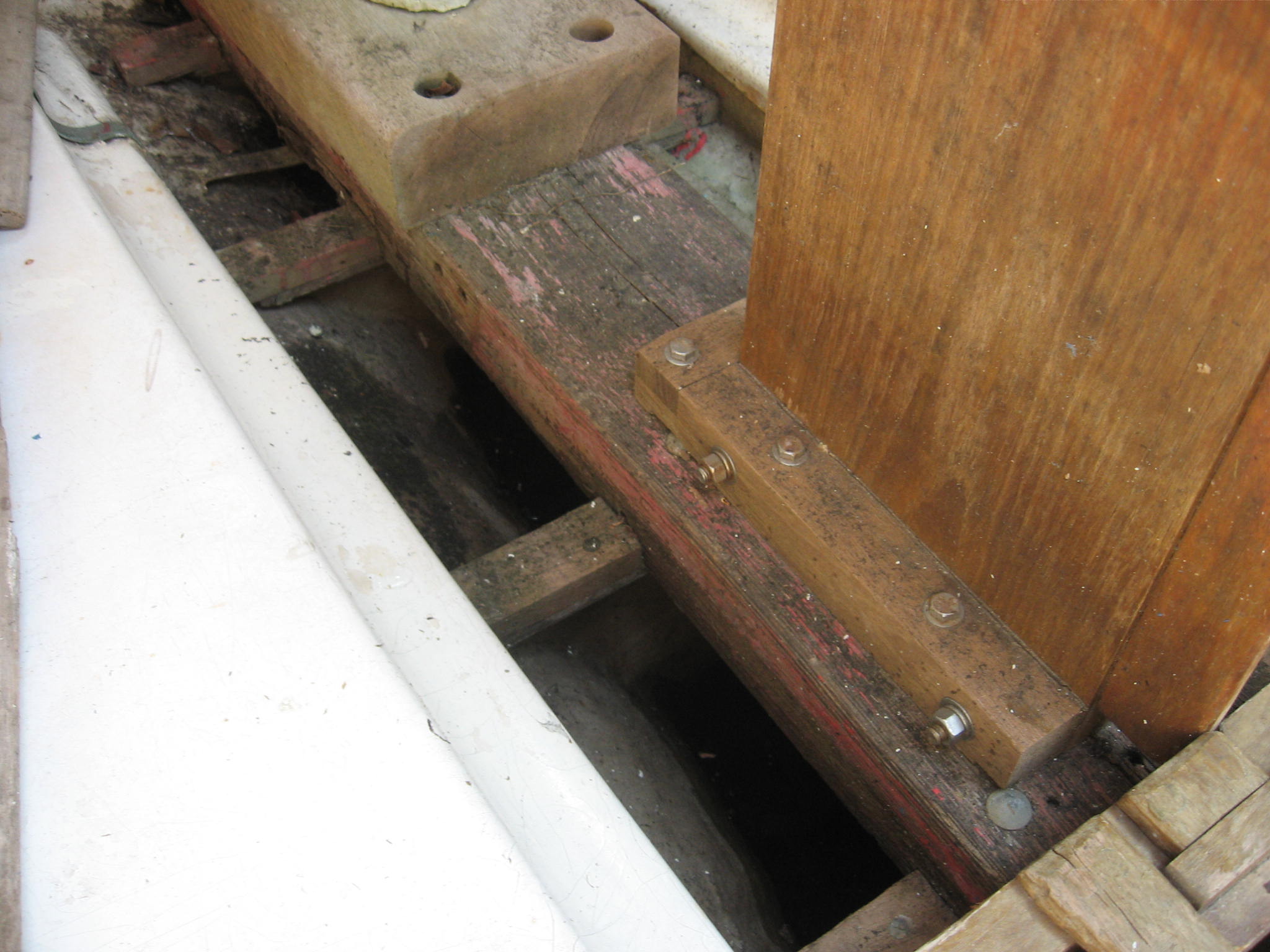

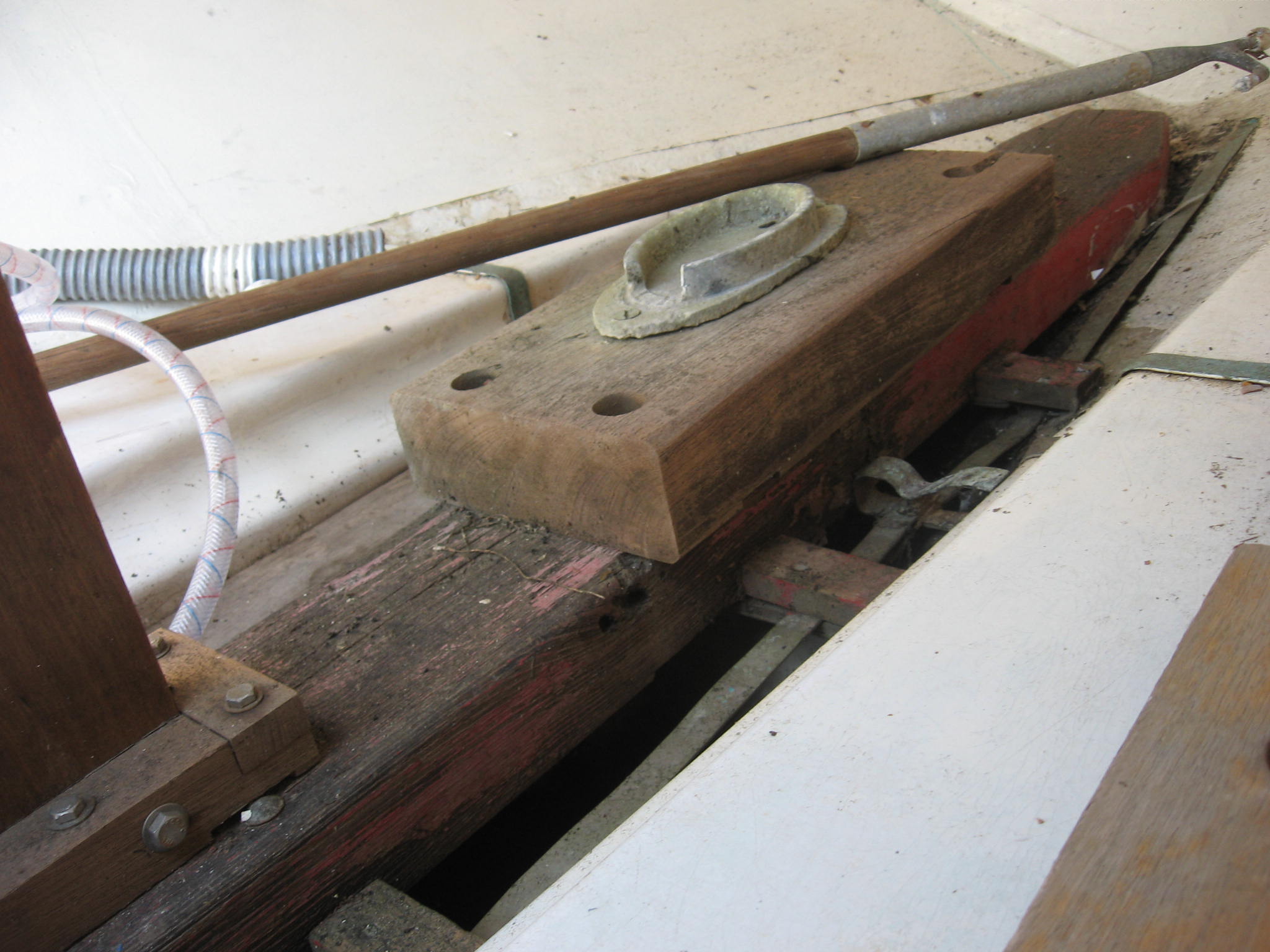

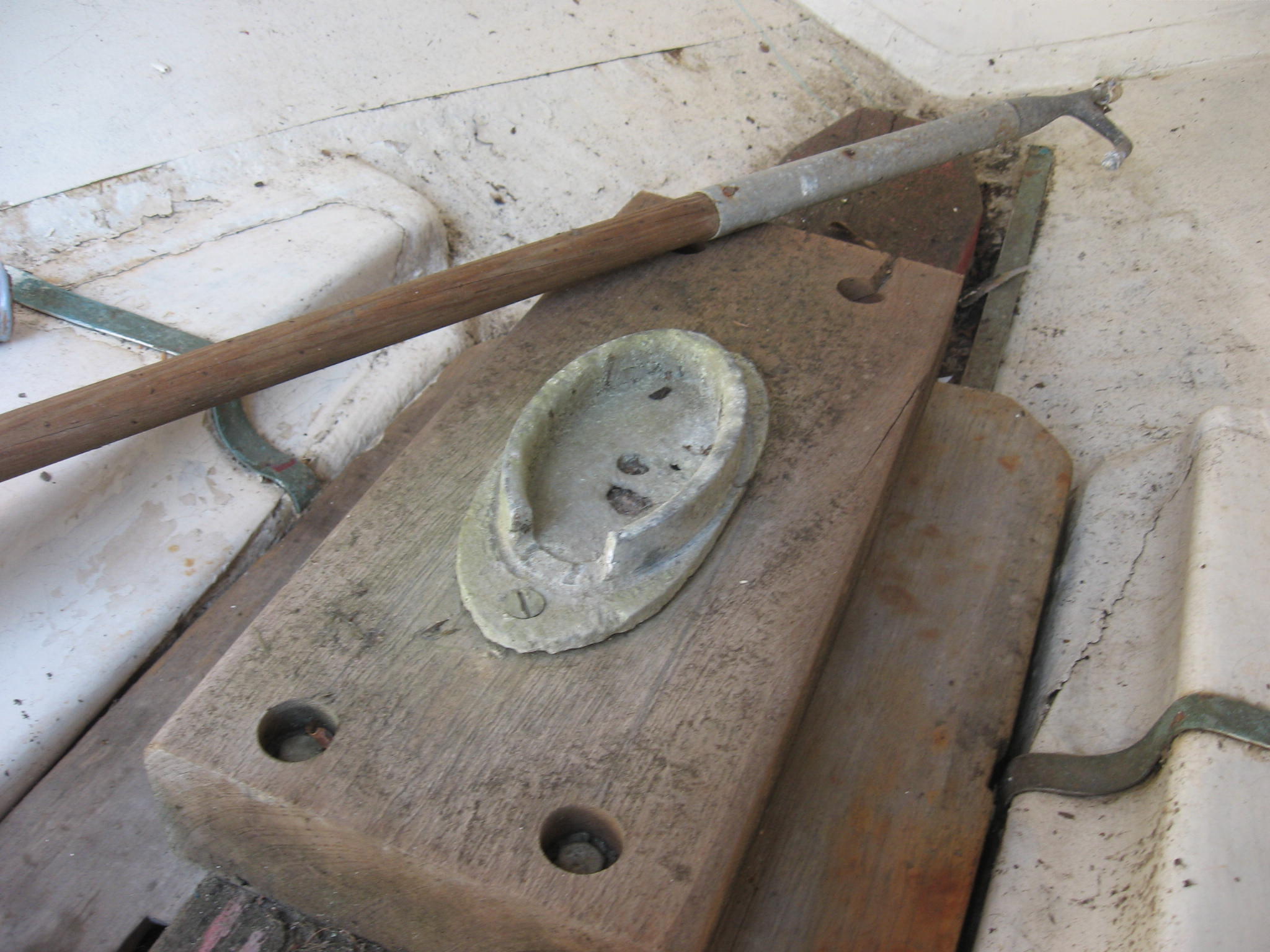

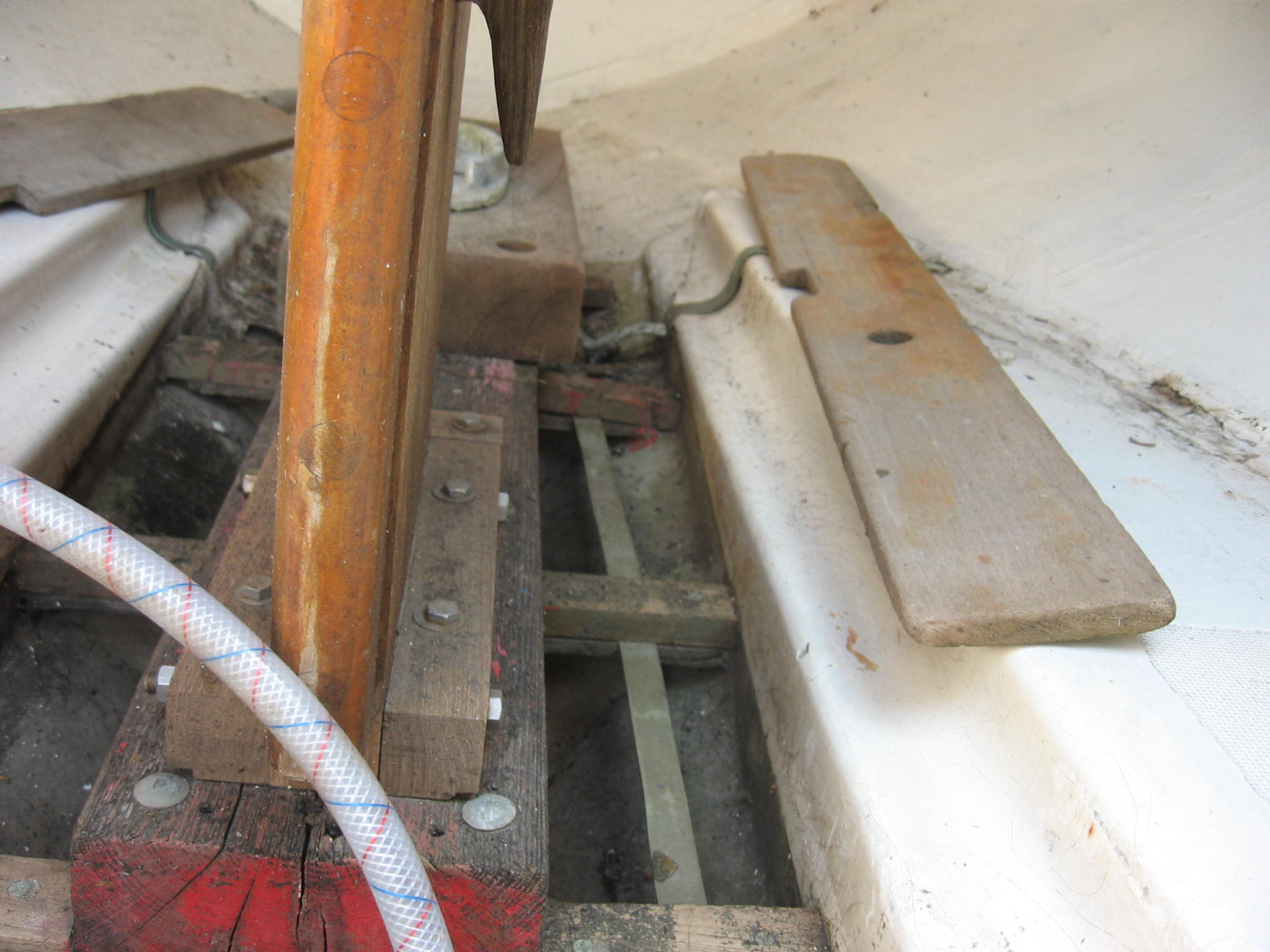

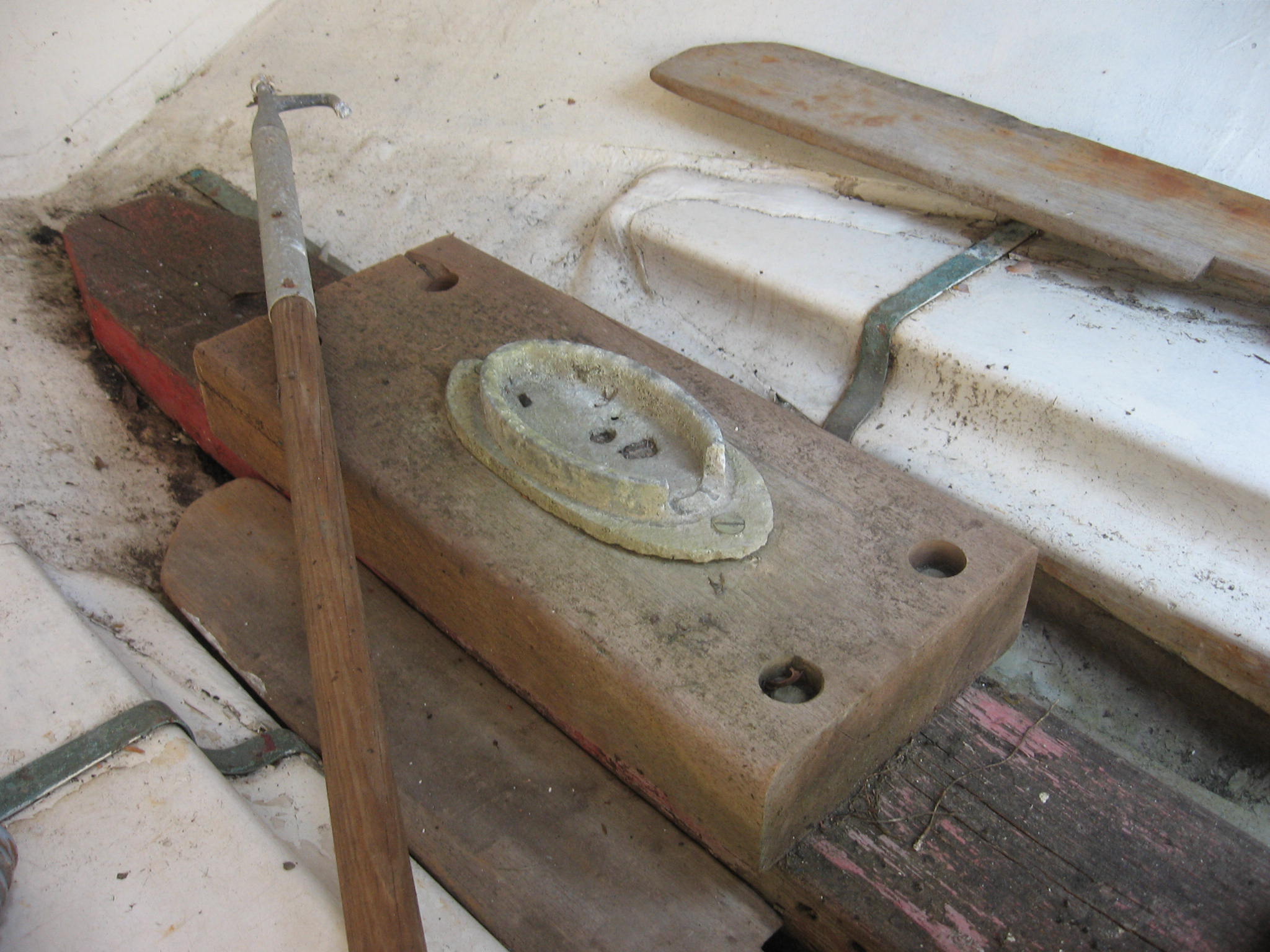

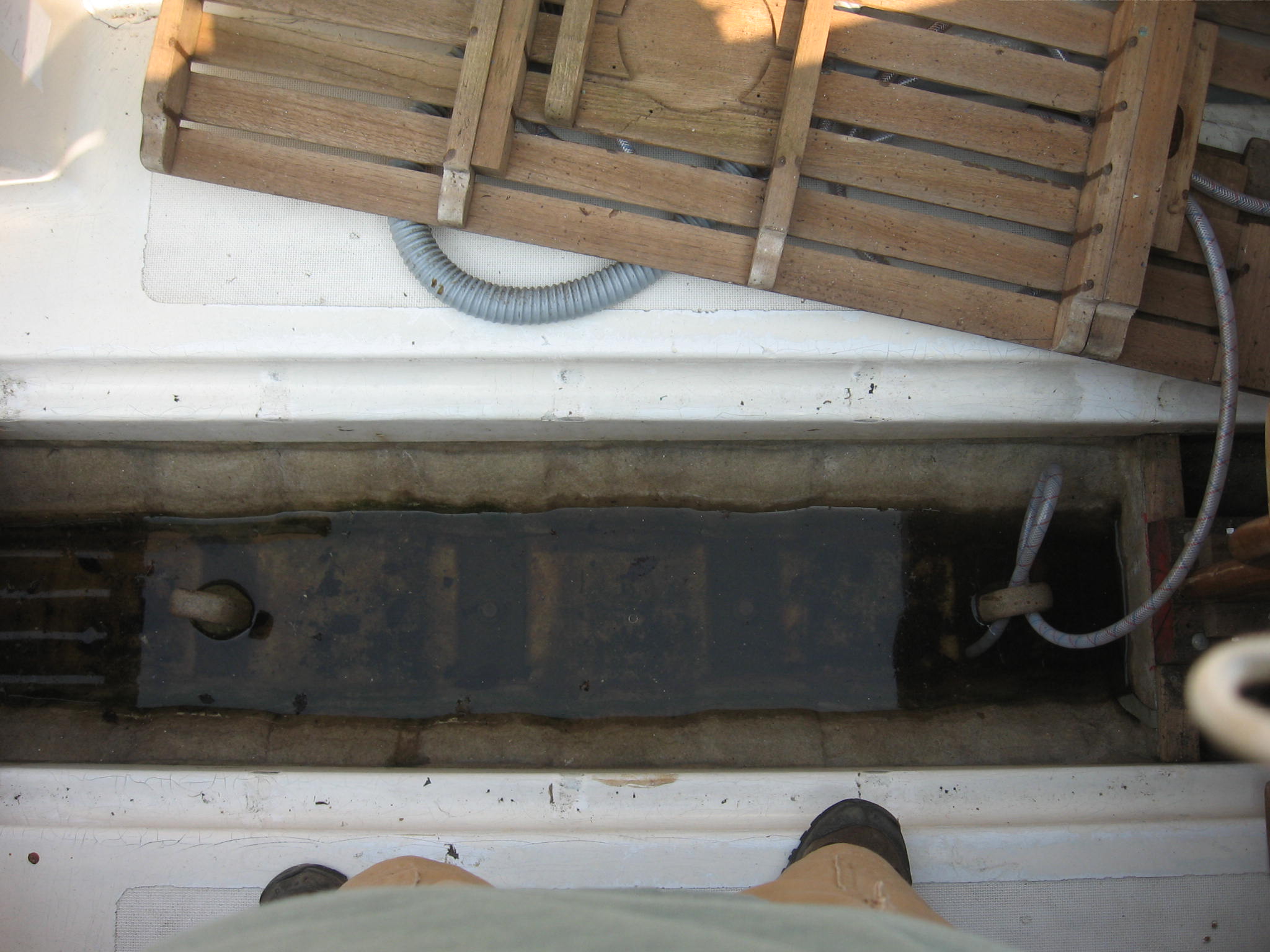

The aluminum mast step is corroded and should be replaced.  The wooden understructure seemed to be generally sound, though.

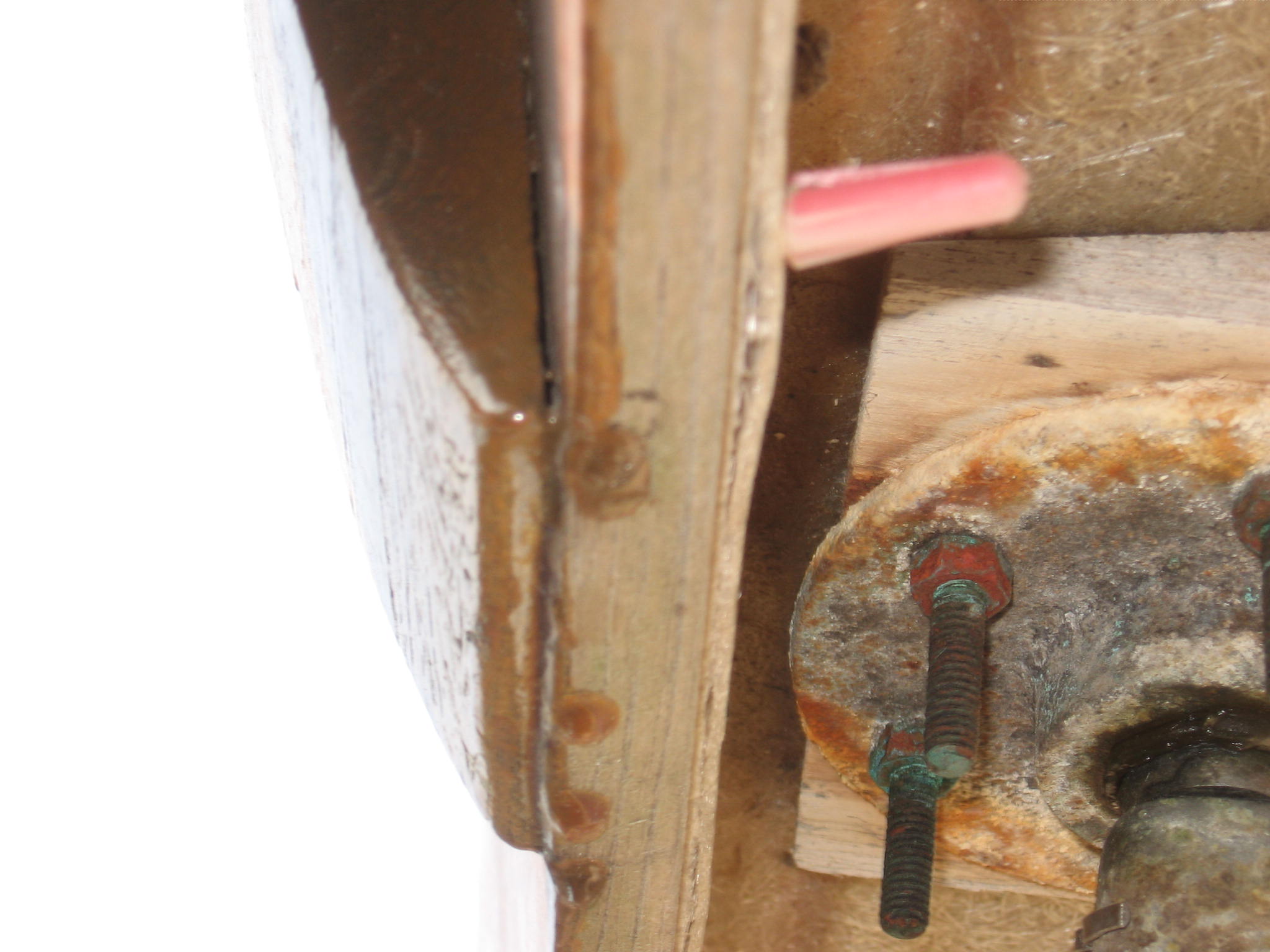

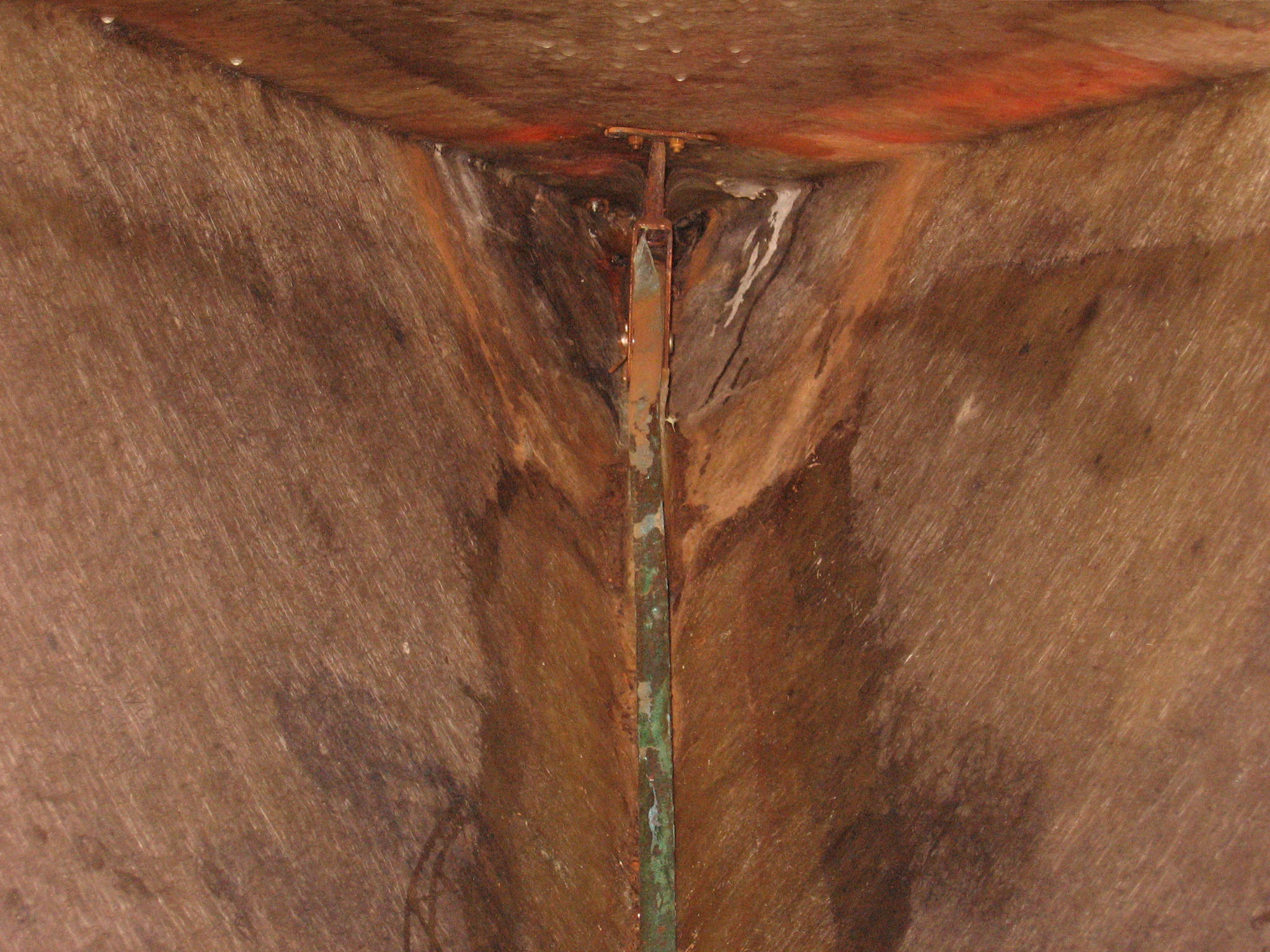

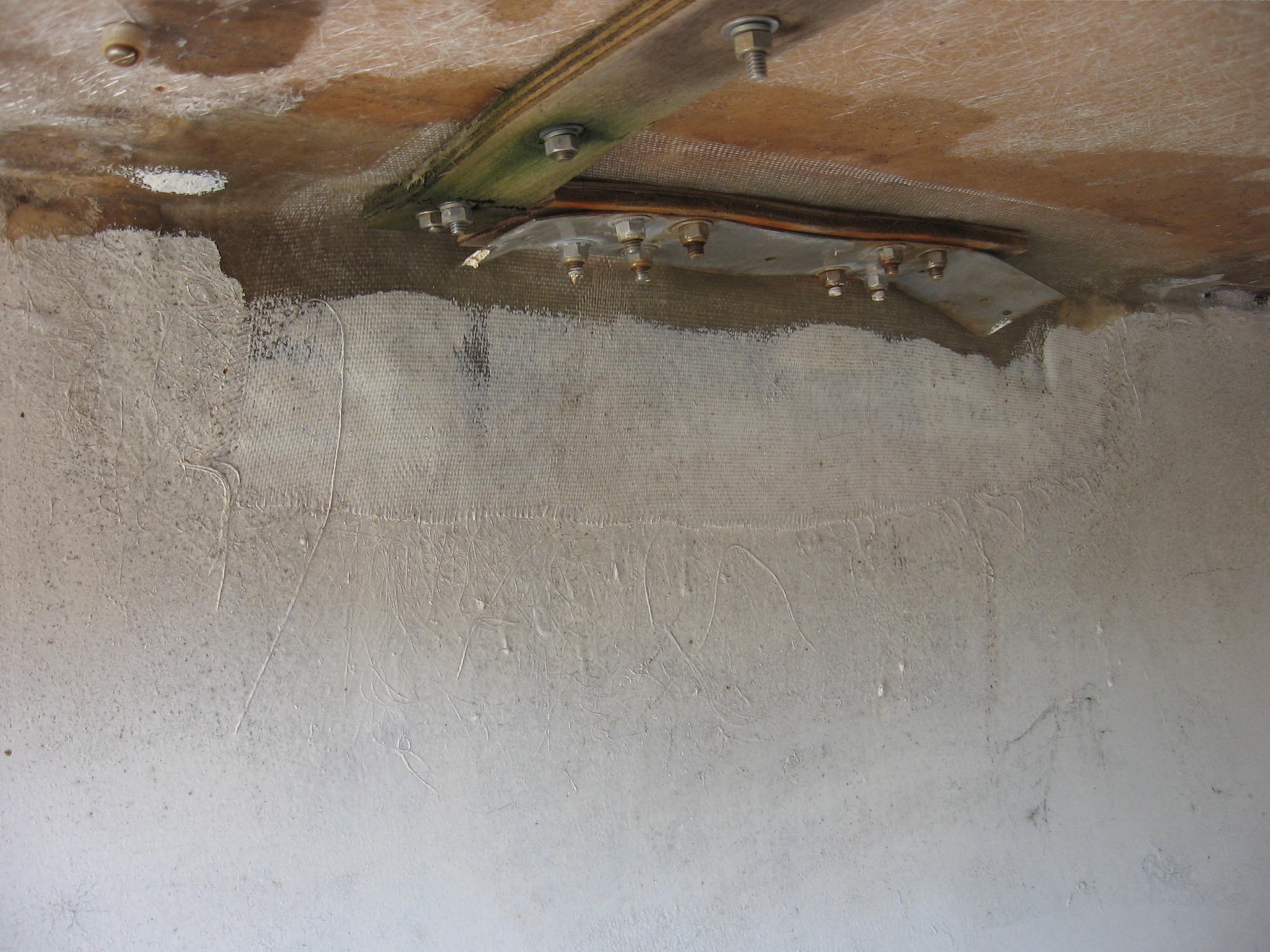

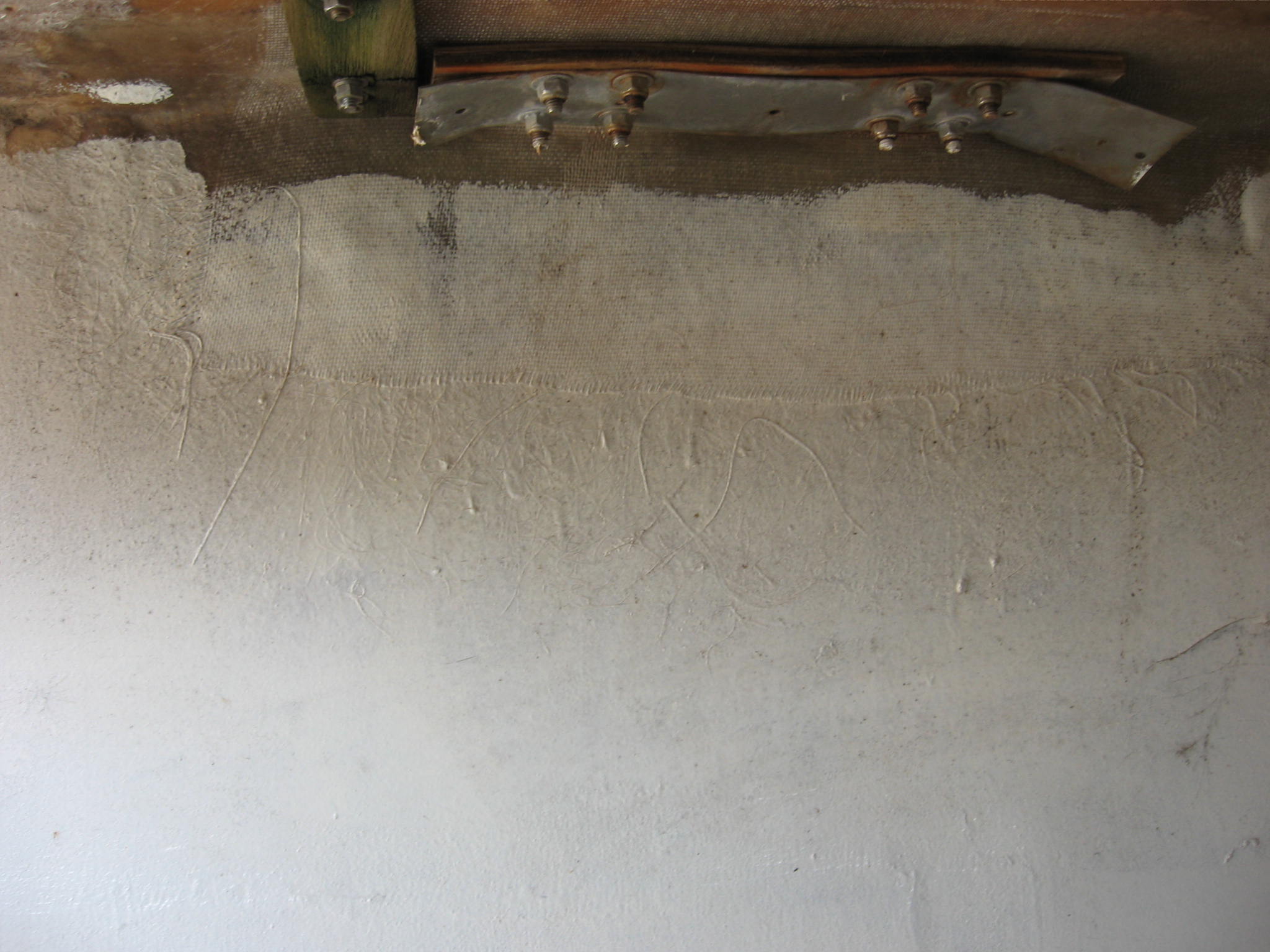

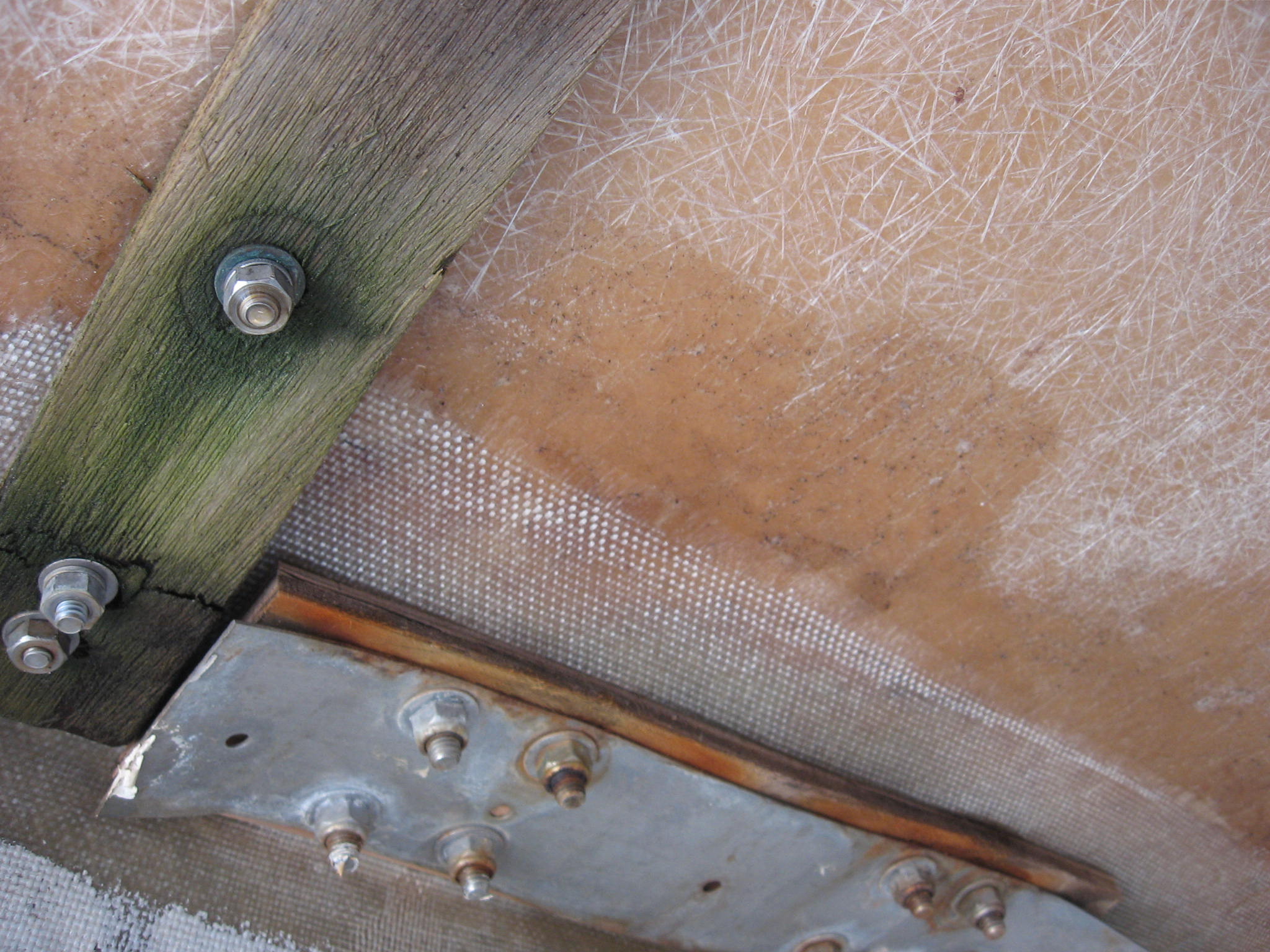

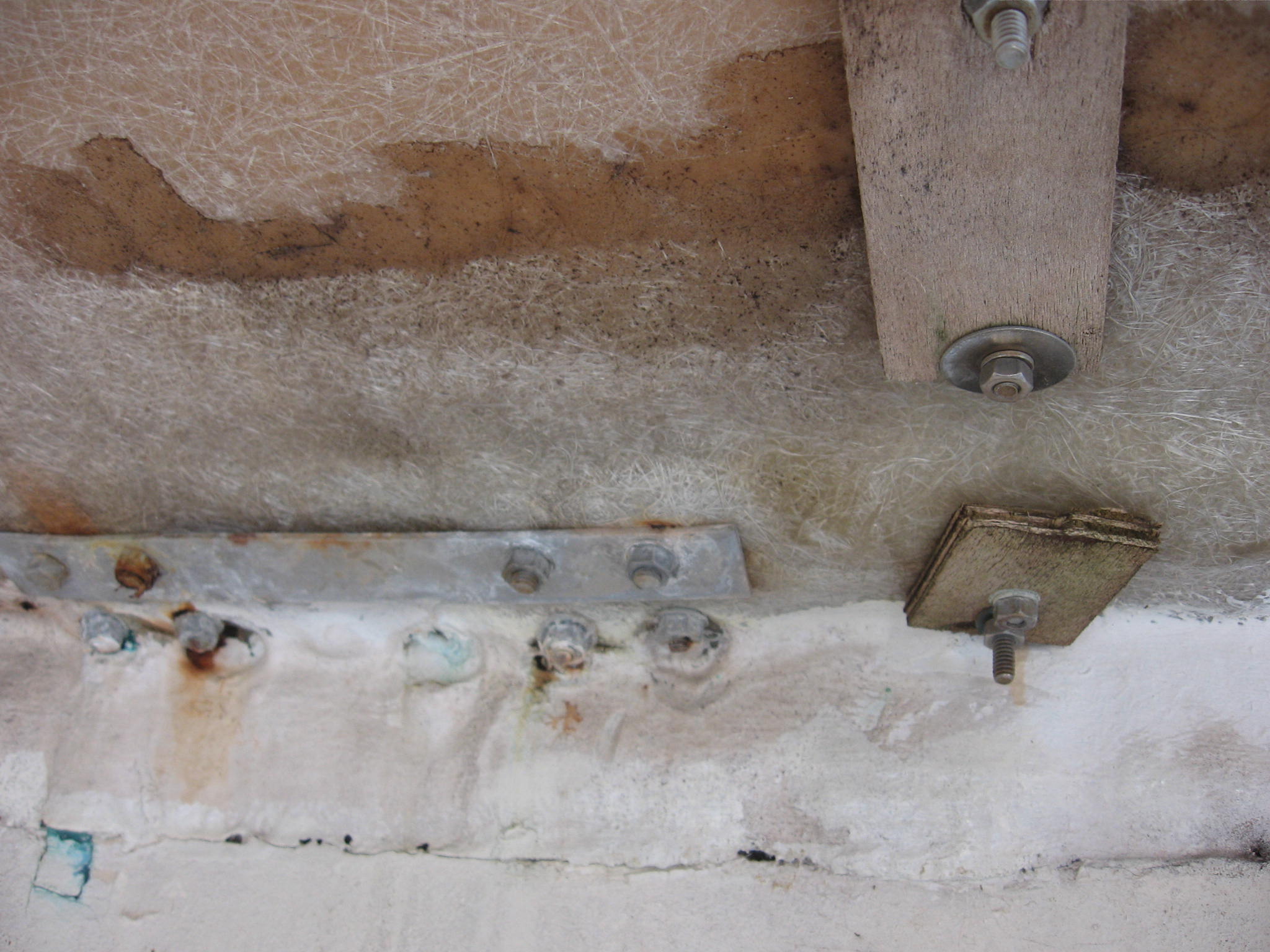

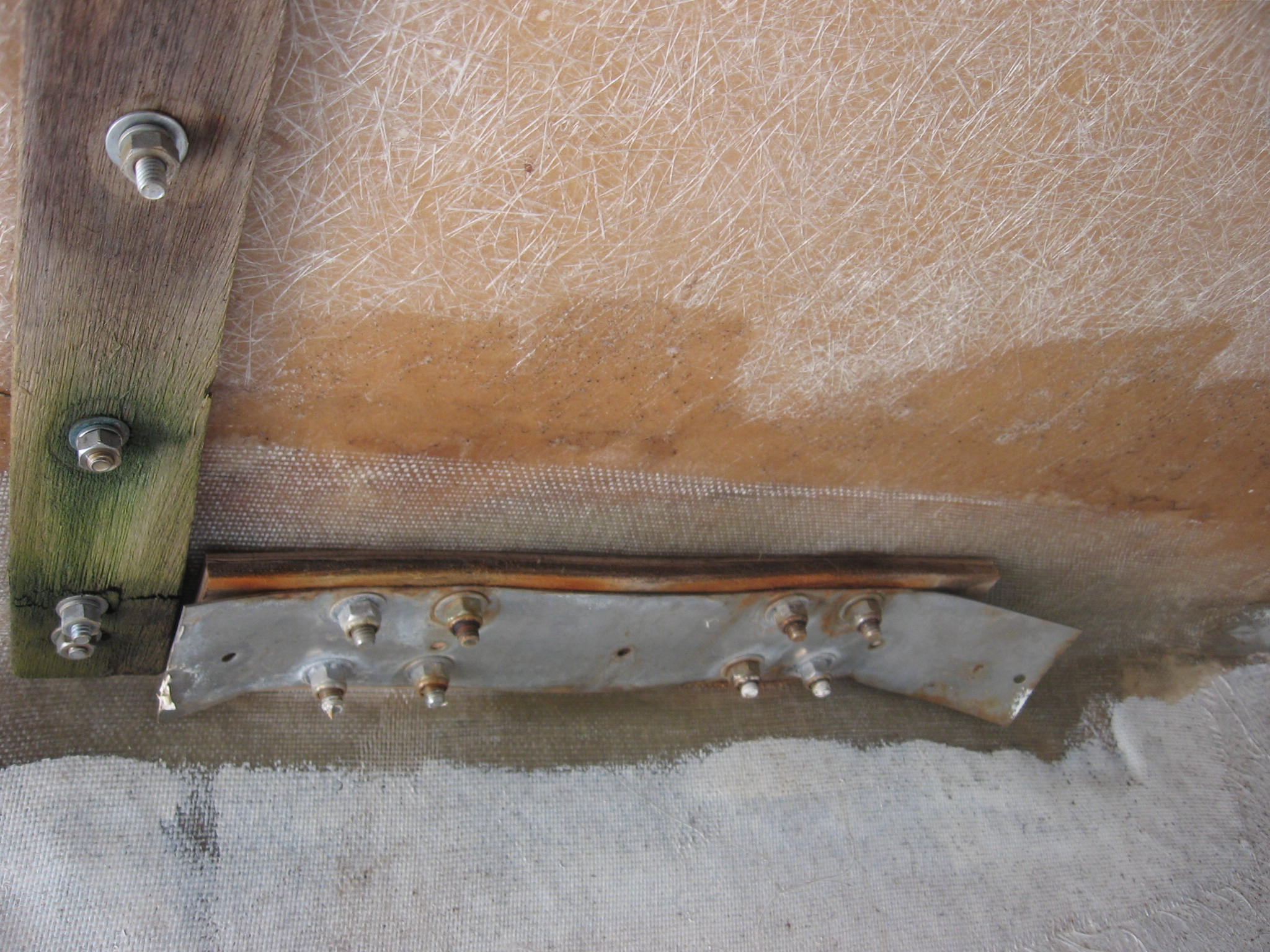

The port chainplate area has been reinforced with additional fiberglass, and features a wooden backing plate with flimsy metal overlay (not sure why).  The starboard chainplate has not been reinforced, and has an aluminum backing plate.  I'd suggest new reinforcement of both chainplates, along with stronger and larger backing plates, mainly because it'd be easy to do.

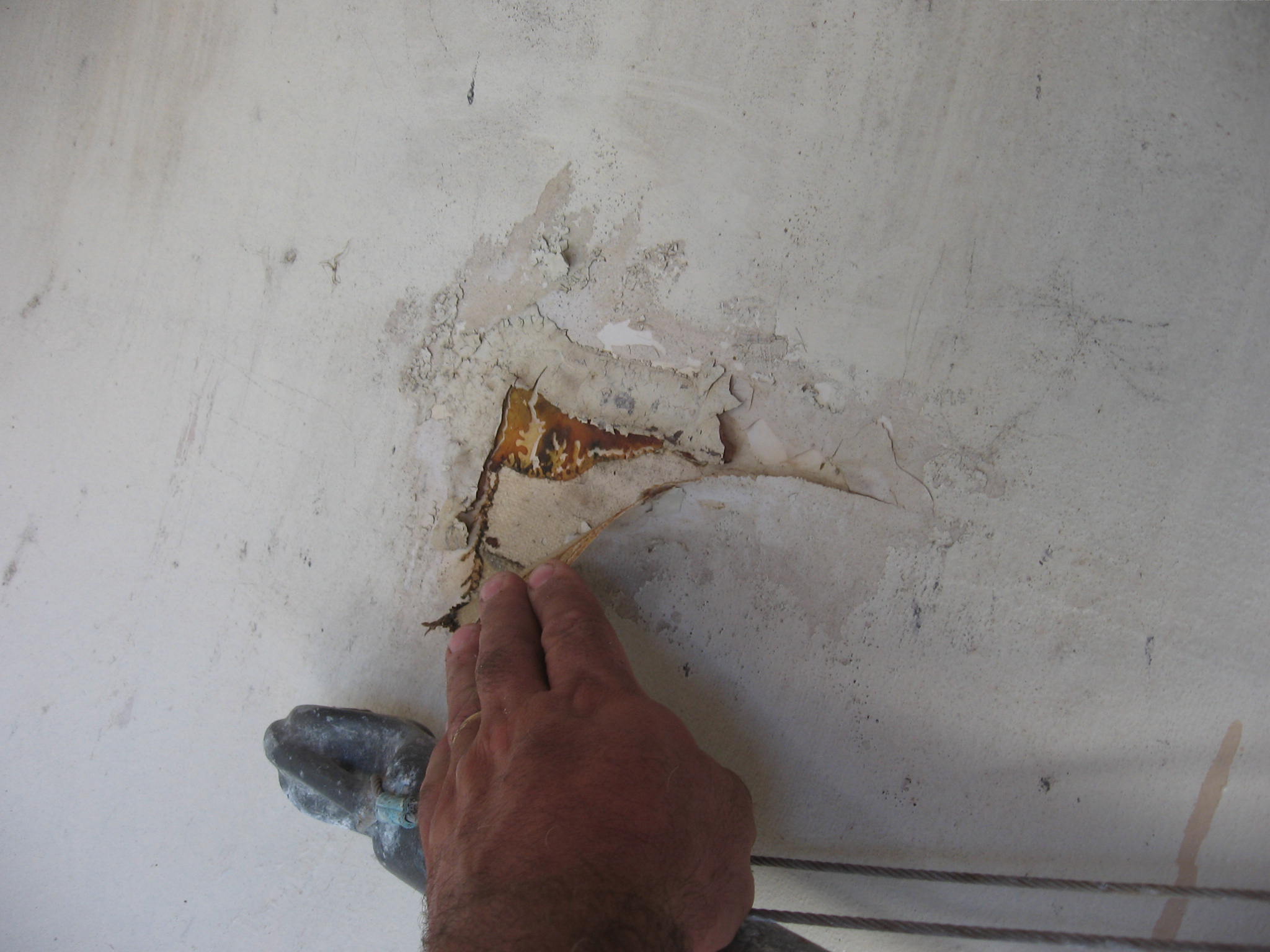

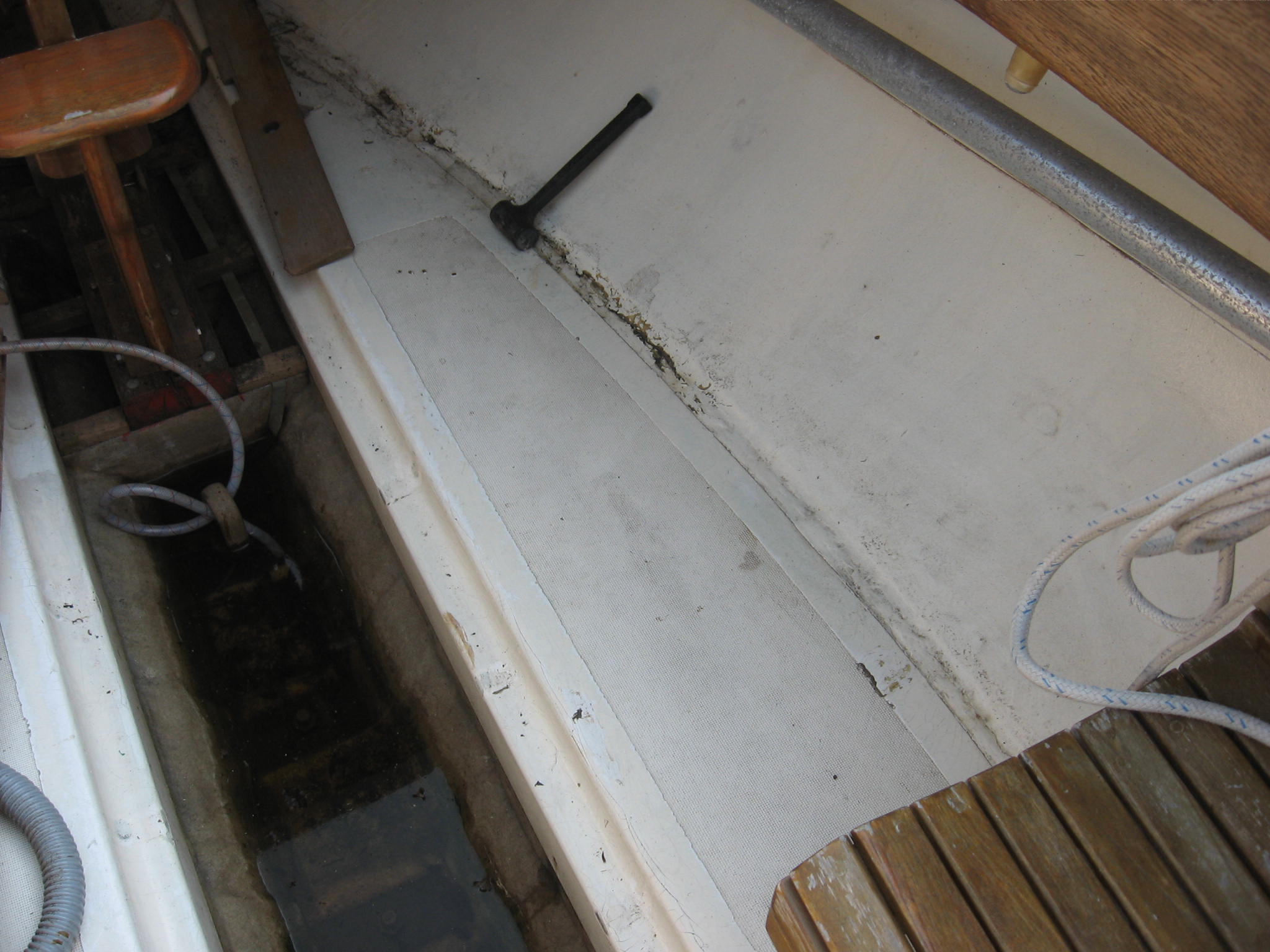

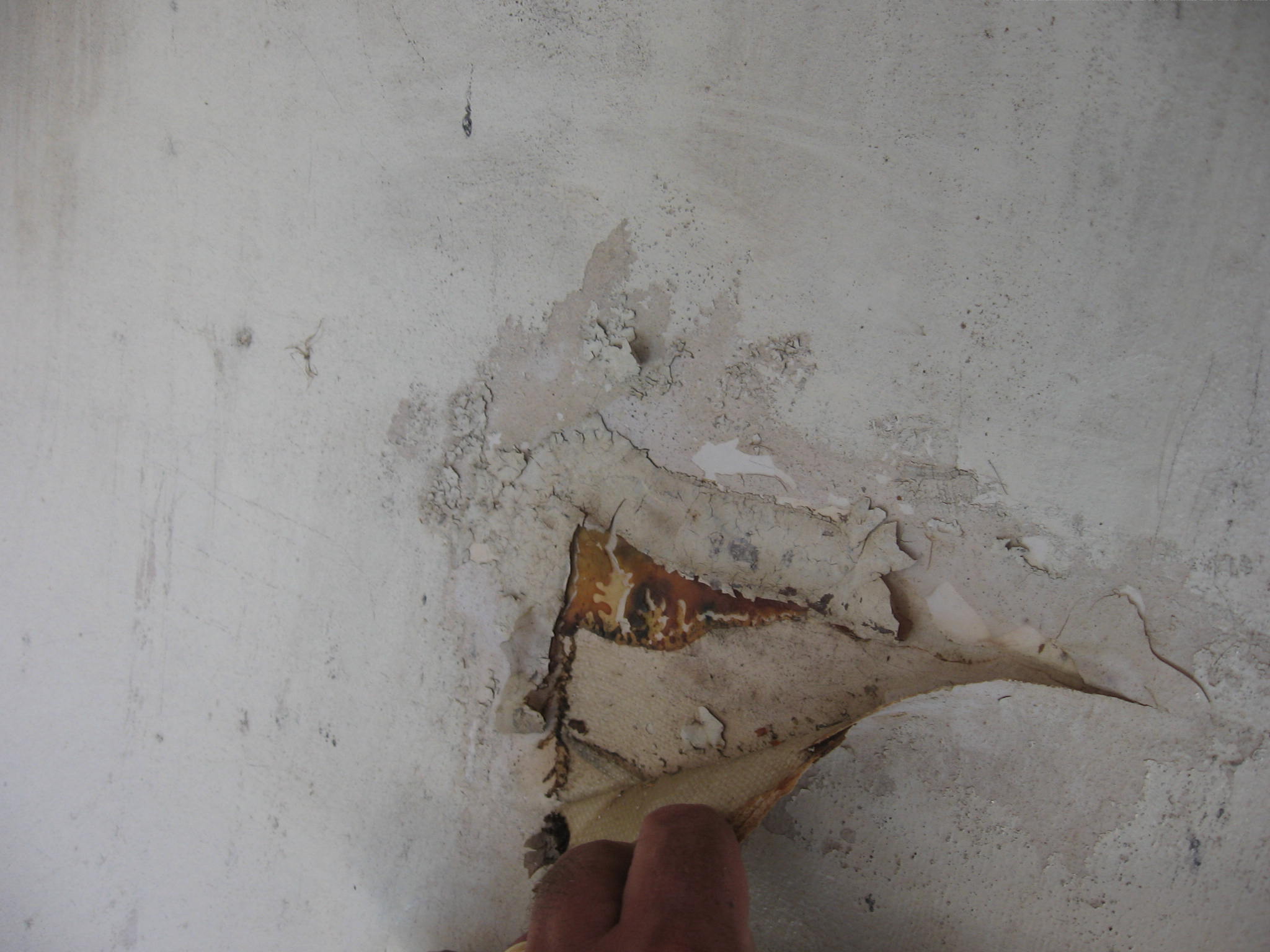

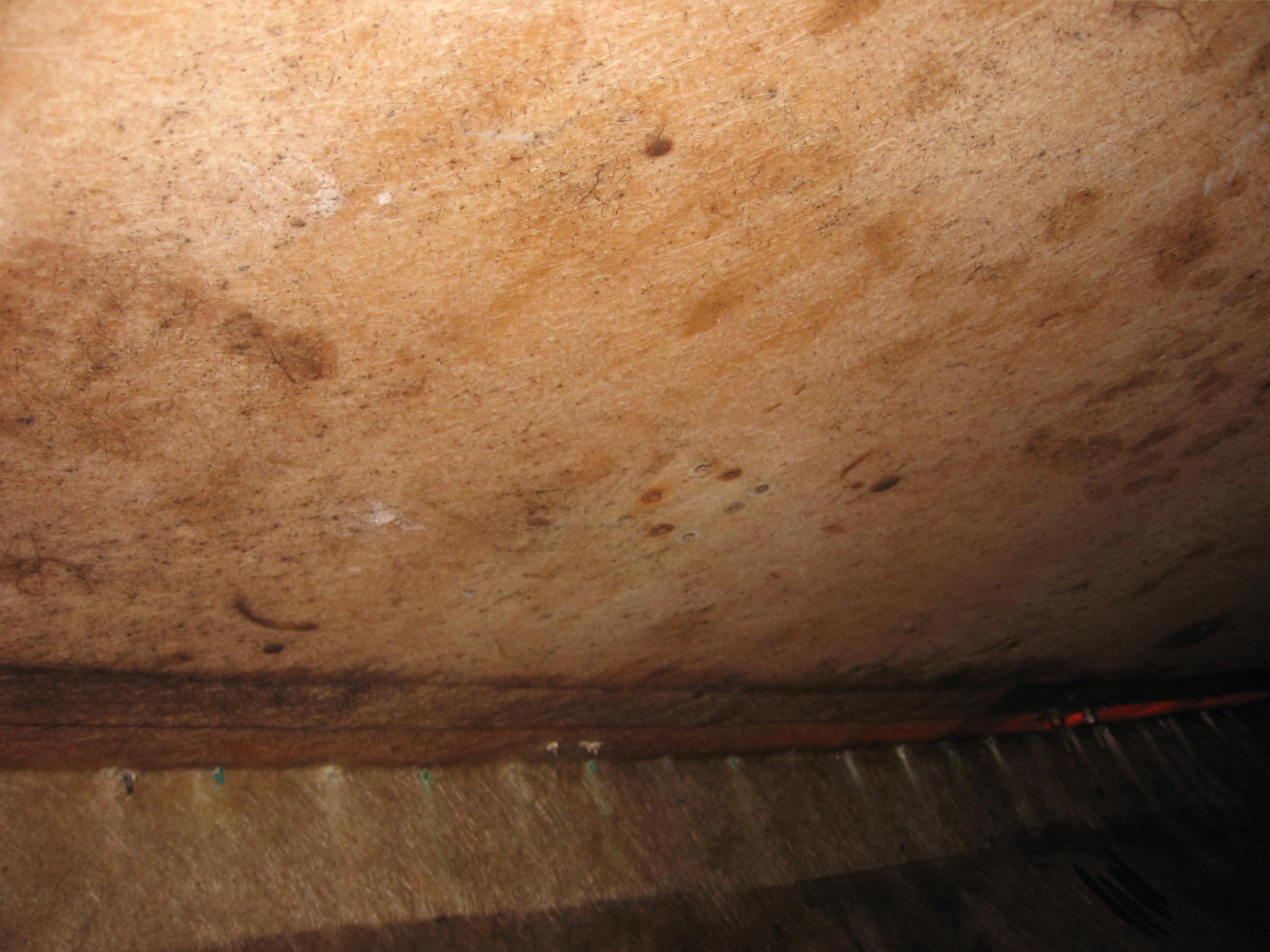

The flimsy liner that's bonded to the inside of the hull in the cockpit areas was torn and damaged on the starboard side, generally beneath the chainplate.  The liner is nothing special, and it'd be nice to remove it wherever feasible anyway.

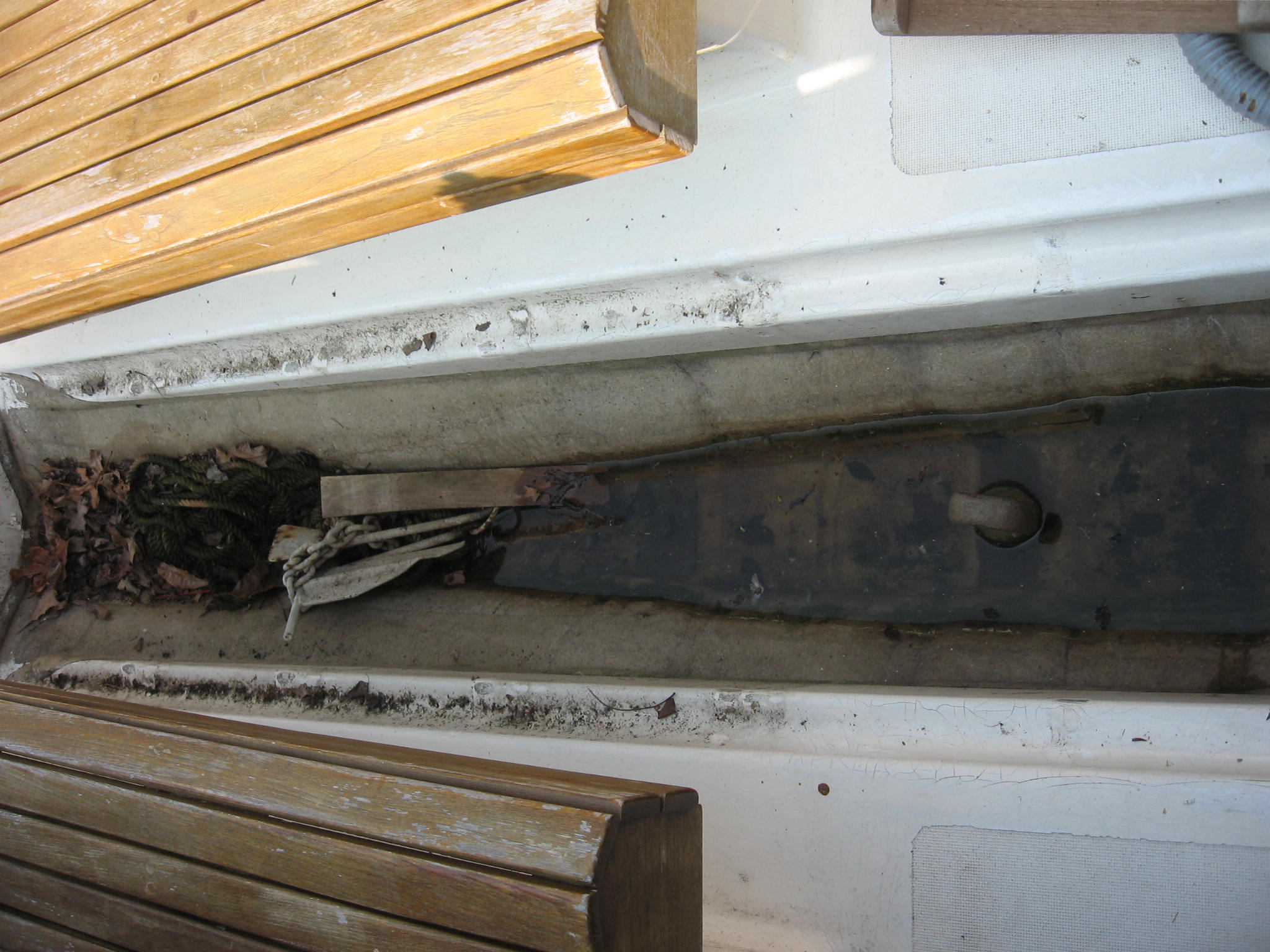

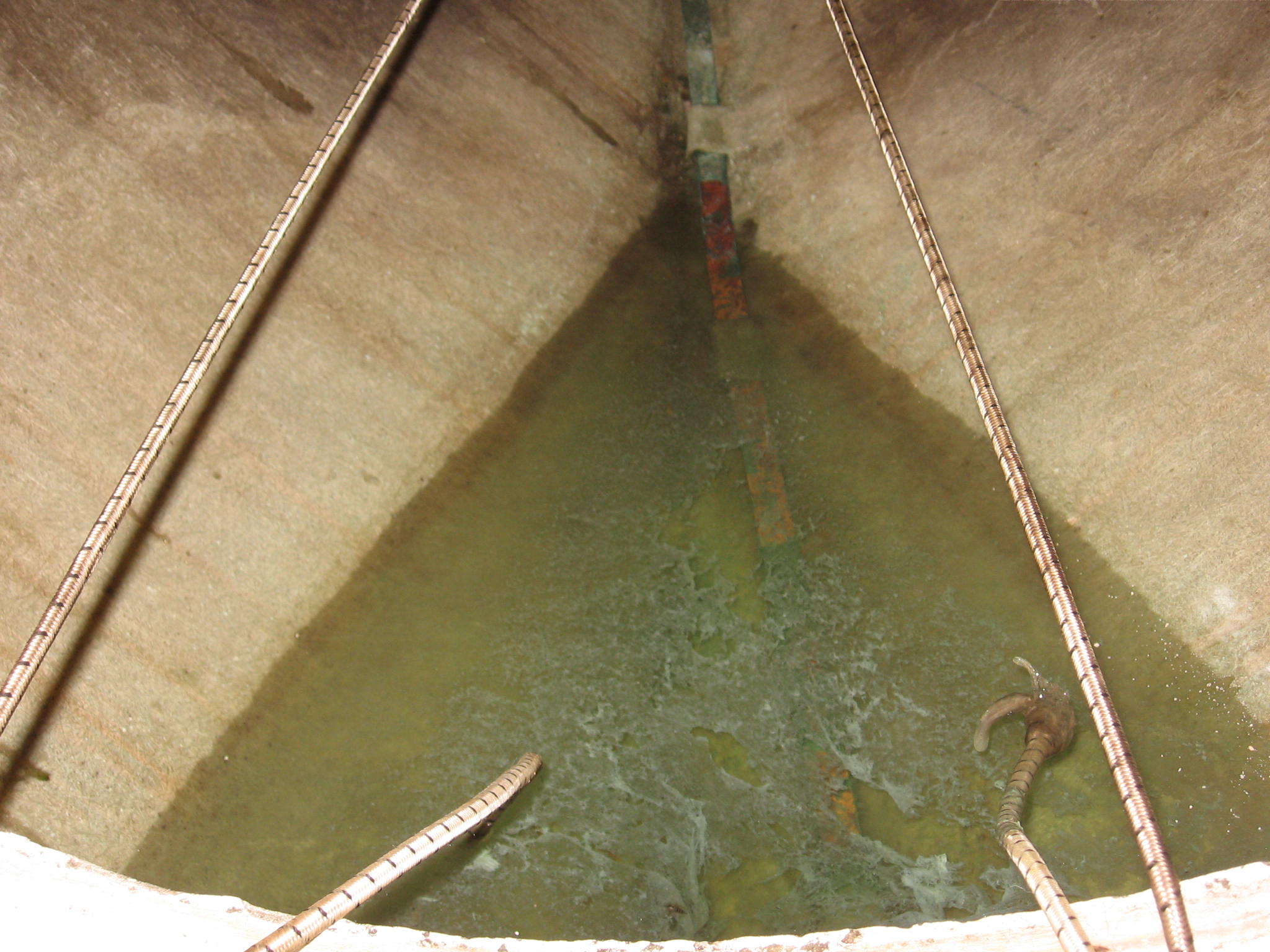

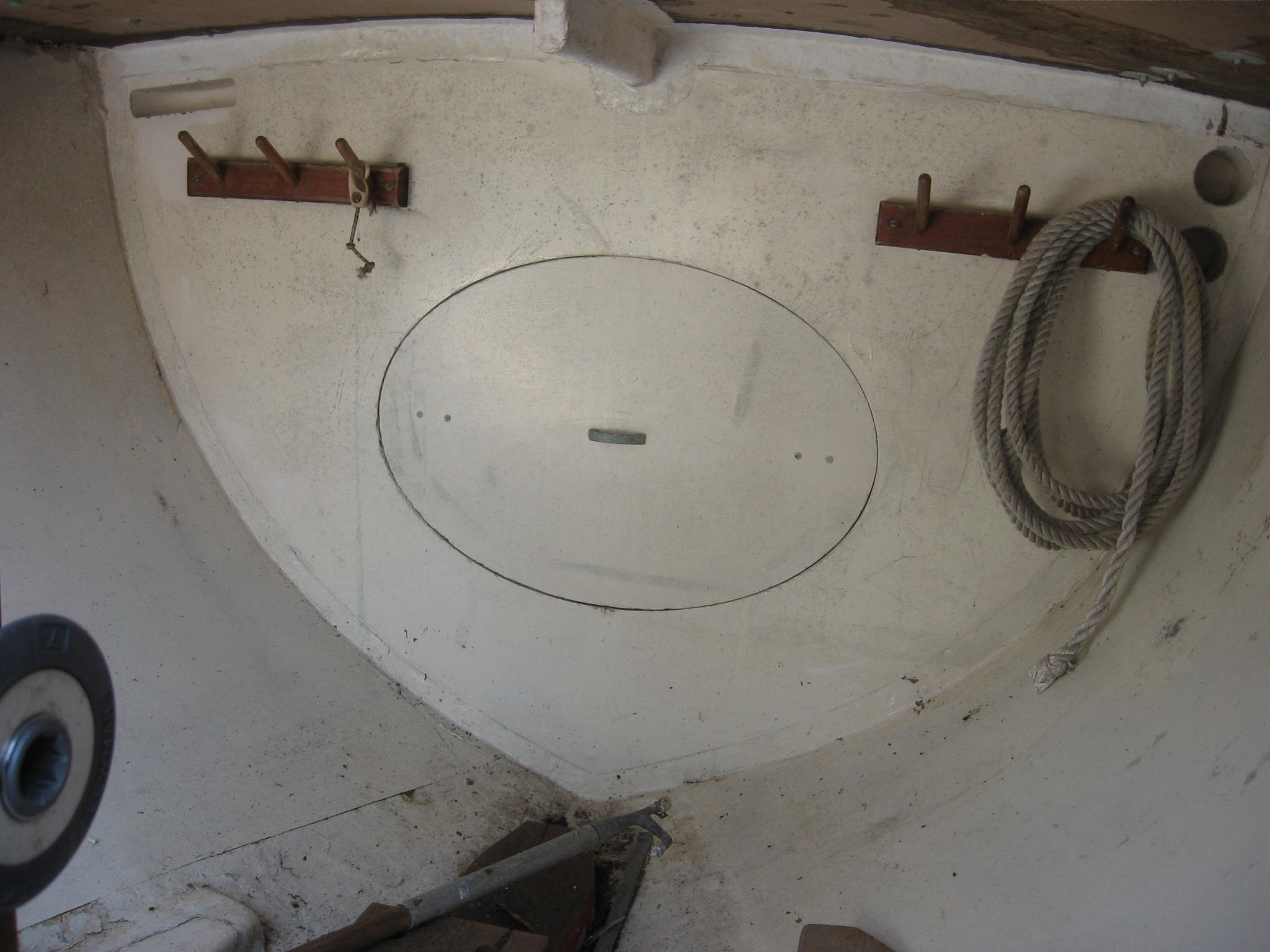

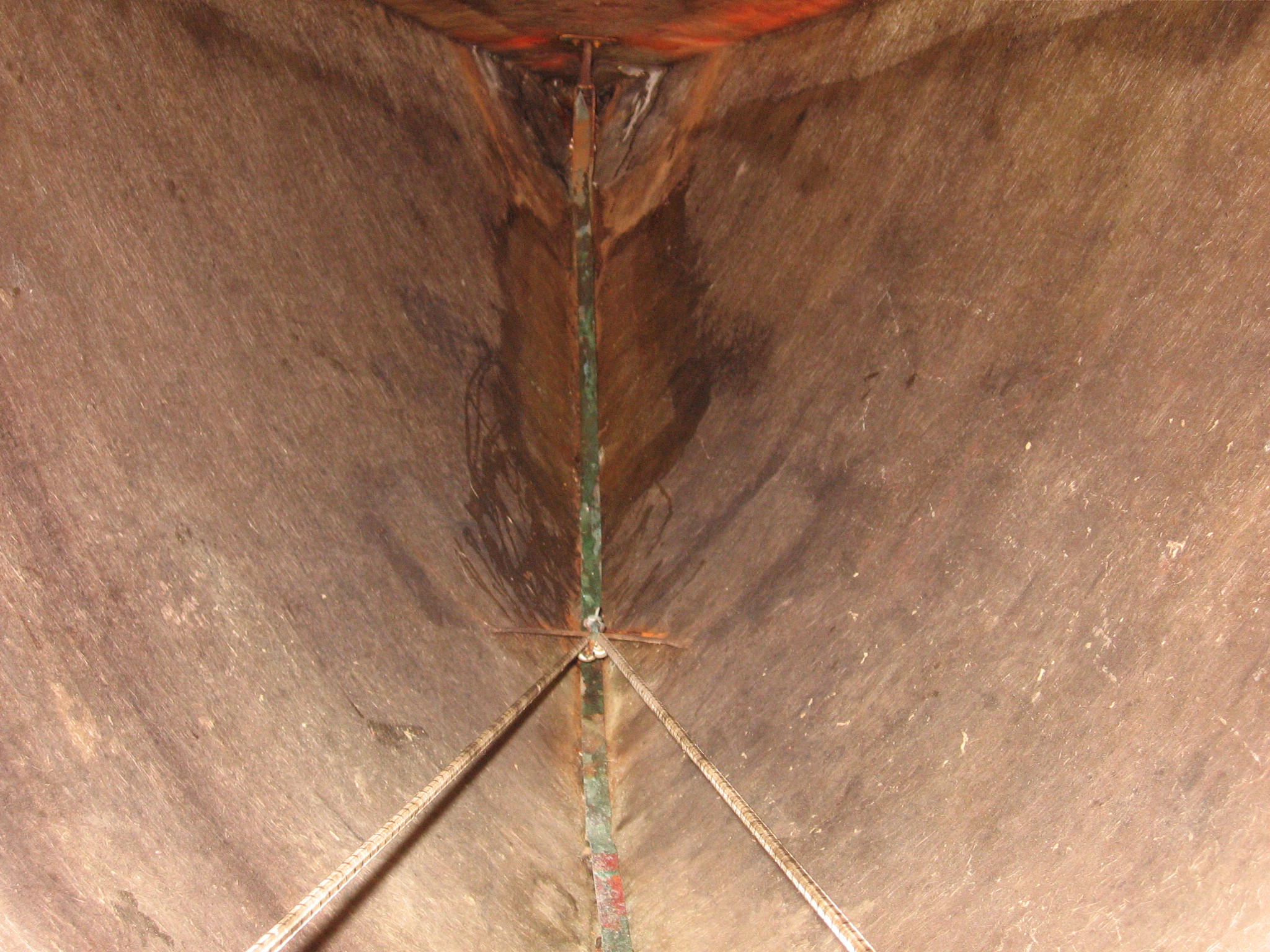

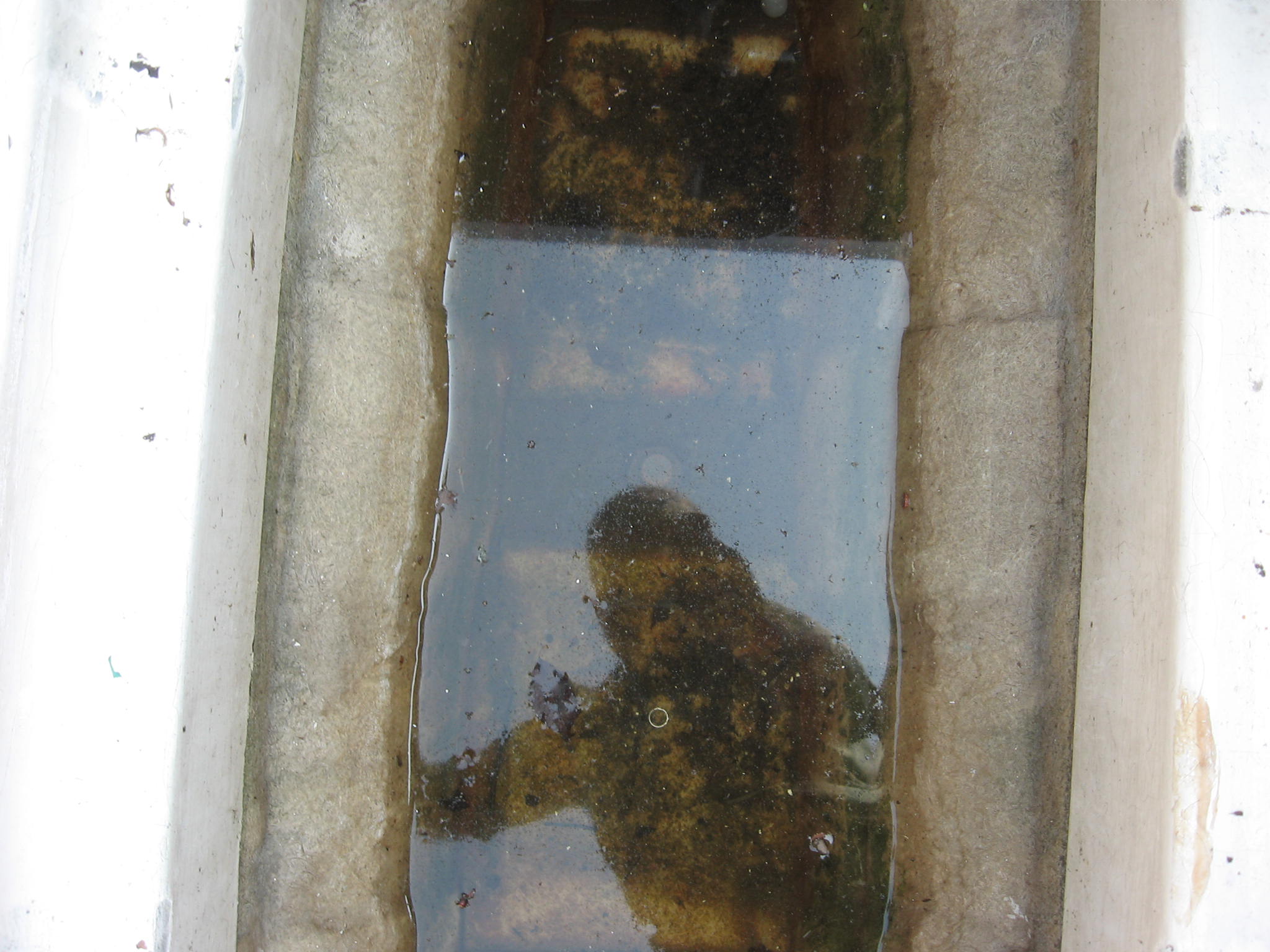

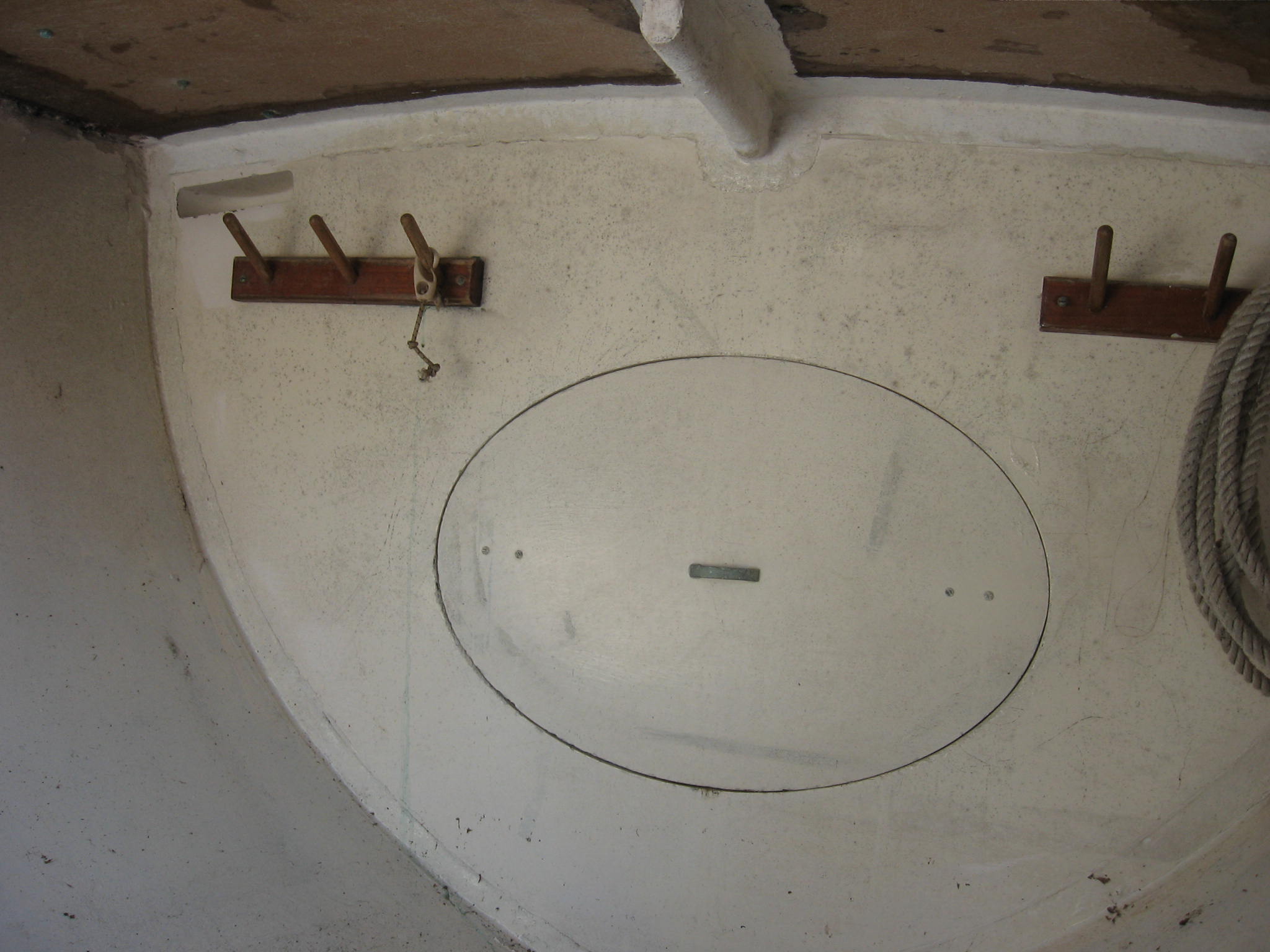

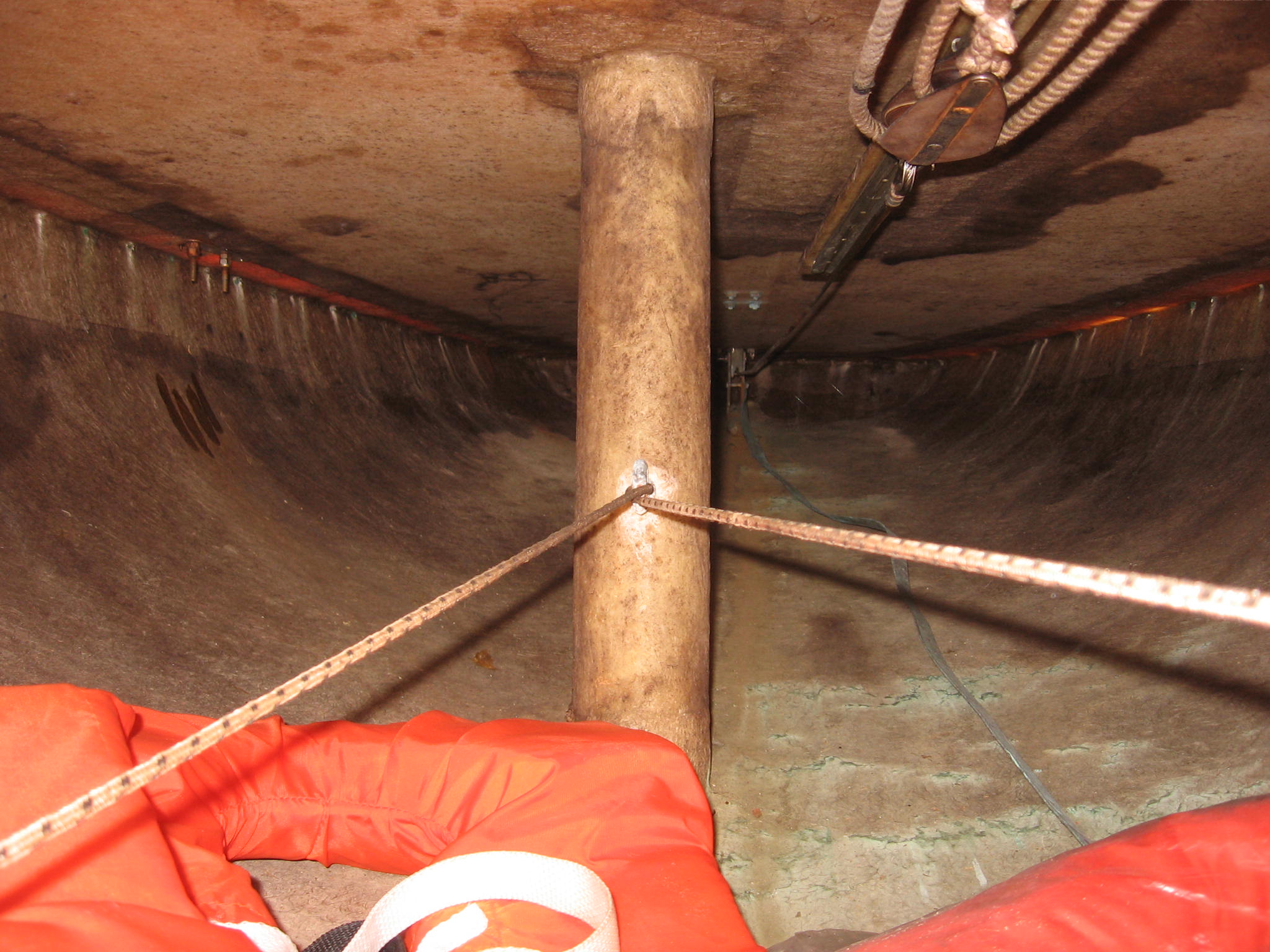

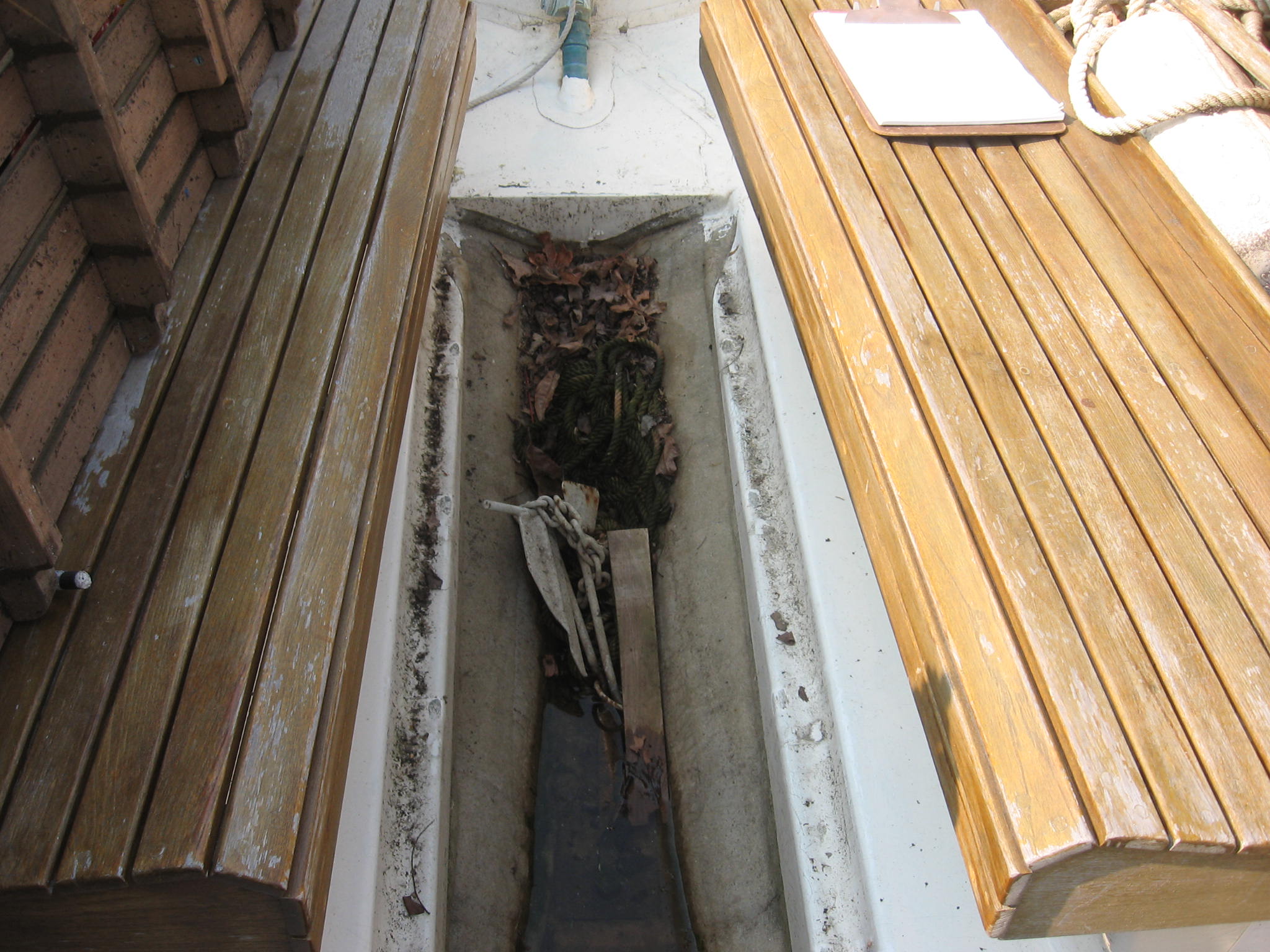

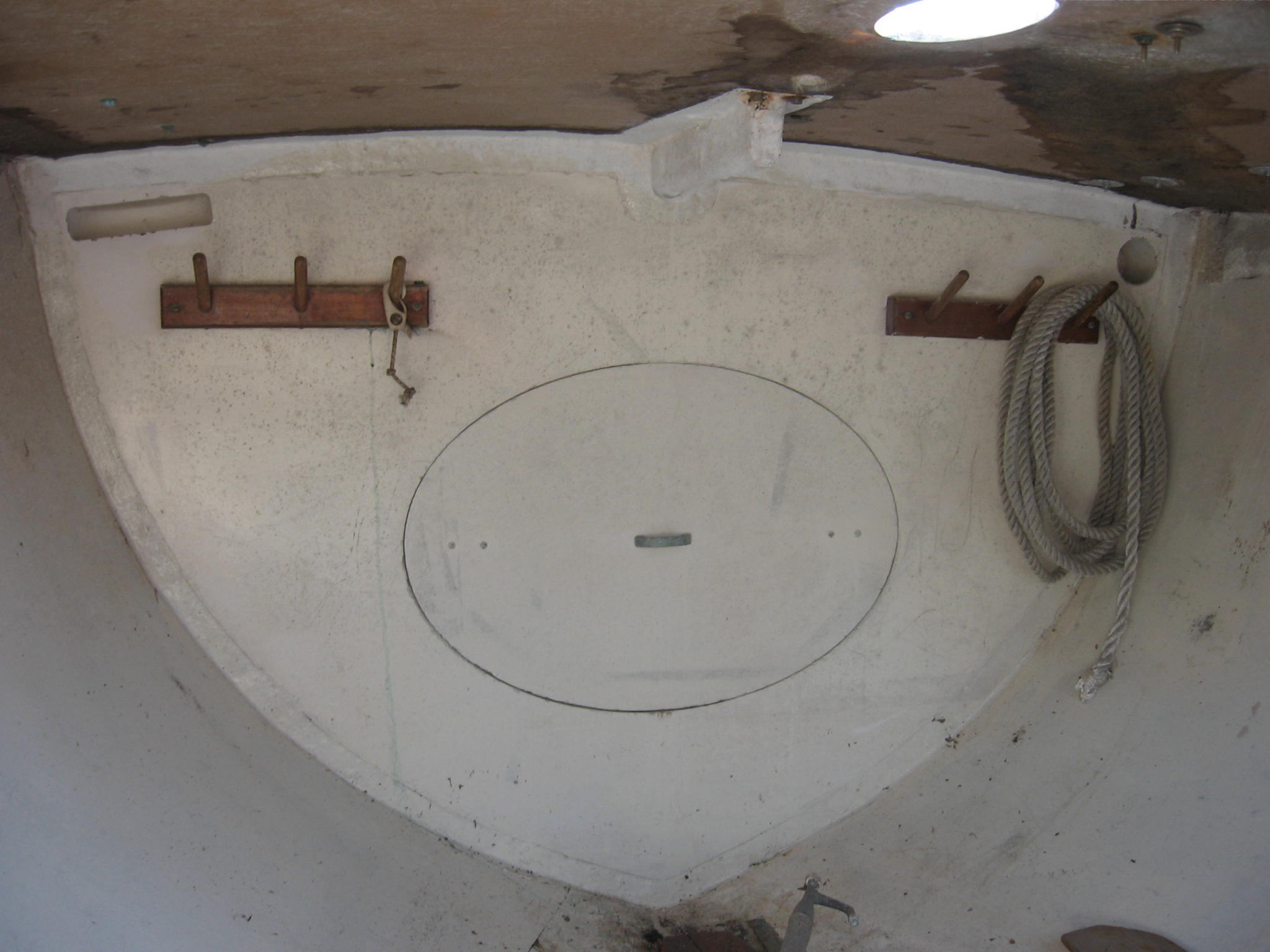

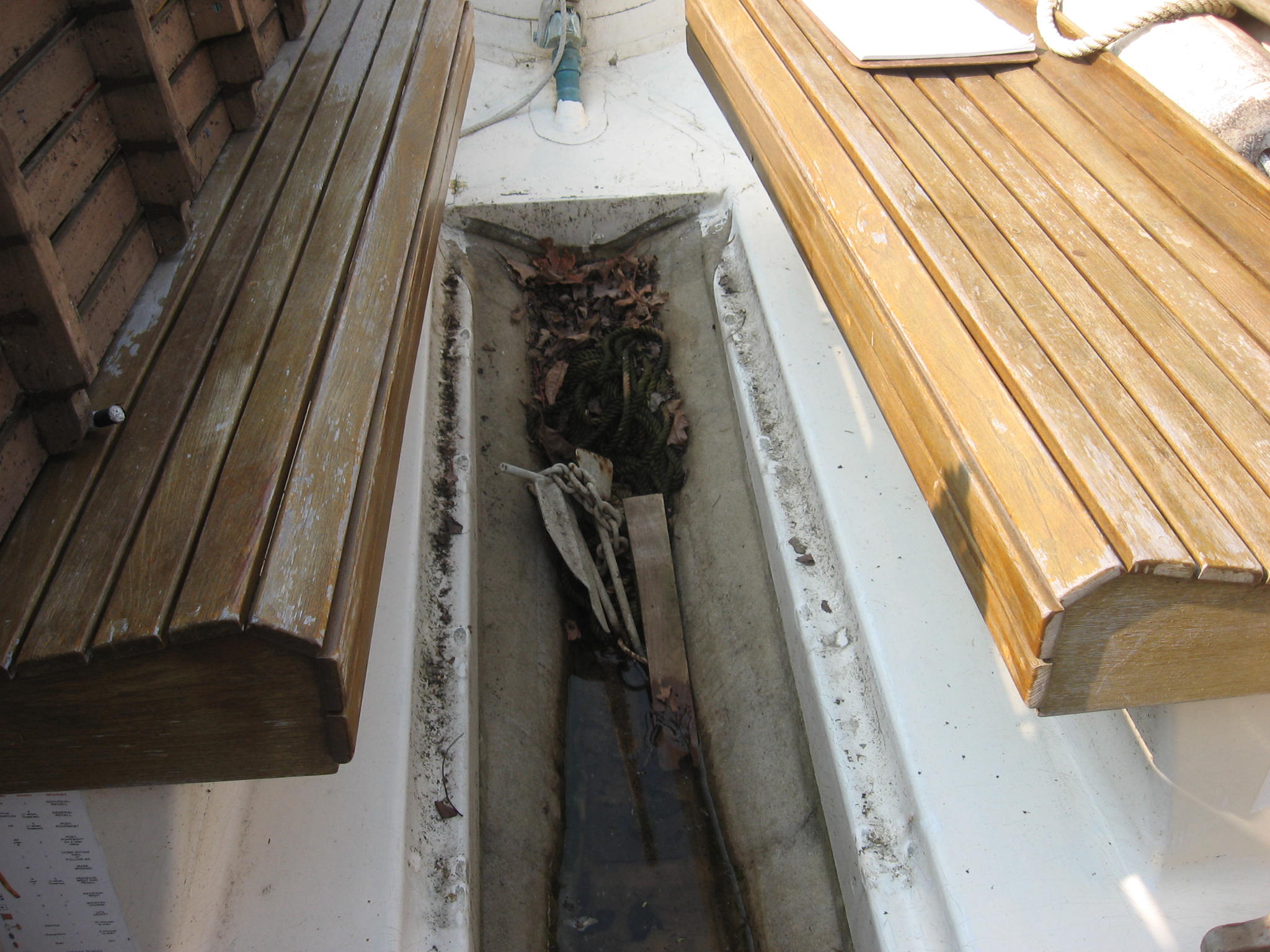

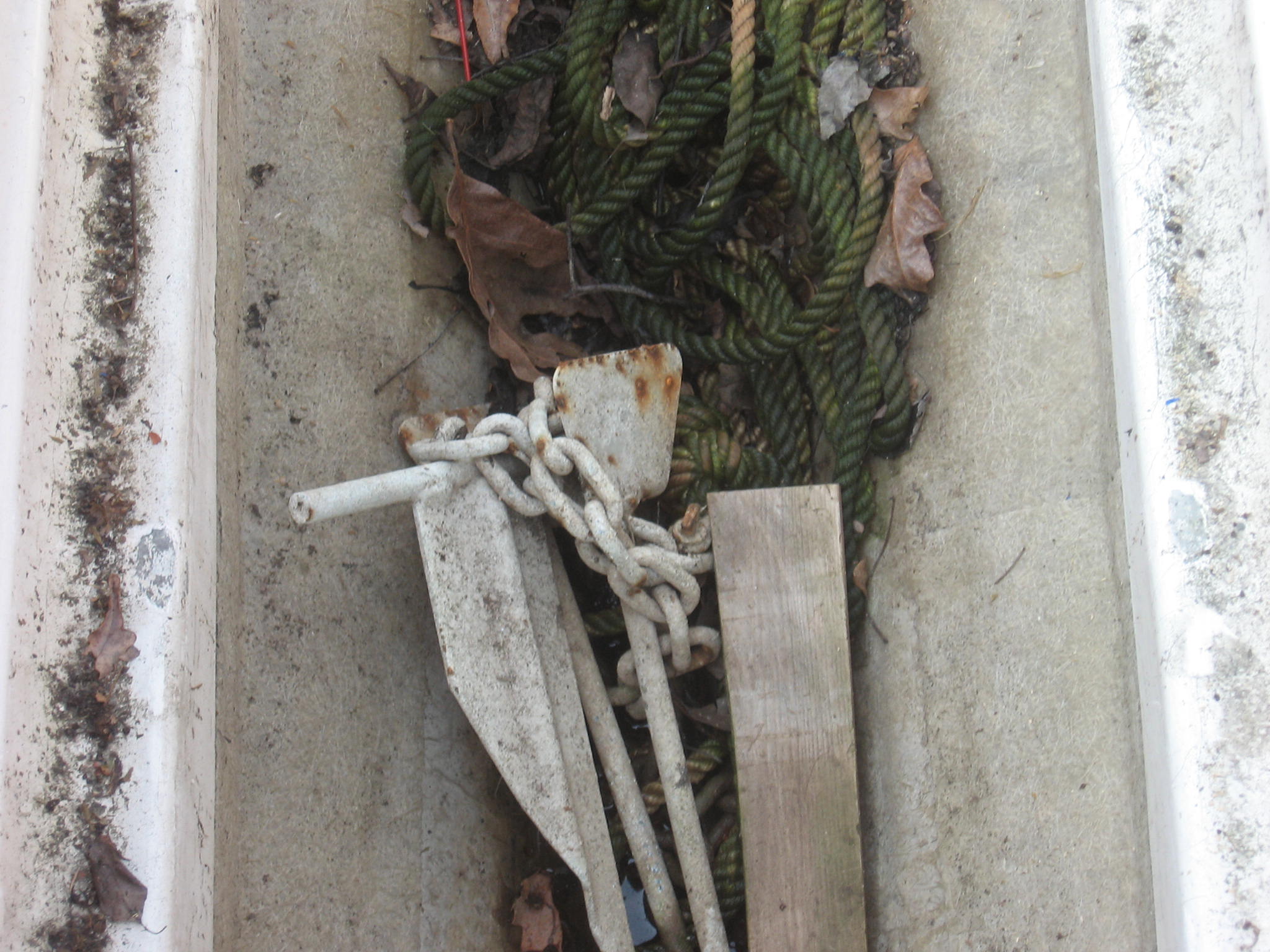

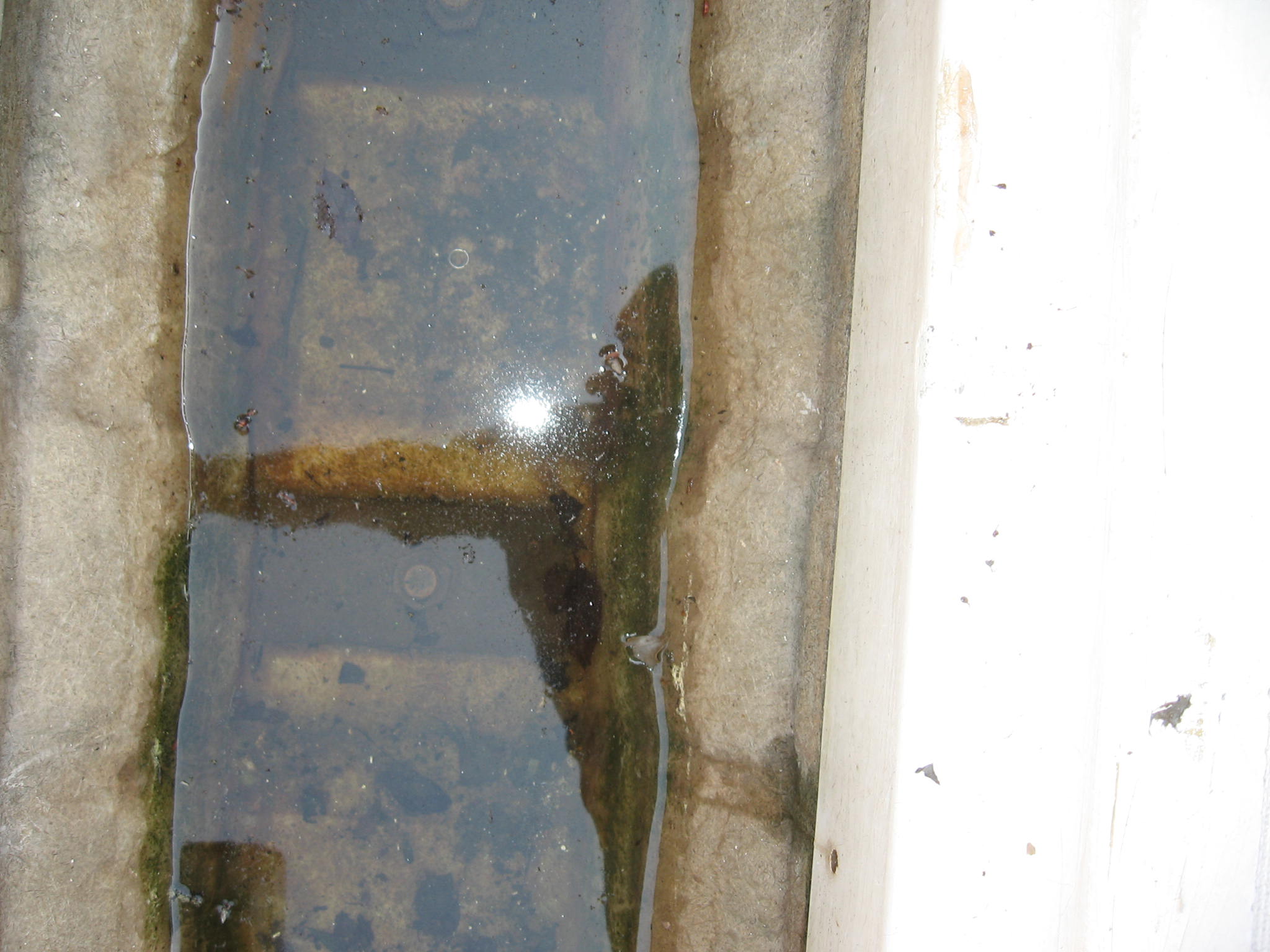

The bilge contained some water, but to the extent visible the structure appeared sound.  The forward compartment, forward of the bulkhead, contained some water as seen in the photo.  Otherwise, both the forward and aft compartments were unremarkable, with no particular issues to note.

Again, if you're wondering what you're looking at in a specific photo, please let me know and I will explain what I was hoping to capture with the photo.
