Inspection Notes:  Shields Class Hull # 9 Bolero

Inspection Date:  June 27, 2007
Inspection Location:  Masons Island Marina, Mystic, CT

The Hull (Topsides) | The Hull (Bottom) | The Deck | The Interior | Rigging, Sails, and Equipment



The Hull:  Bottom

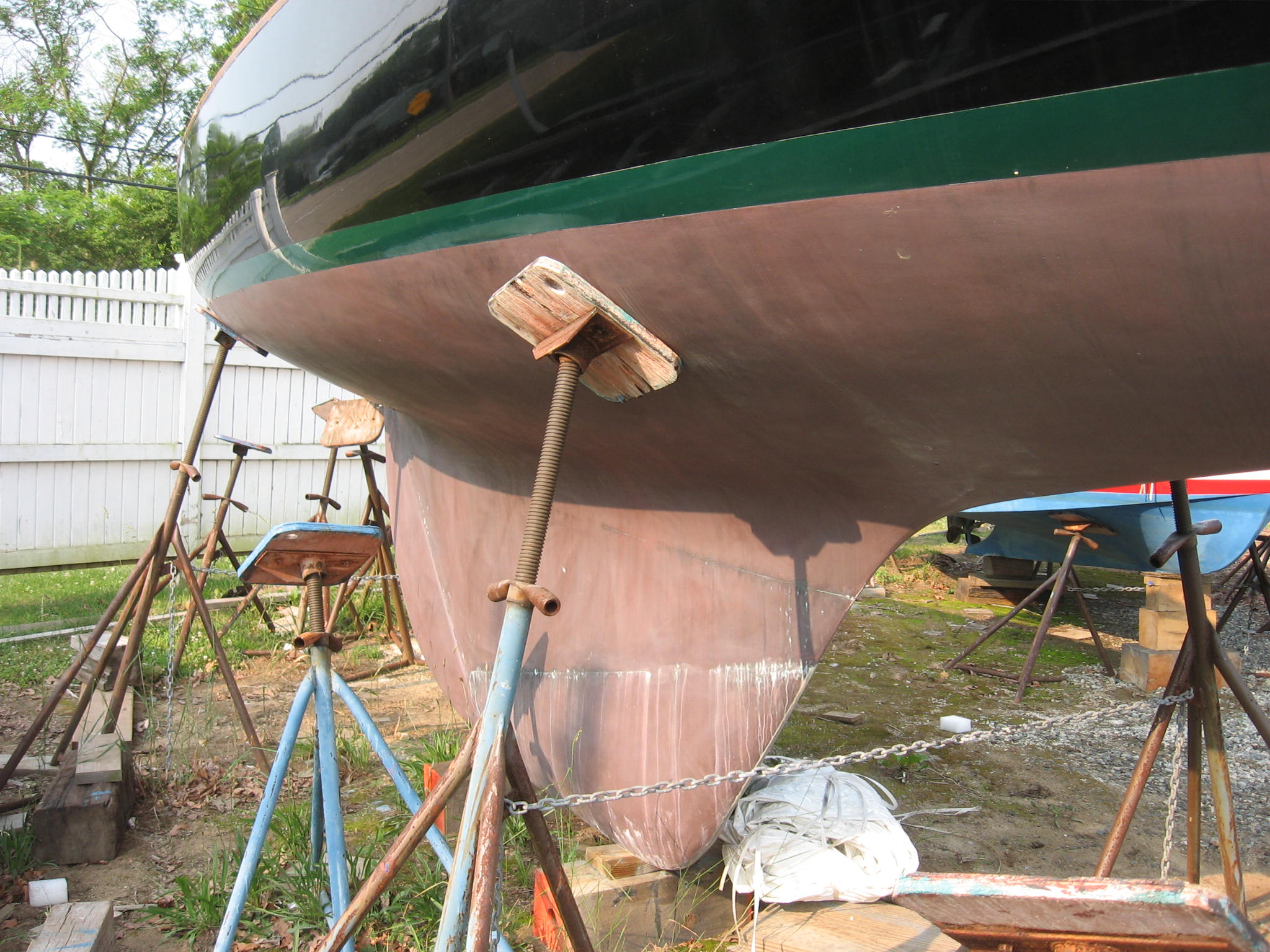

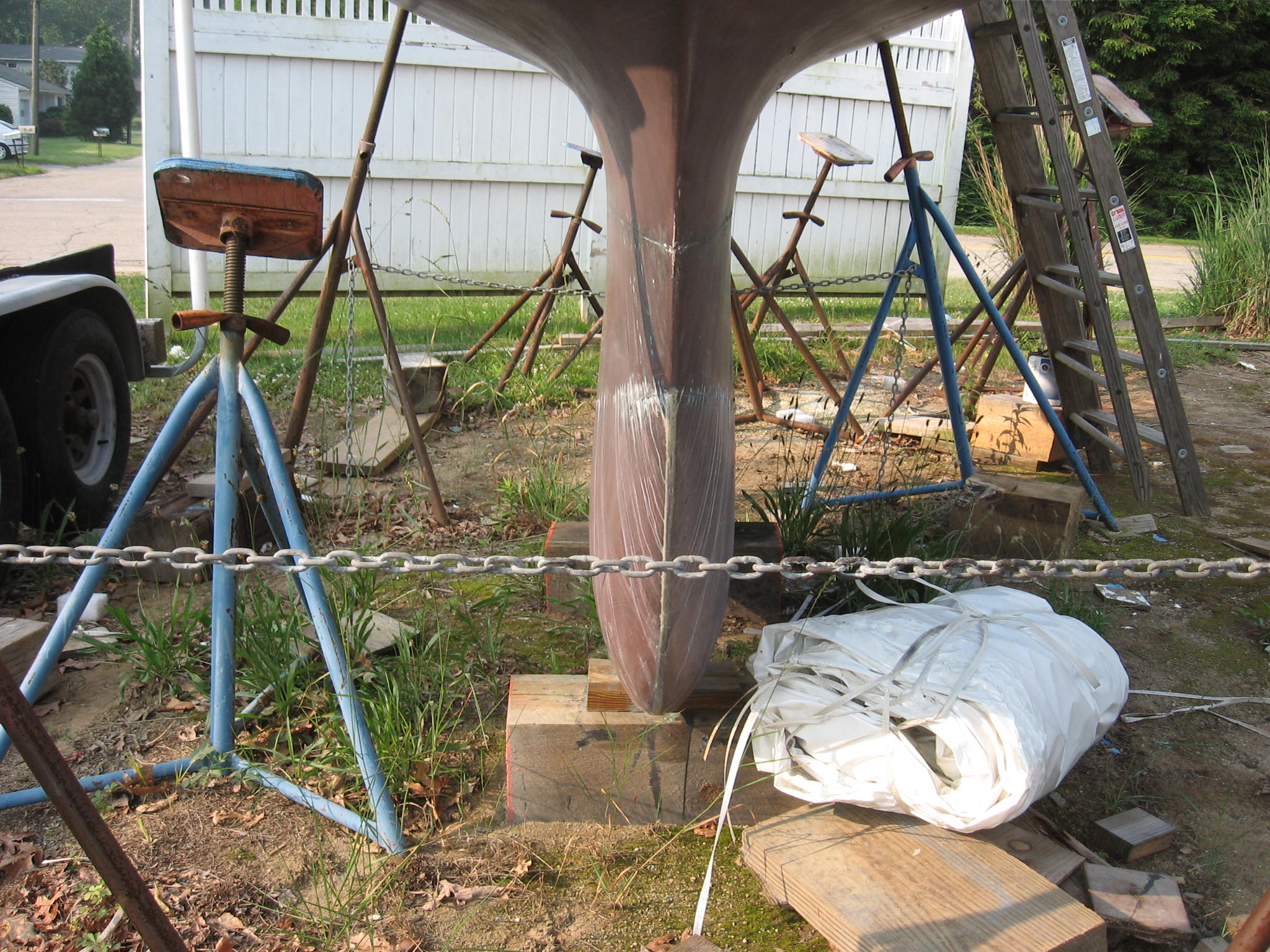

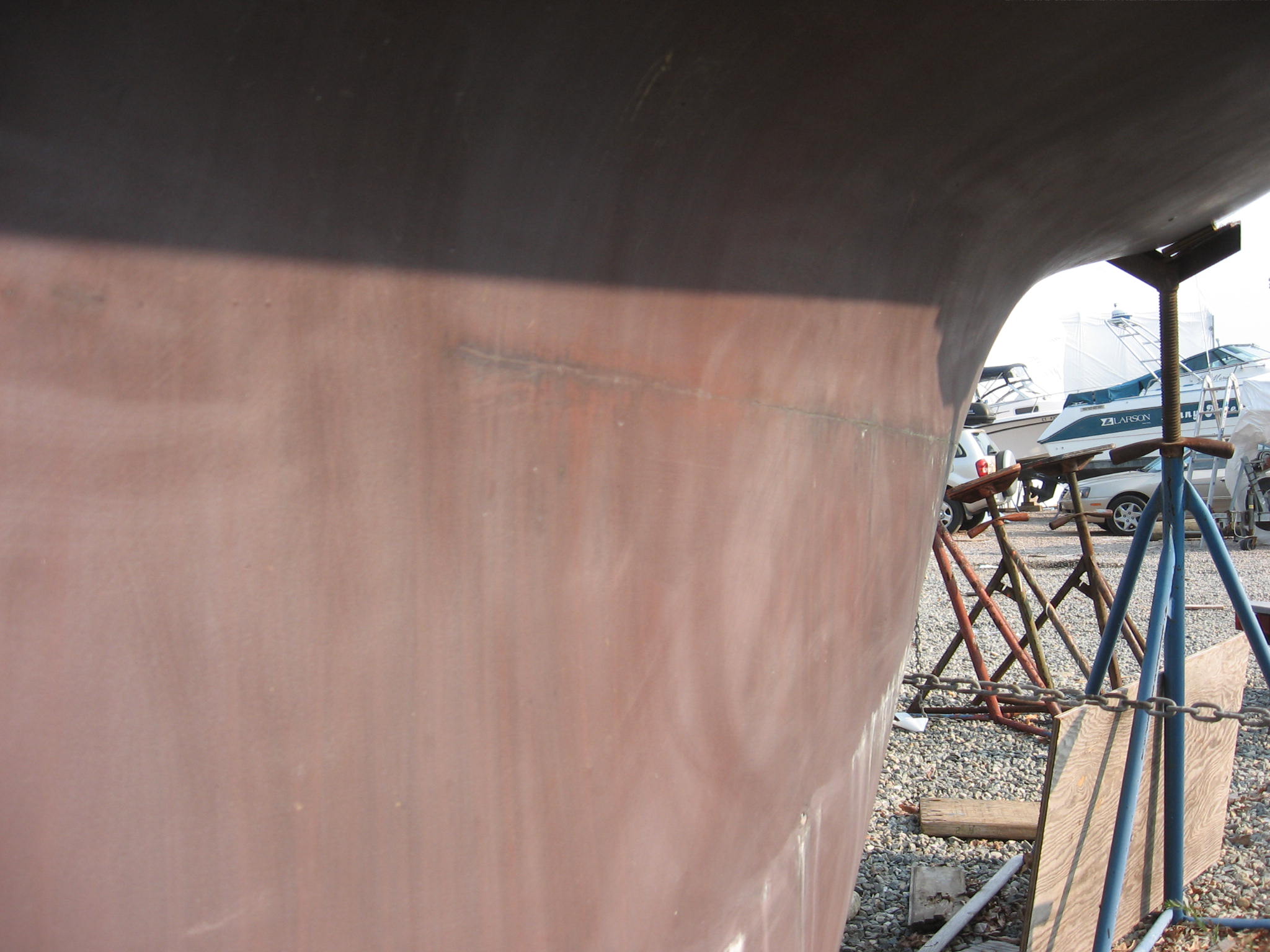

The bottom was in fair condition.  The paint is Baltoplate, favored by racers everywhere.  It is in decent condition, but the bottom is not race perfection.  If you want to use E-Paint on the bottom, I suspect all the Baltoplate and other coatings will need to be removed anyway, so the condition of the paint and smoothness of the bottom is hardly relevant.  But the bottom was pretty fair and smooth, and certainly doesn't need a lot of work either way.

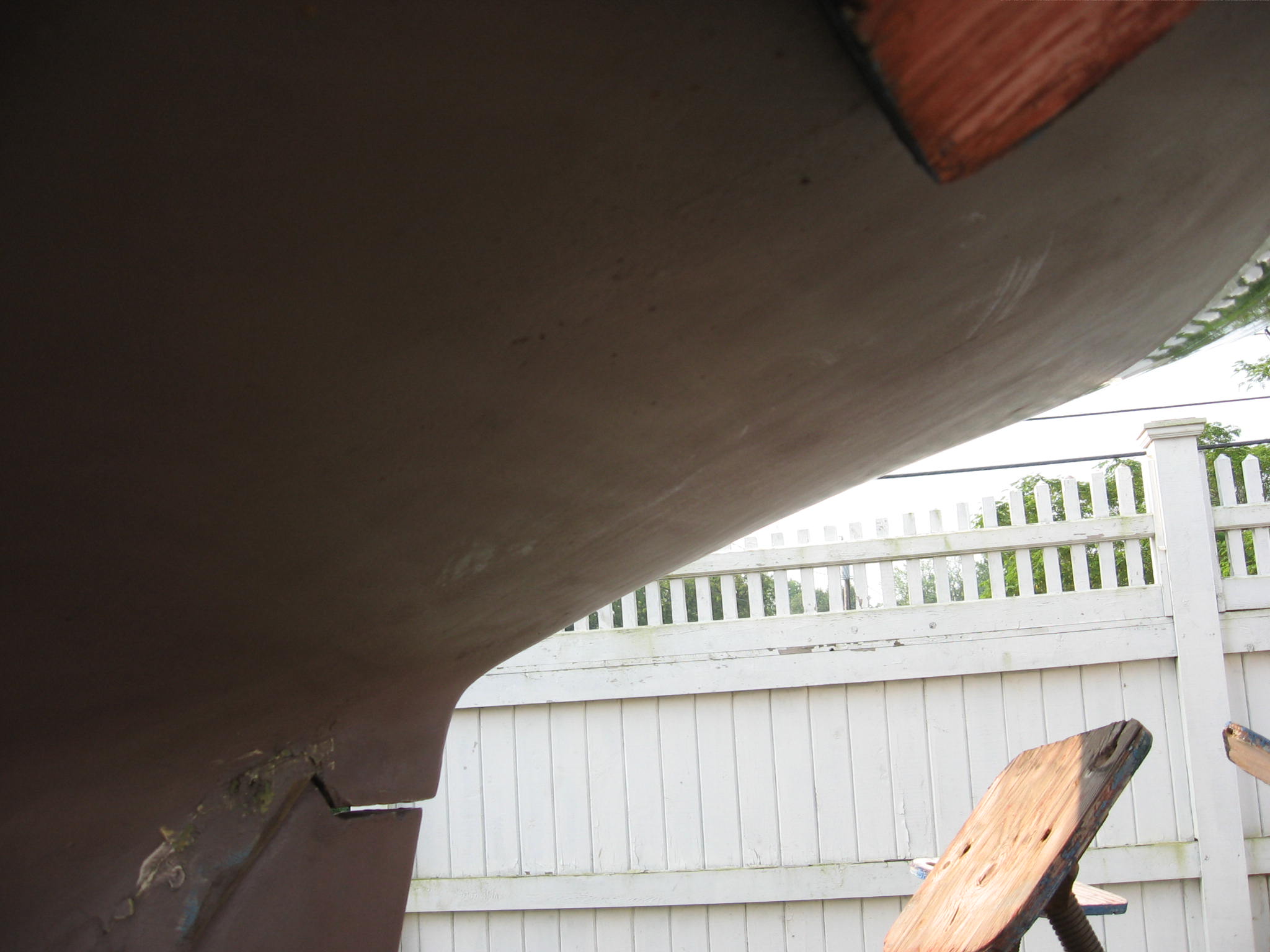

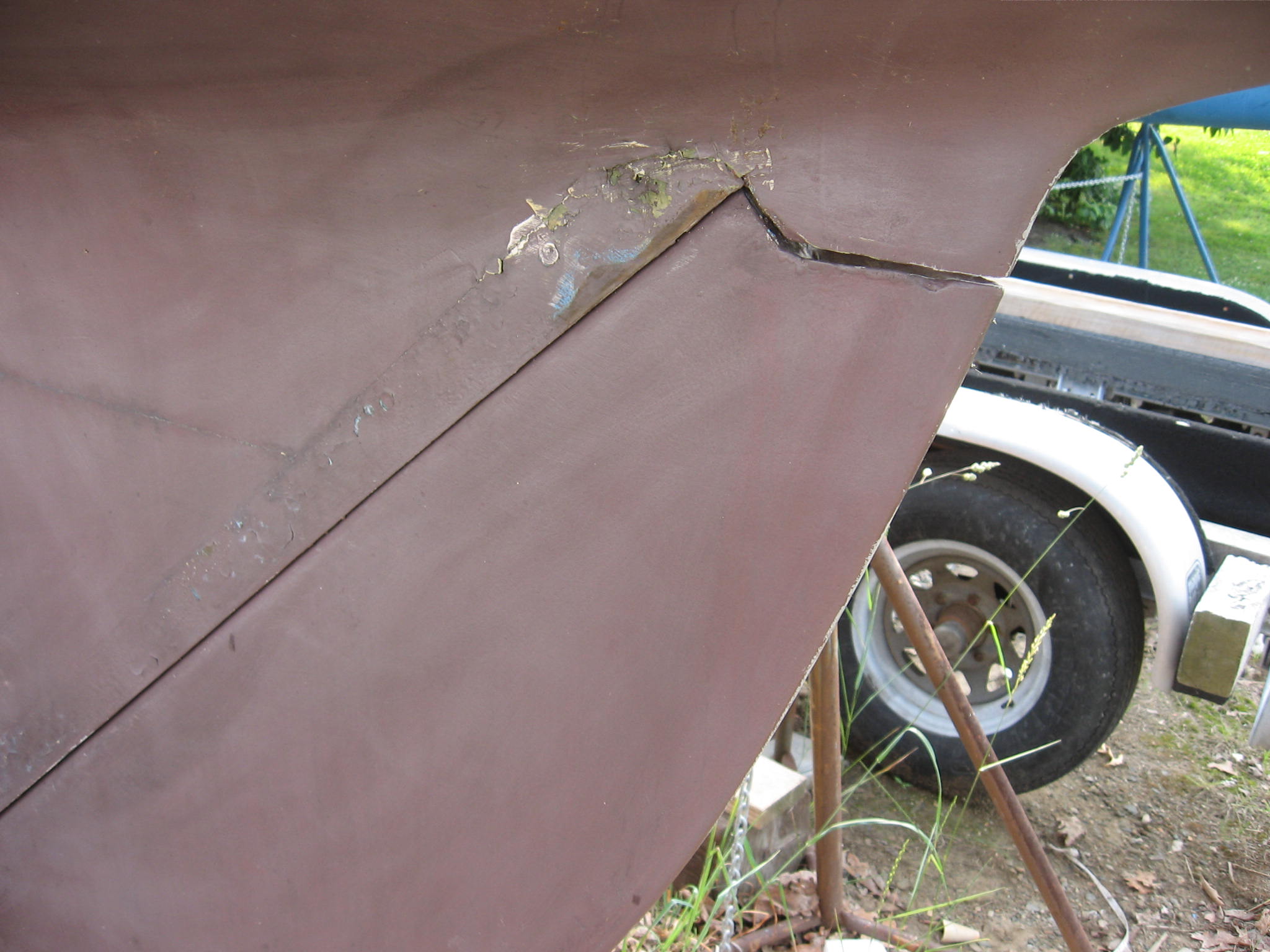

The rudder and fairing strips were in good condition with no particular problems to note.  Paint and fairing compound were loose over the fairing strips, since water tends to get in there and cause failure.  This is not a critical thing and is easy to fix.

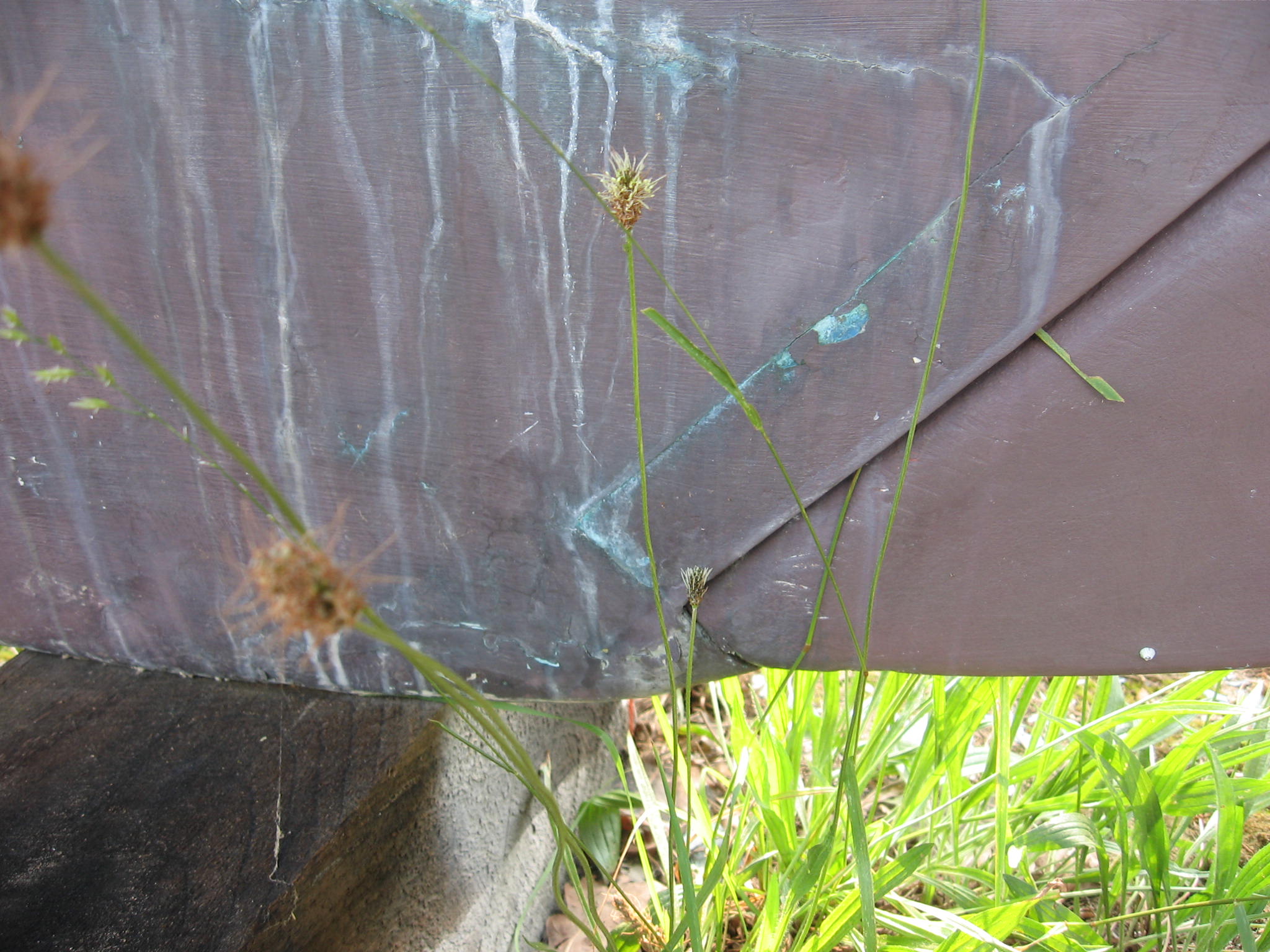

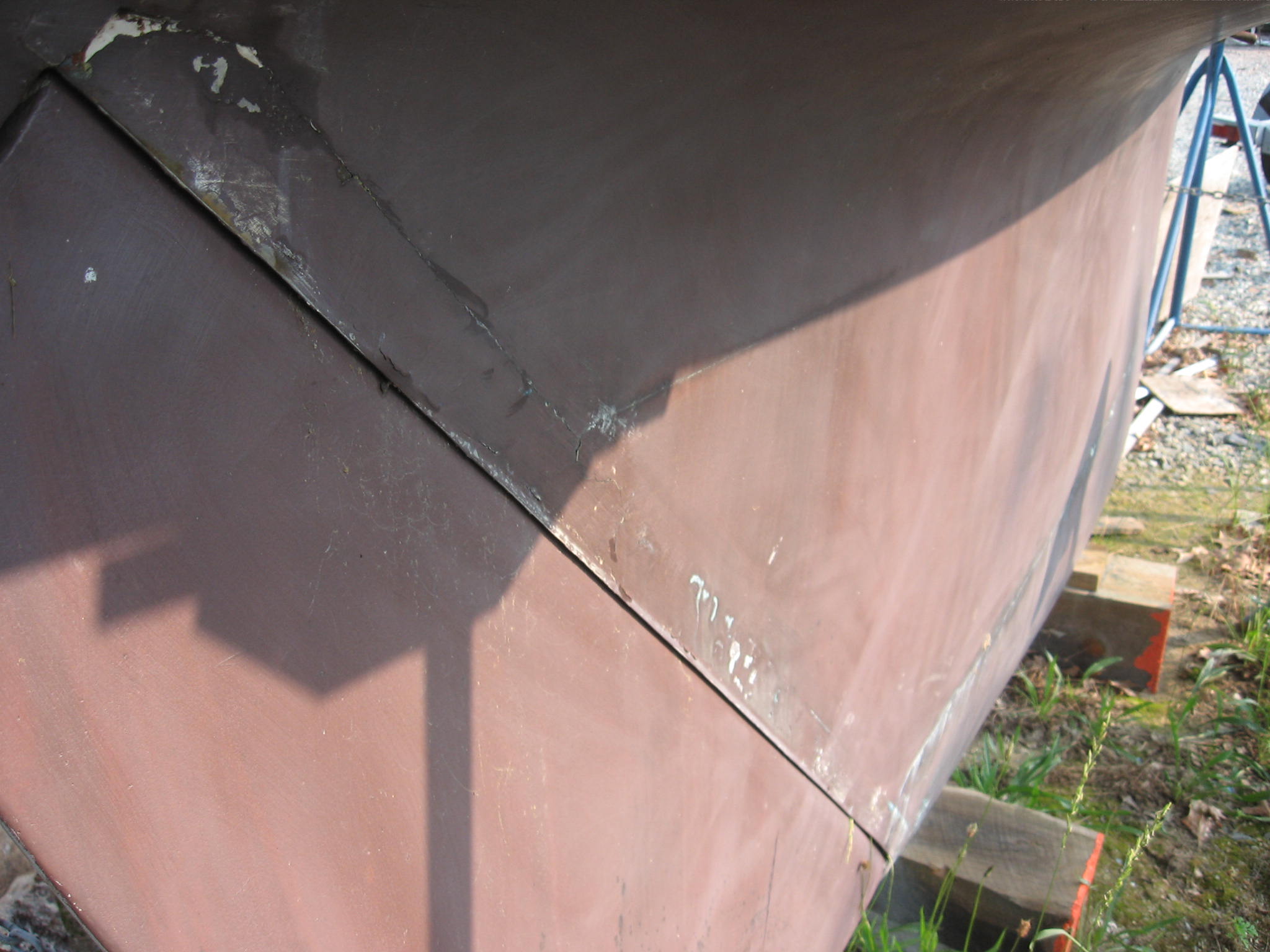

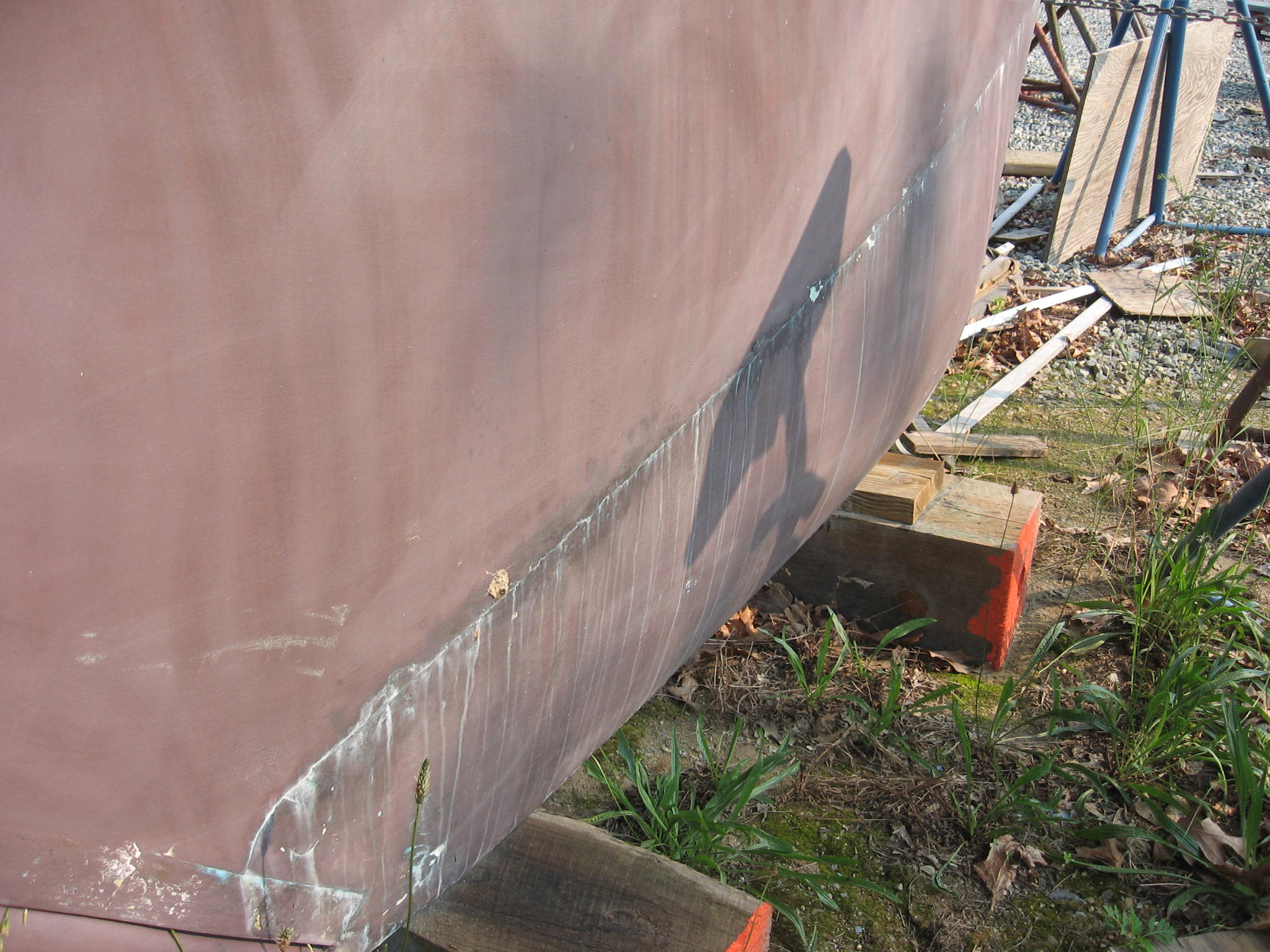

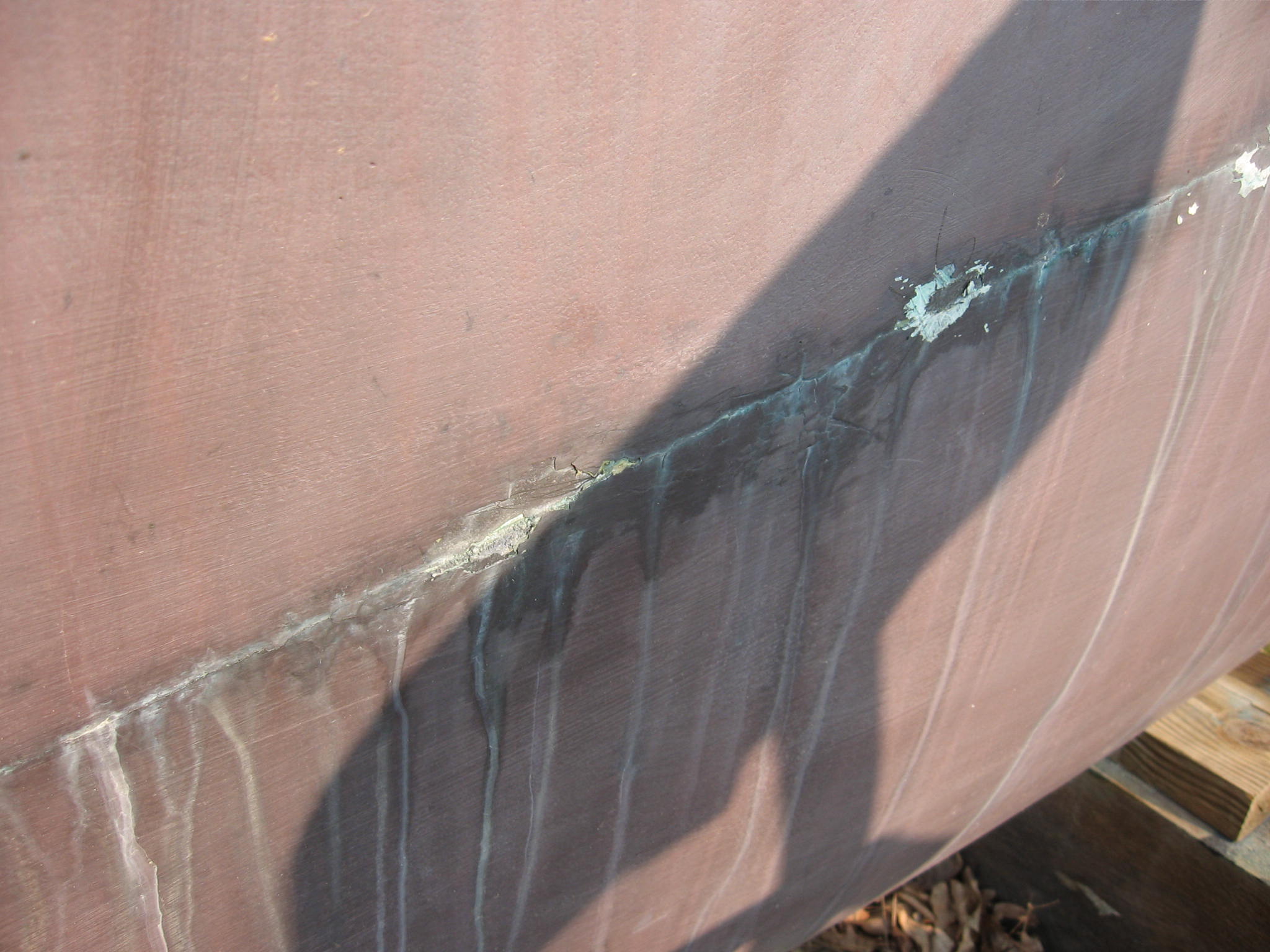

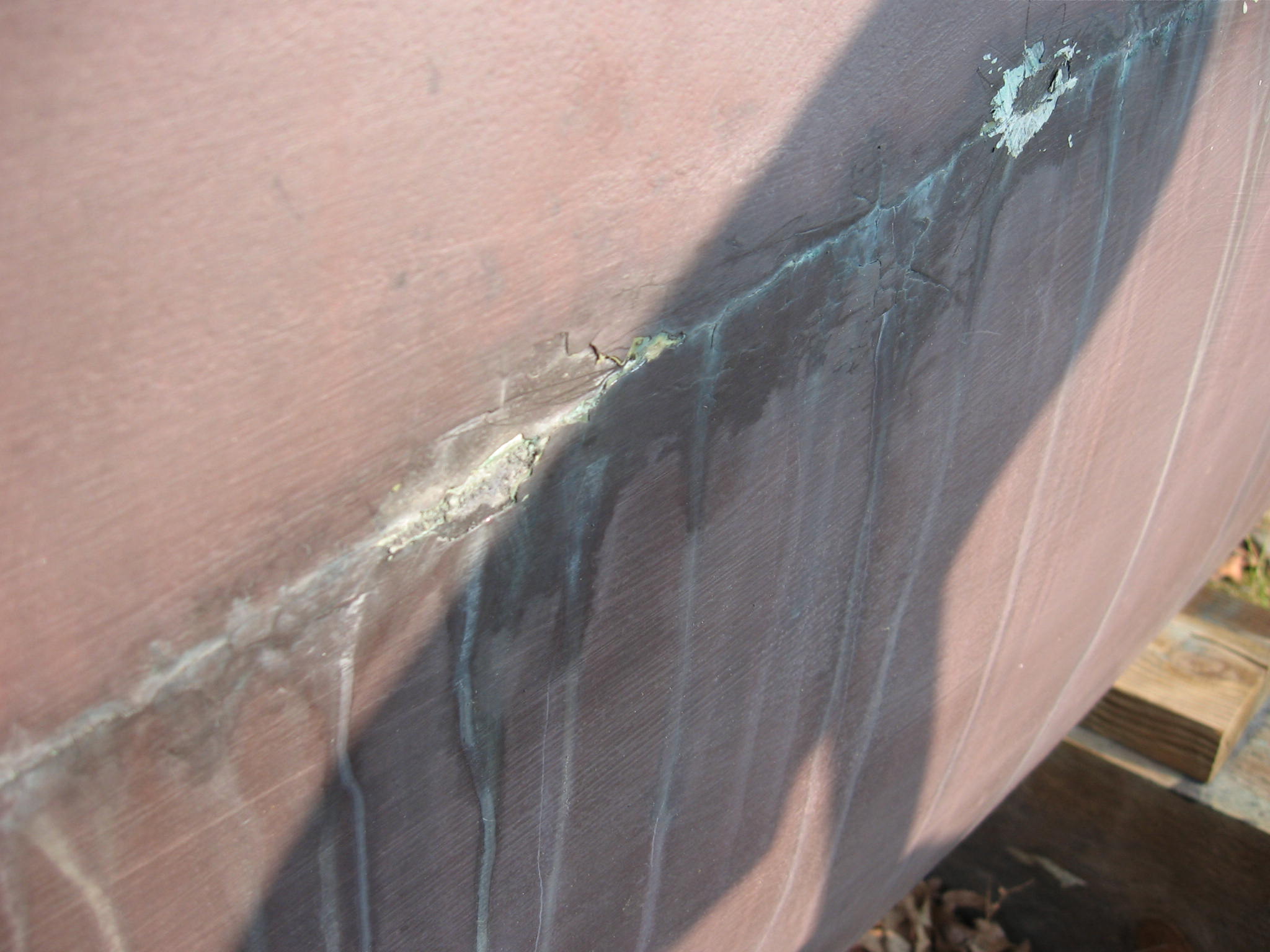

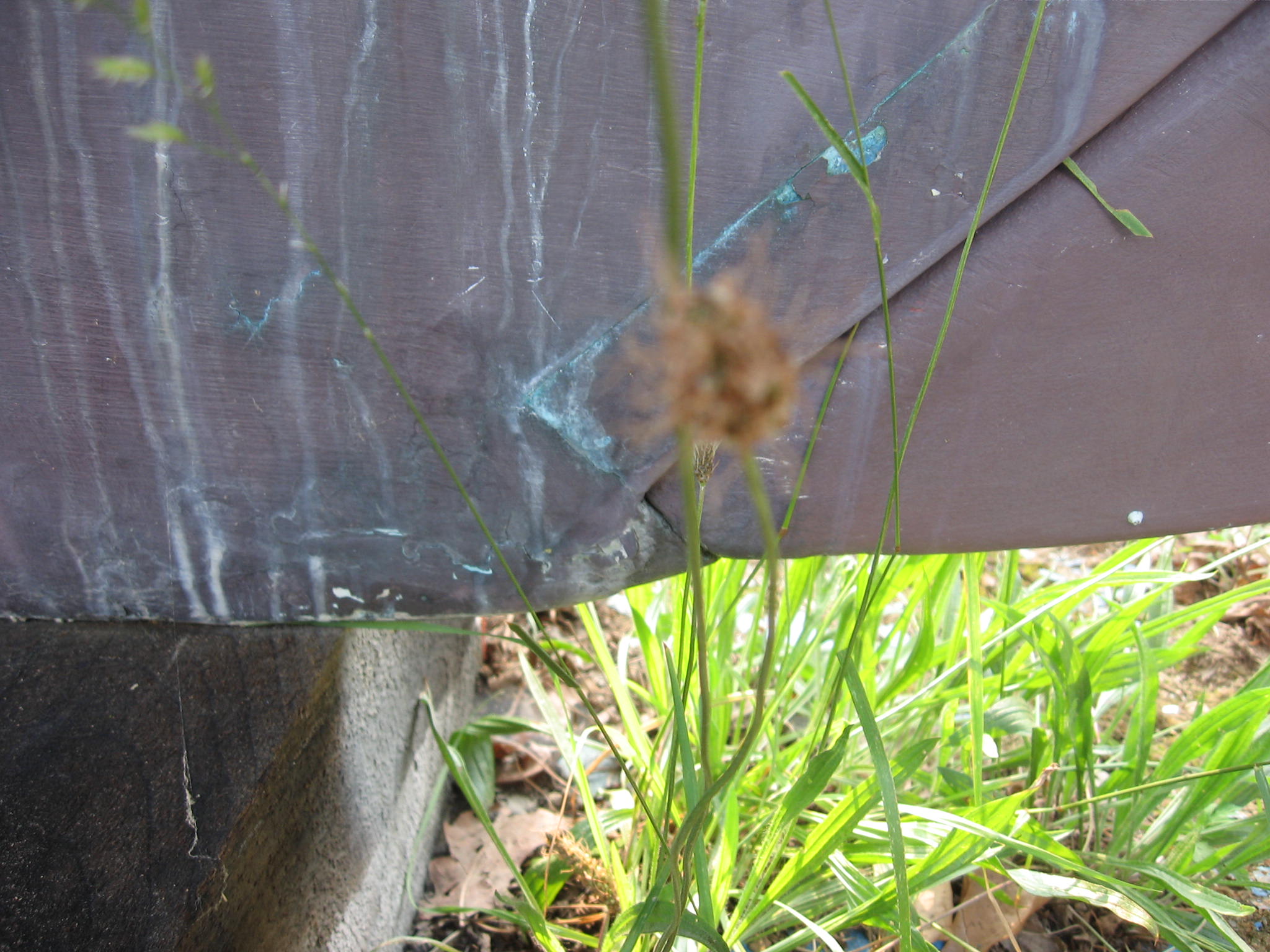

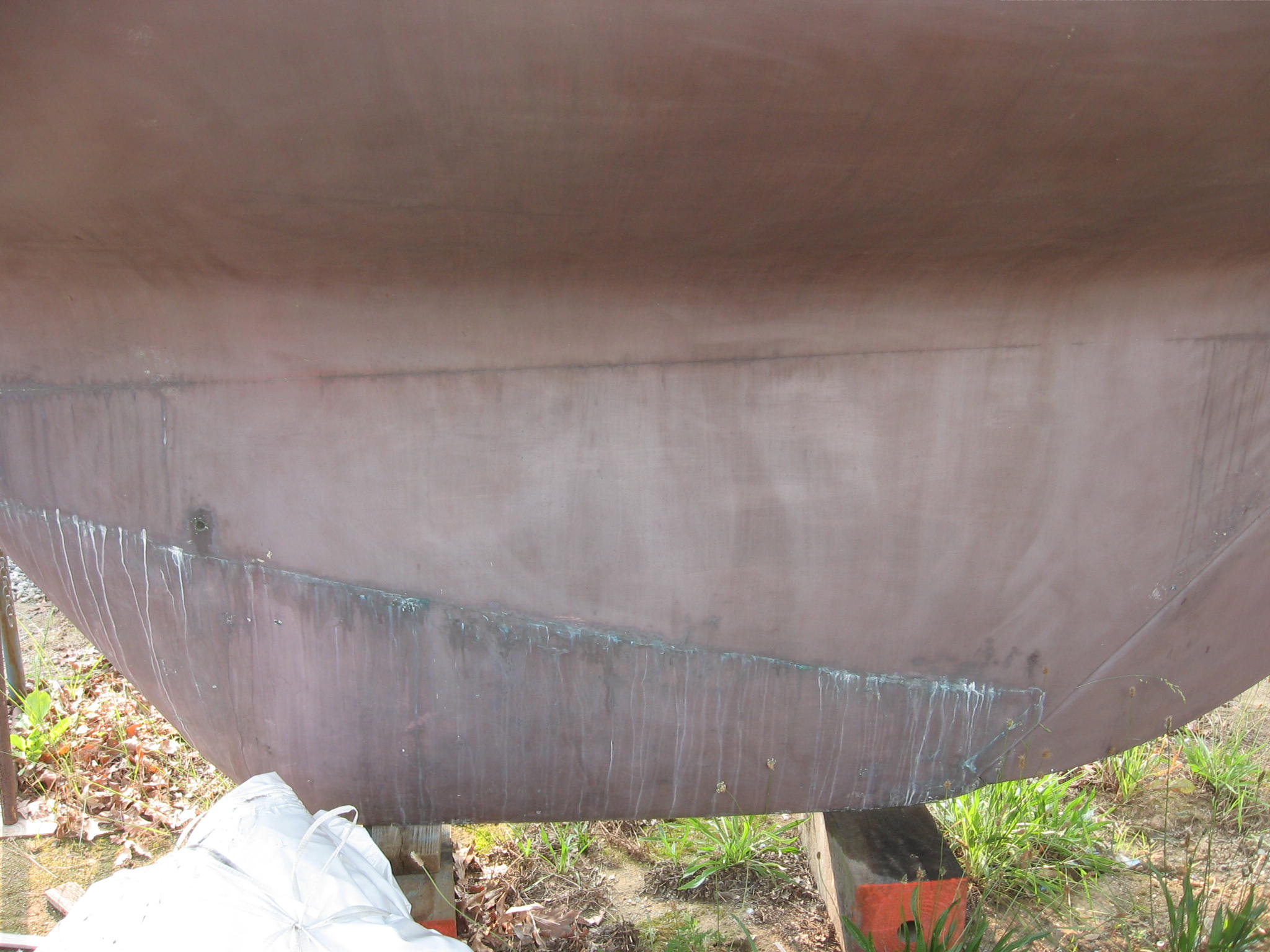

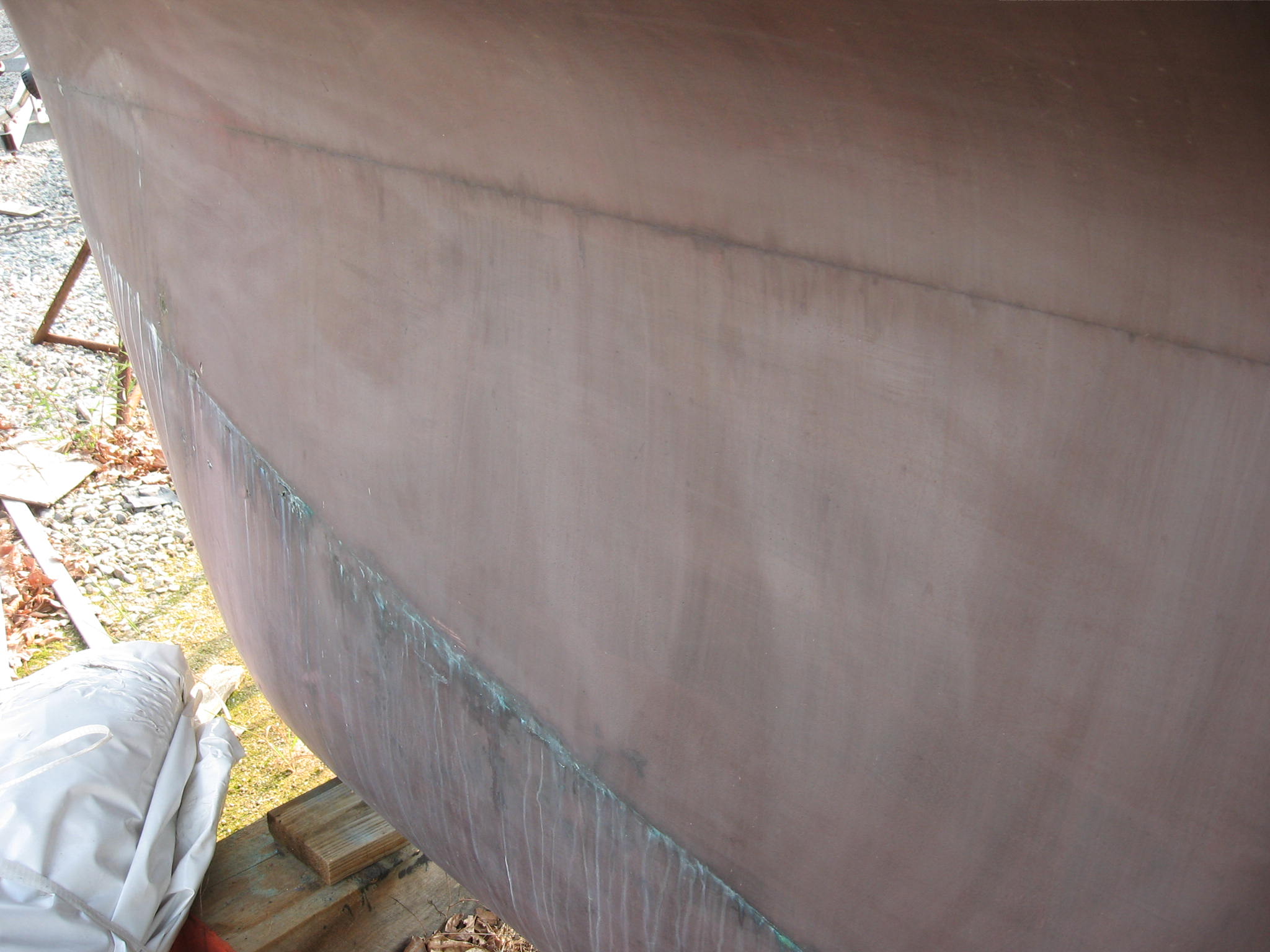

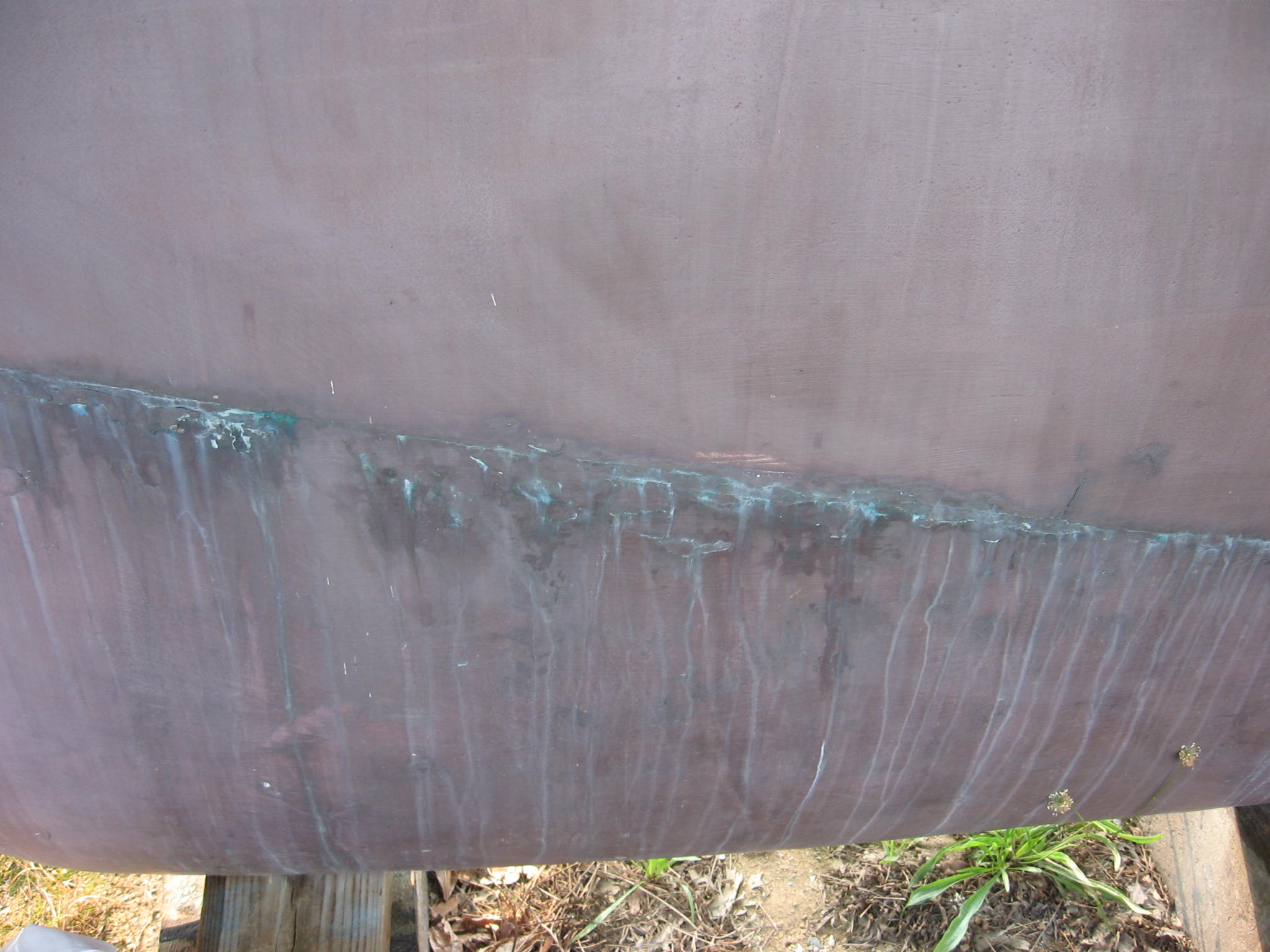

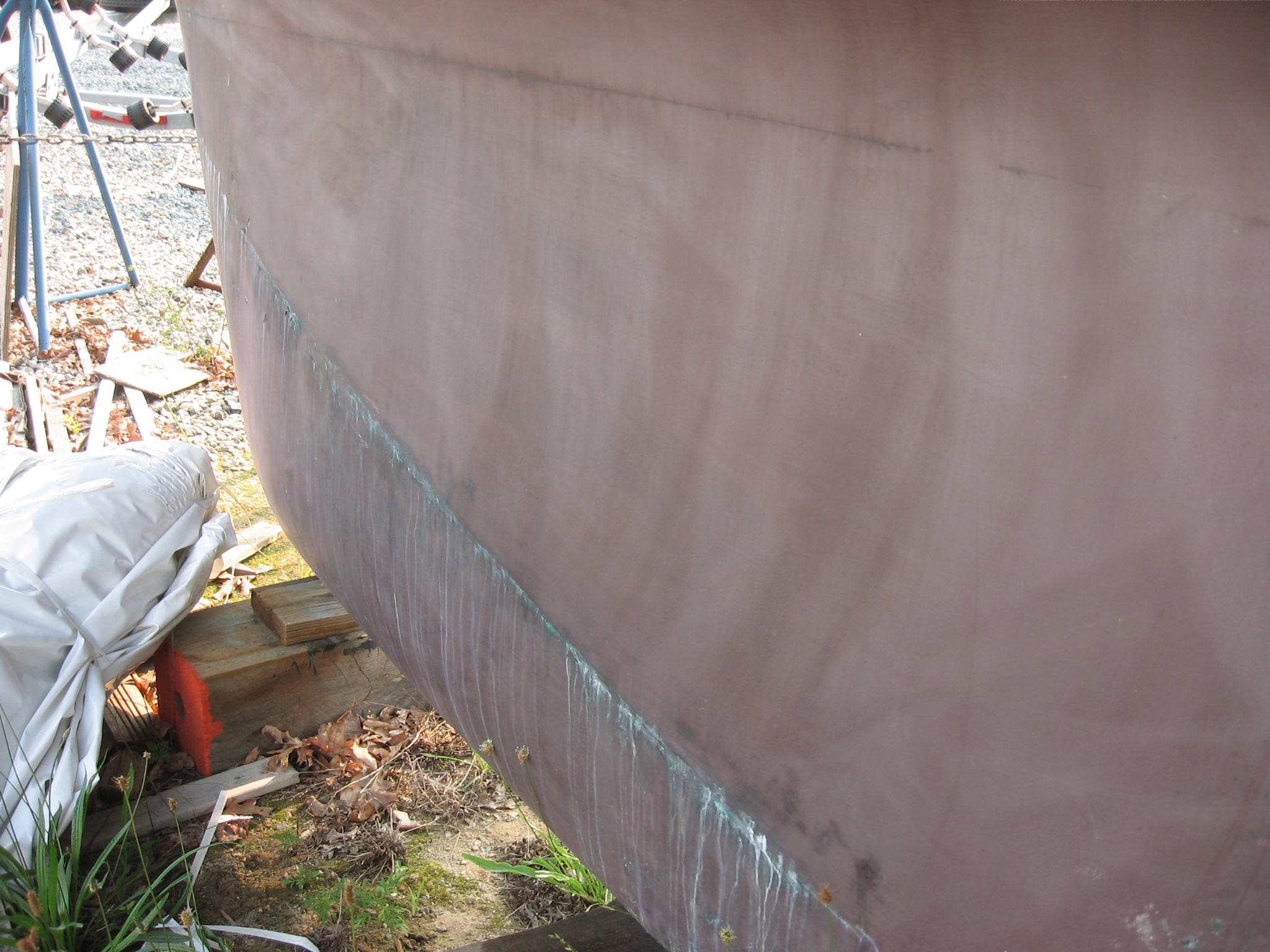

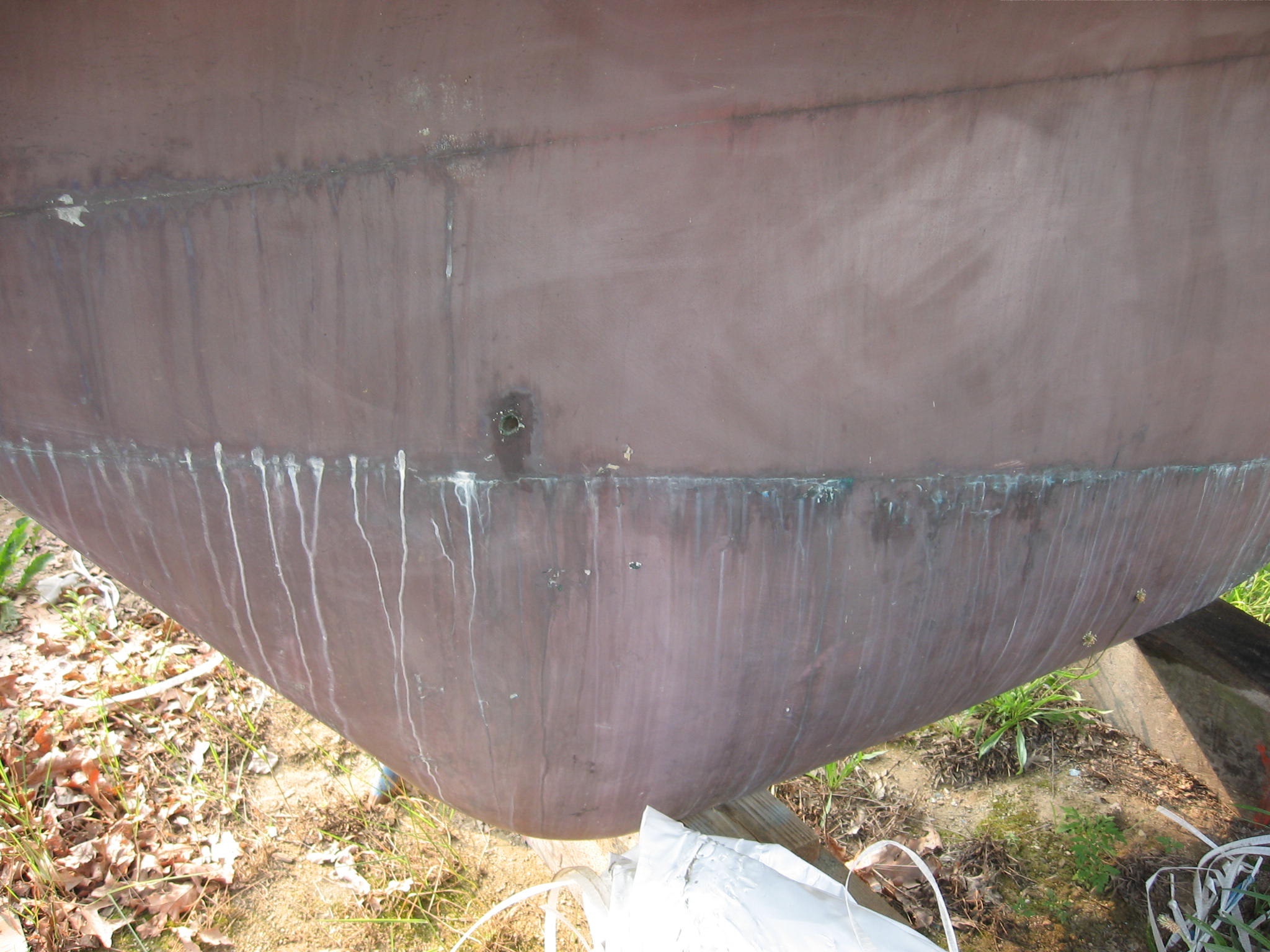

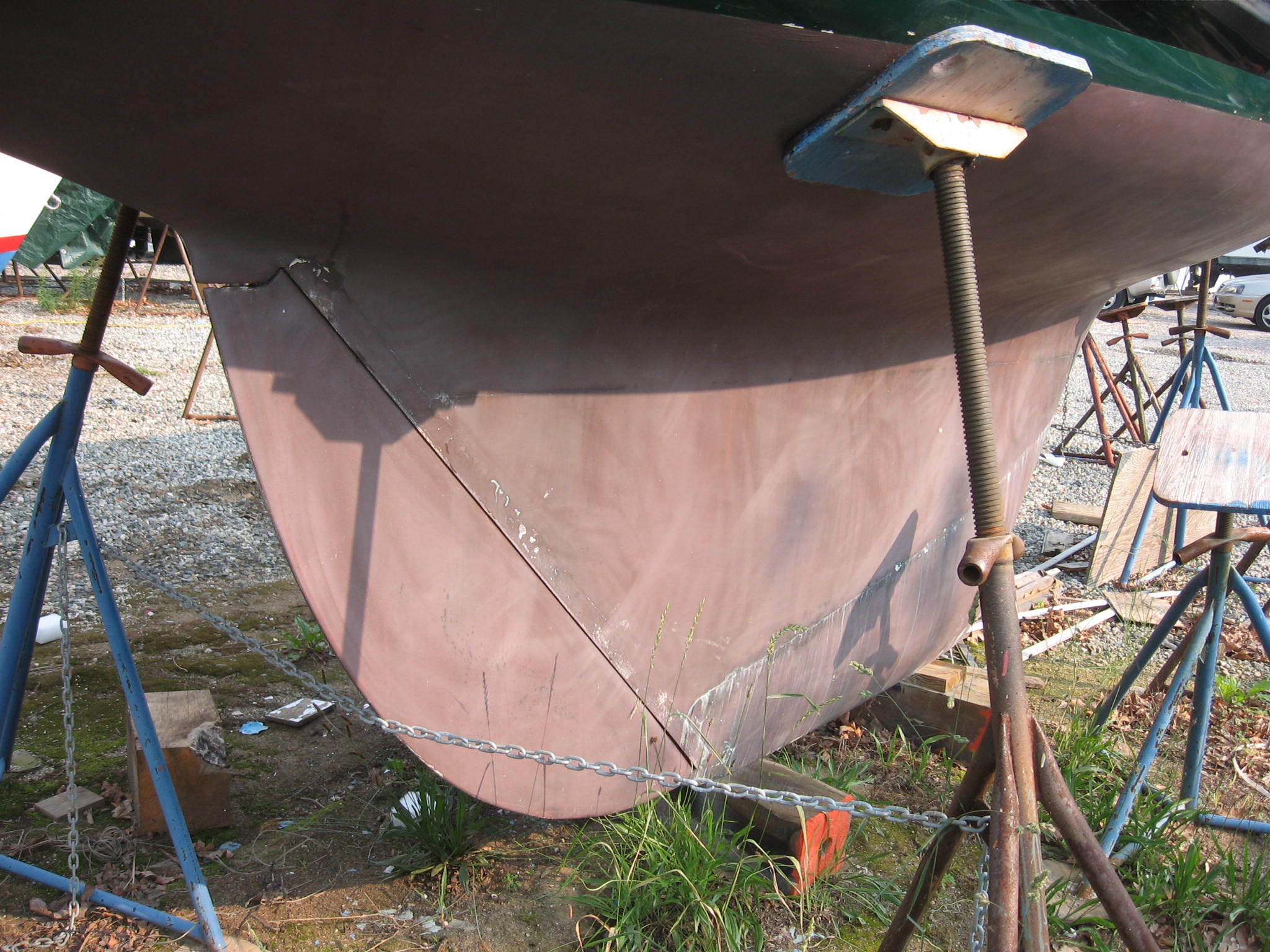

The ballast-hull joint had weeped, as is normal, and the bubbling and unfairness visible at the seam is the result of more fairing compound and paint failure.  The seam itself looked tight and good, with no particular problems.  The weeping is a fact of life, as this seam is rarely perfectly watertight and is dynamic in its stress.  Baltoplate turns ugly green colors where small rivulets run when the boat is hauled, and these discolorations make things look awful, but it's not nearly as bad as all that.

The tops of the keel bolts looked OK in the bilge as far as I could tell, but the bilge was full of several inches of water, so there was only so much I could see.  But there aren't any indications of serious problems there, or with the seam at the top portion of the add-on fiberglass keel just below the garboard.
