Summer Song | Monday, February 17, 2014

This project was winding down, with a few details awaiting the completion of varnish work on the toerails.  So keeping that moving forward was paramount.  But before I got to the day's coat of varnish, I turned to the anchor platform, which this time was ready for its final shaping after I'd had to redo the after support earlier.

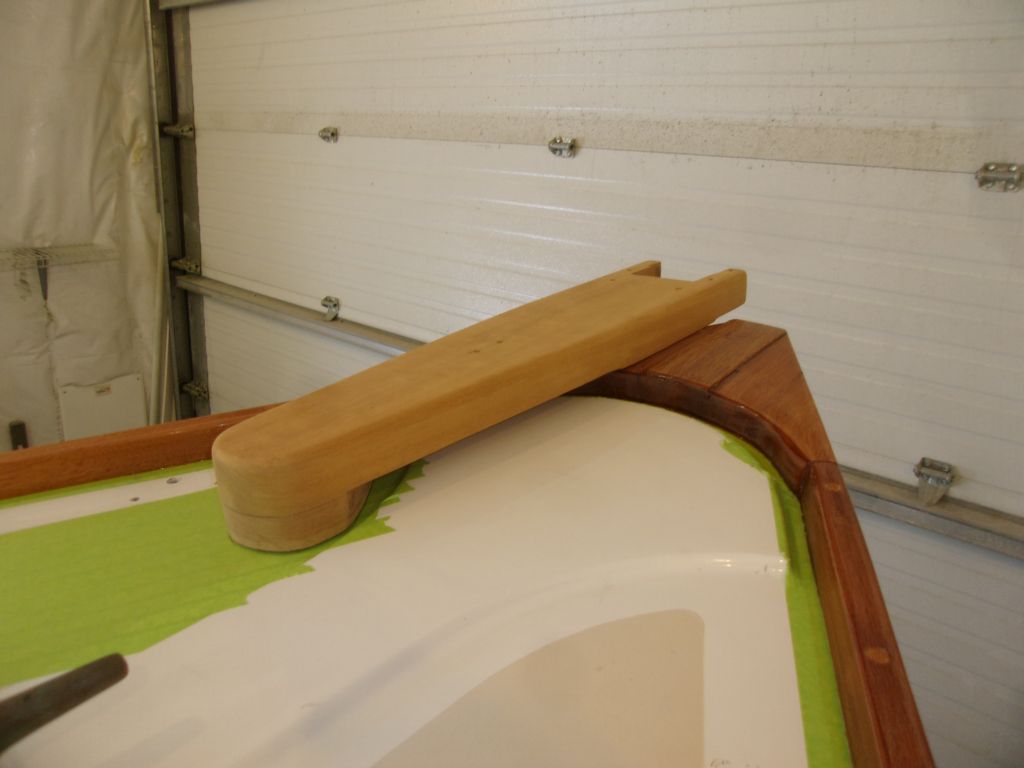

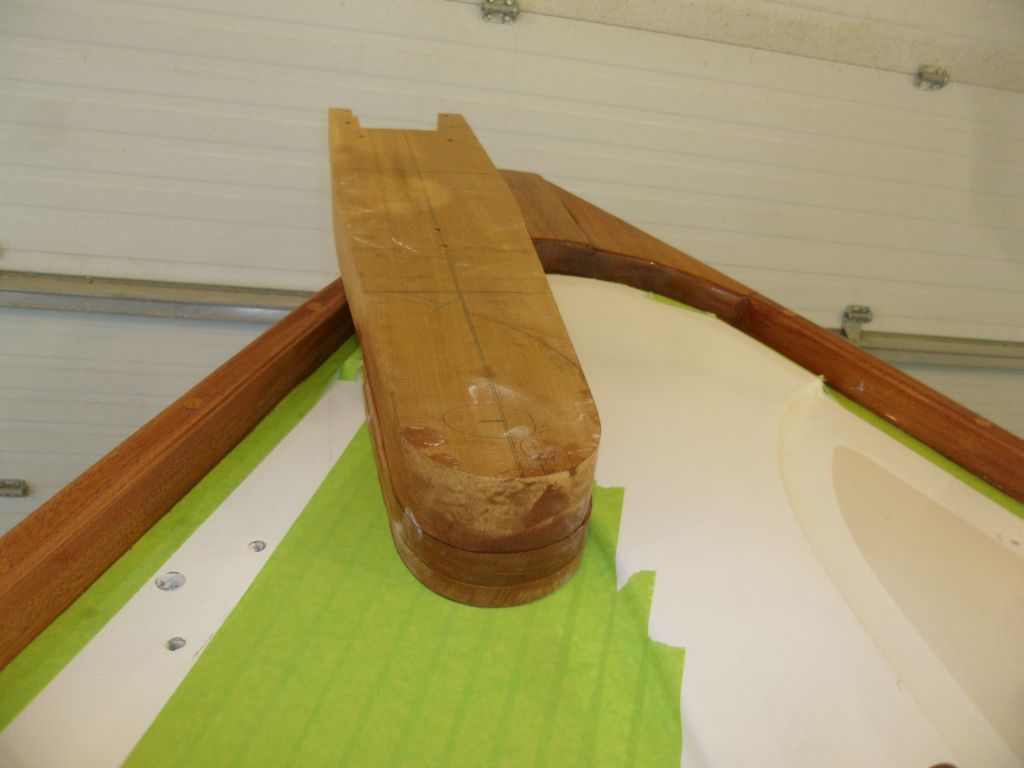

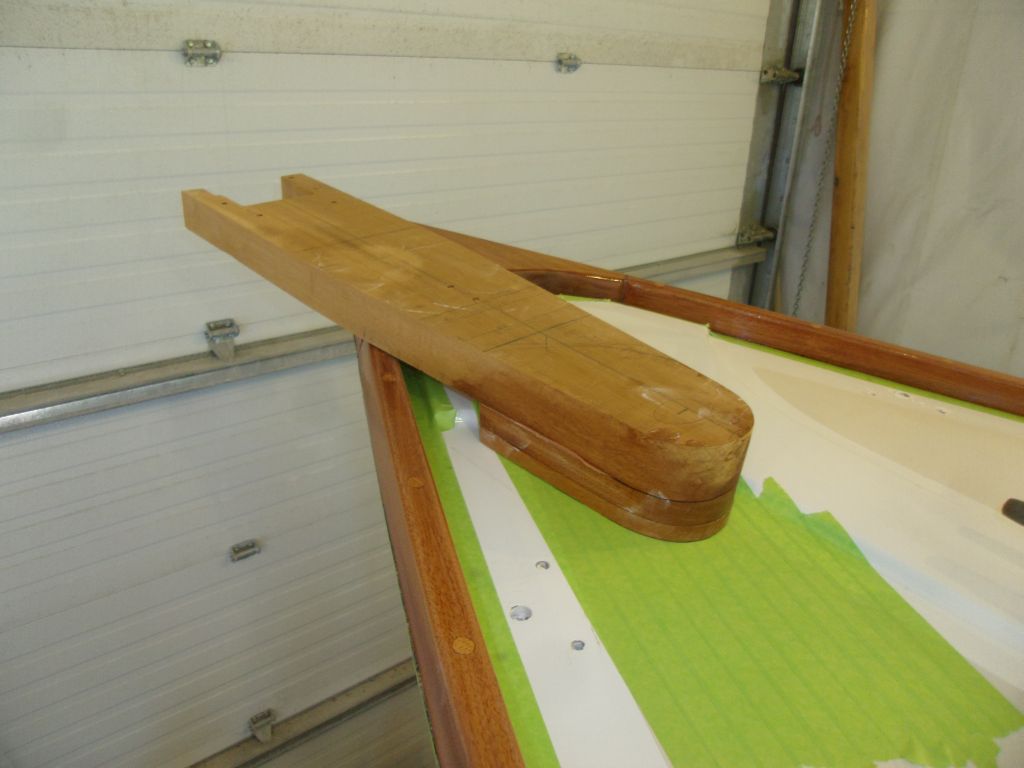

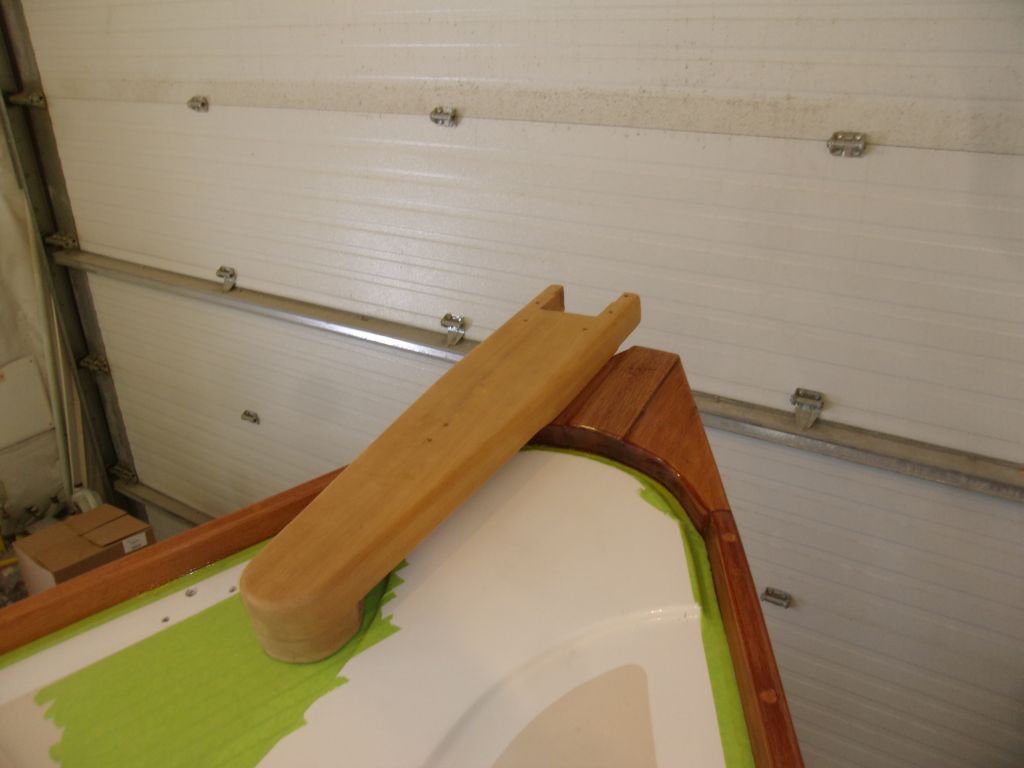

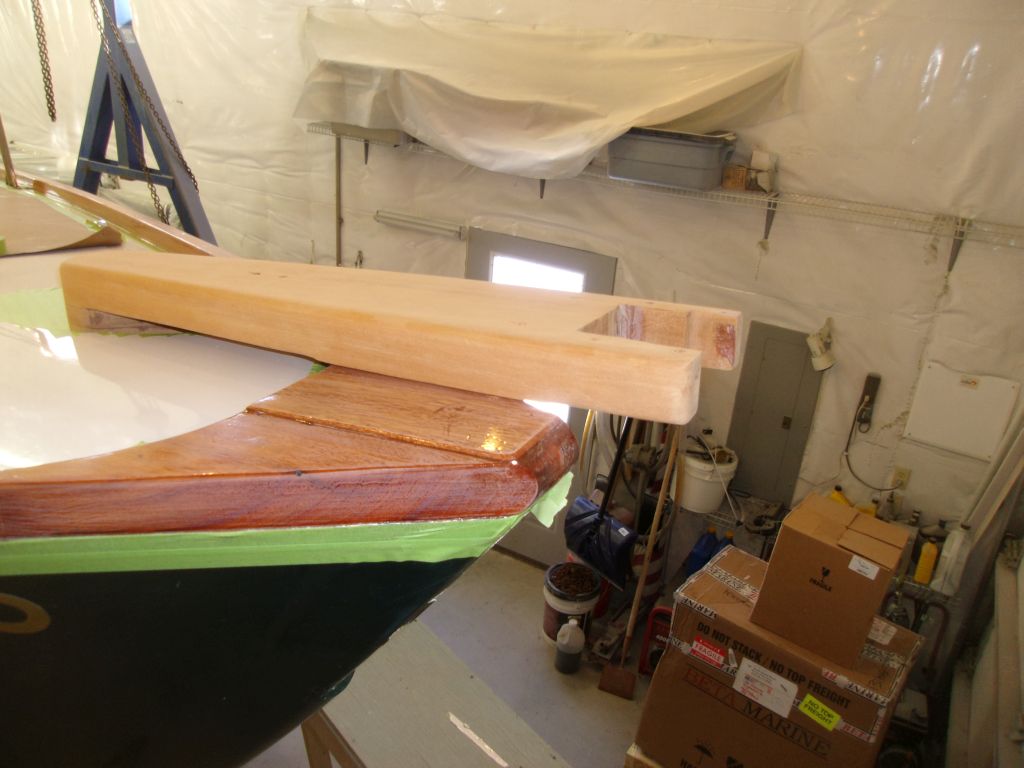

I started with a test-fit, and noted where I'd need to shape the base of the foot to match the deck profile, and also where I wanted to mill rounded edges on the platform.

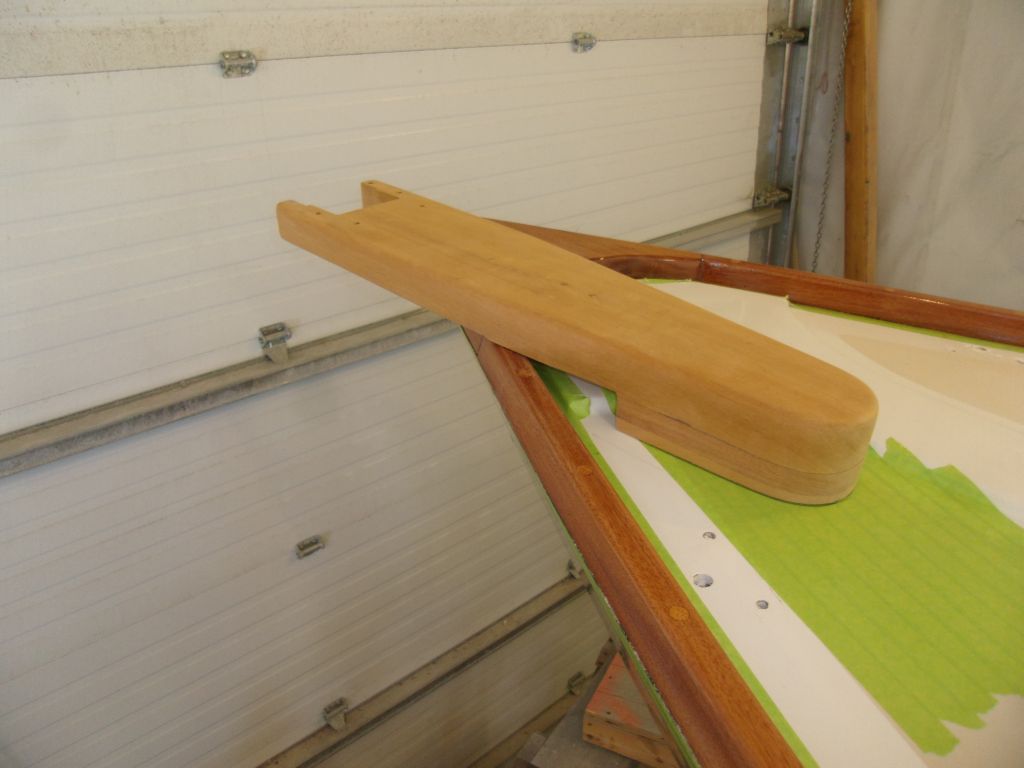

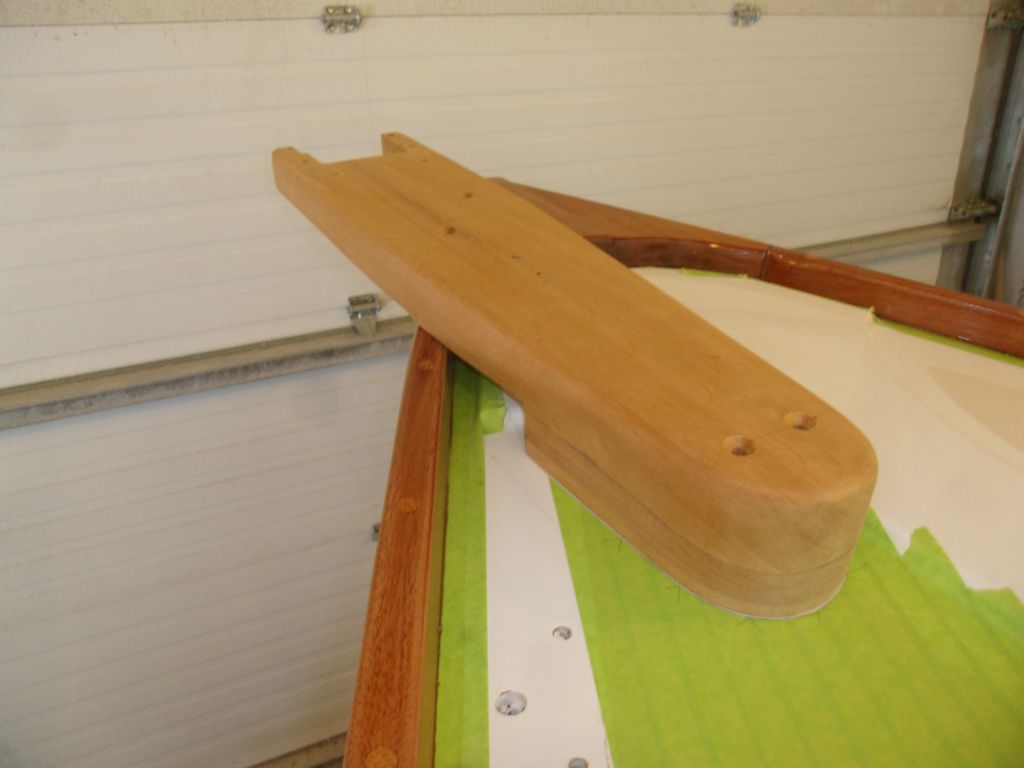

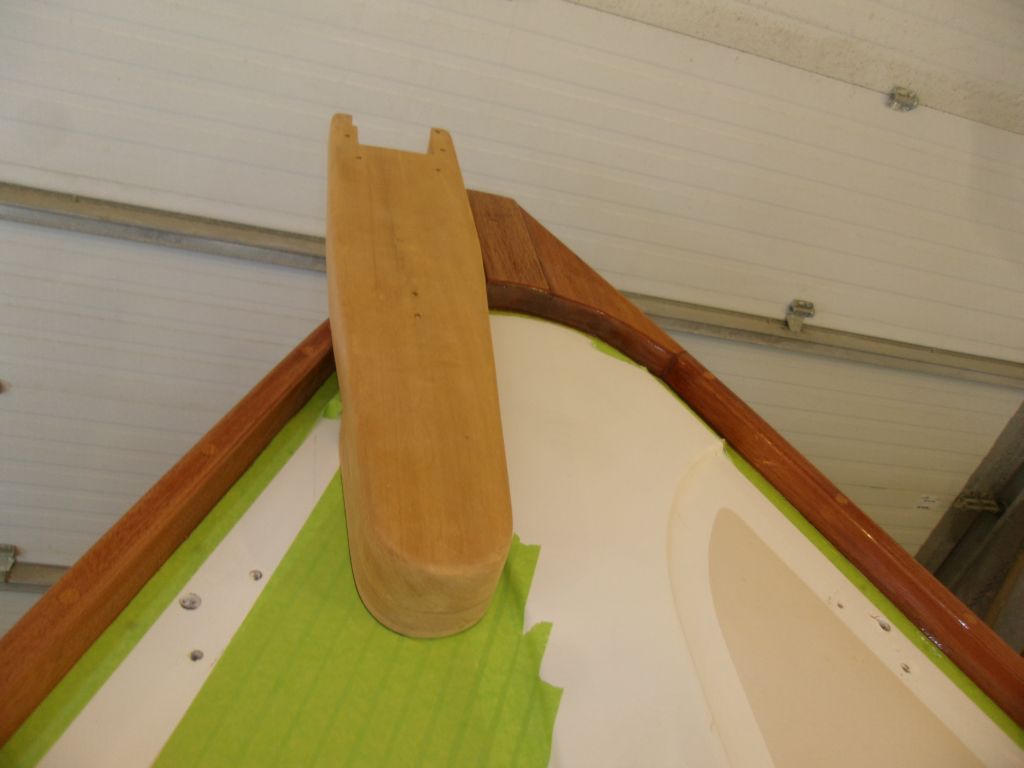

Down on the bench, I milled a wide roundover on the platform's top edges, and a slightly smaller one on portions of the bottom edges, leaving the areas where the platform rested over the toerail square.  I shaped the bottom of the foot, angling it as needed to fit to the deck, and sanded the whole thing smooth.

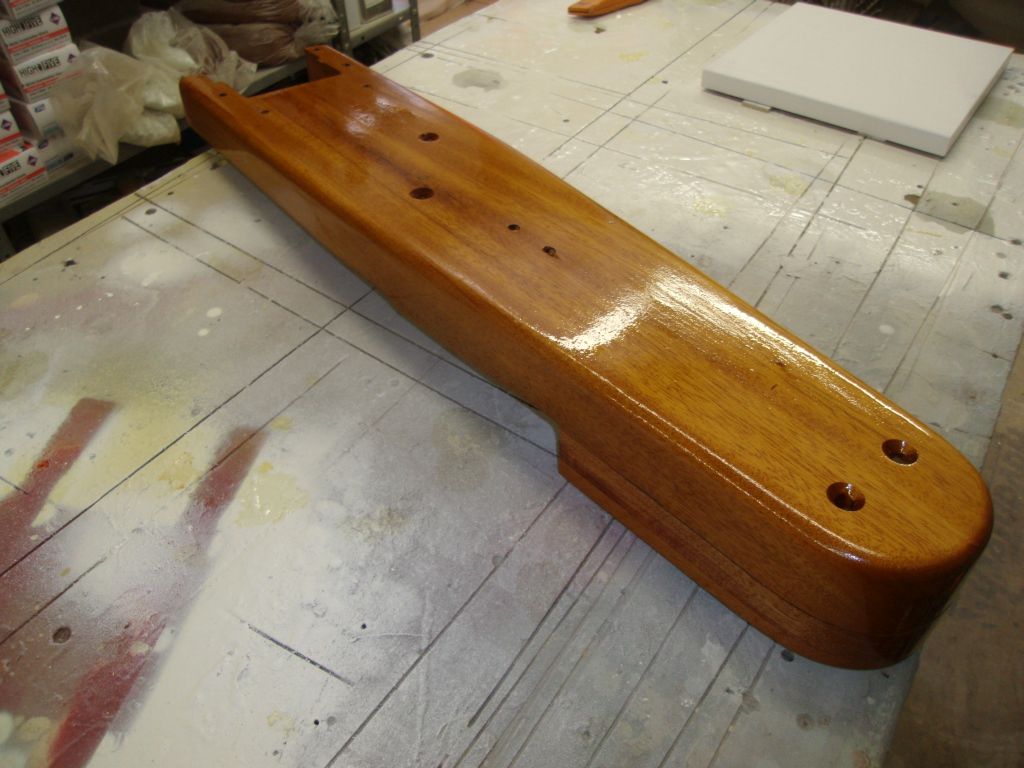

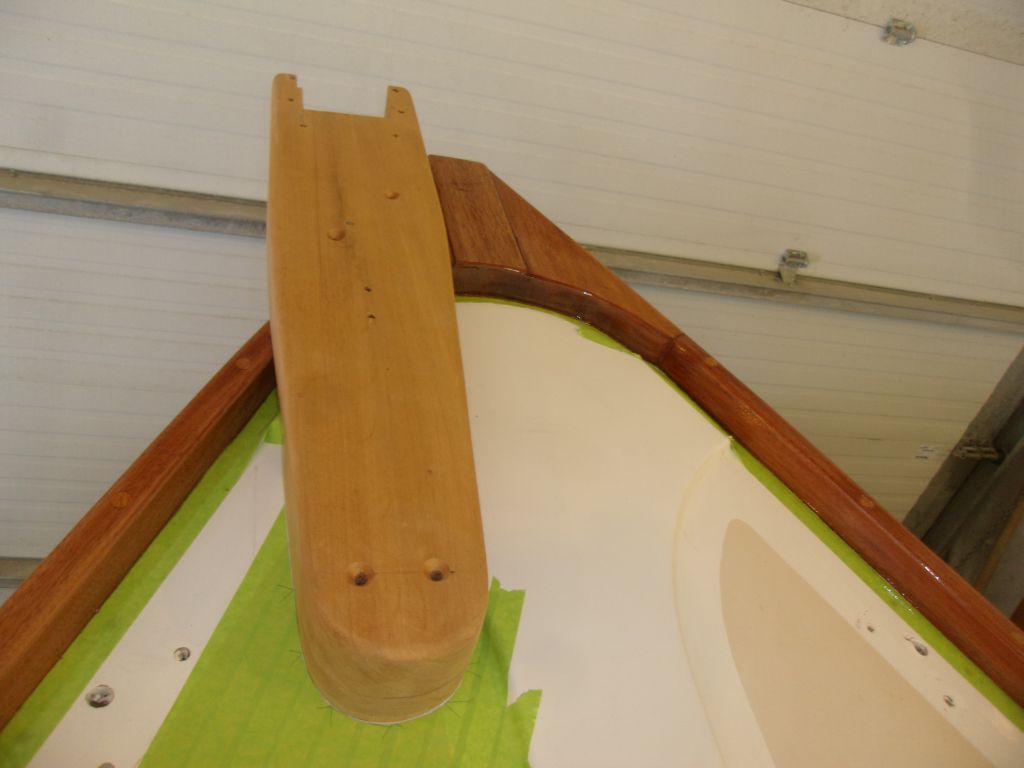

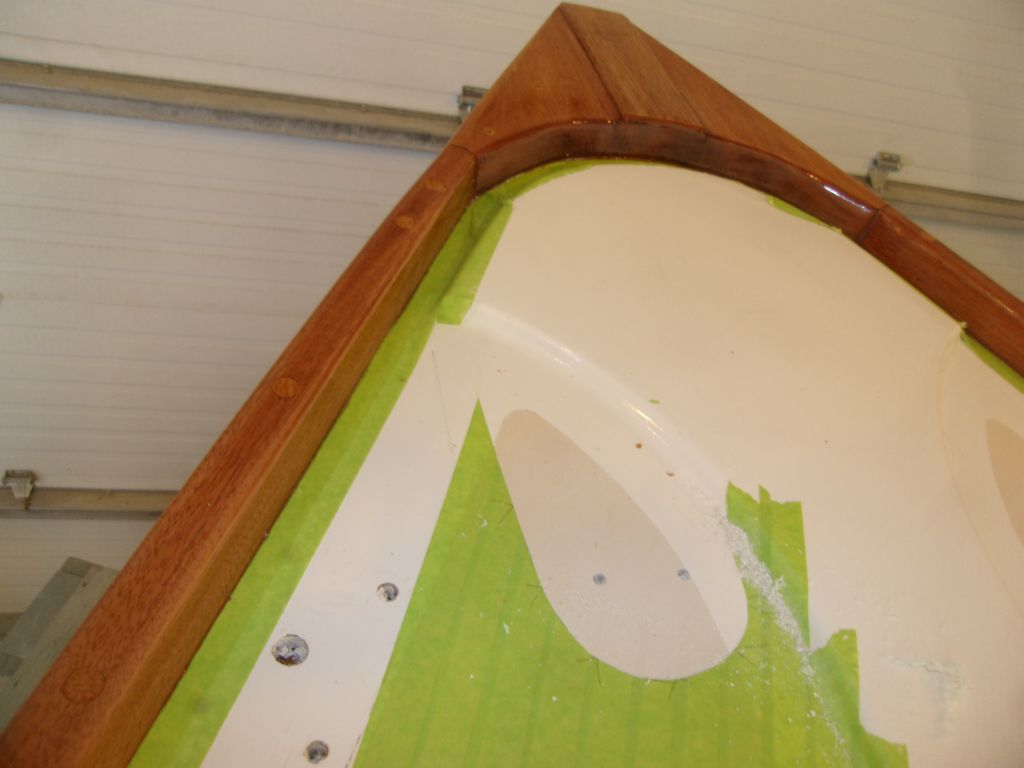

I marked future screw locations, which I'd use to secure the platform later, and predrilled the holes, and also marked these locations on the deck and forward toerail.  Then, I applied a sealer coat of varnish to the platform.  I'd complete all the varnish work before installing the platform.

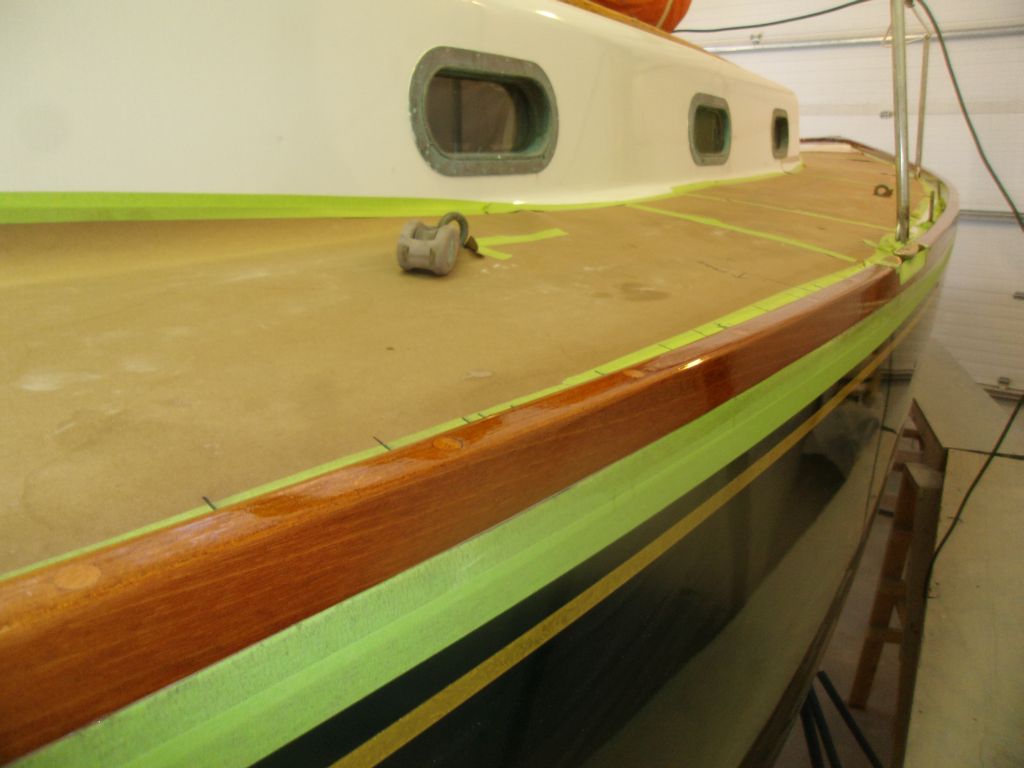

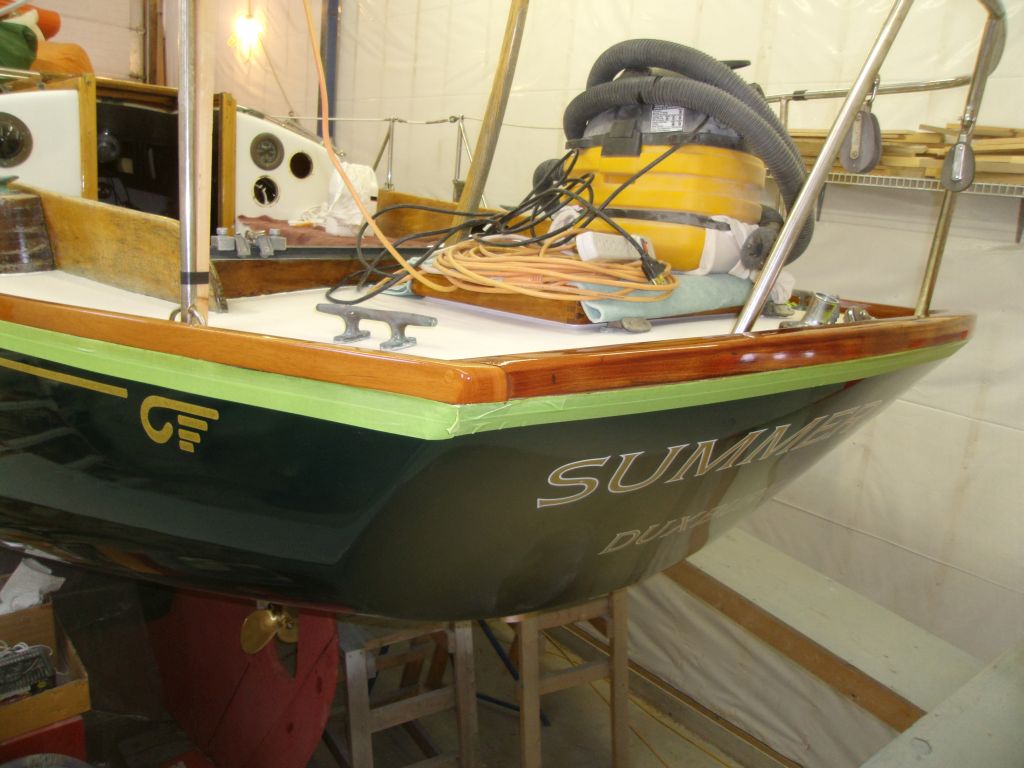

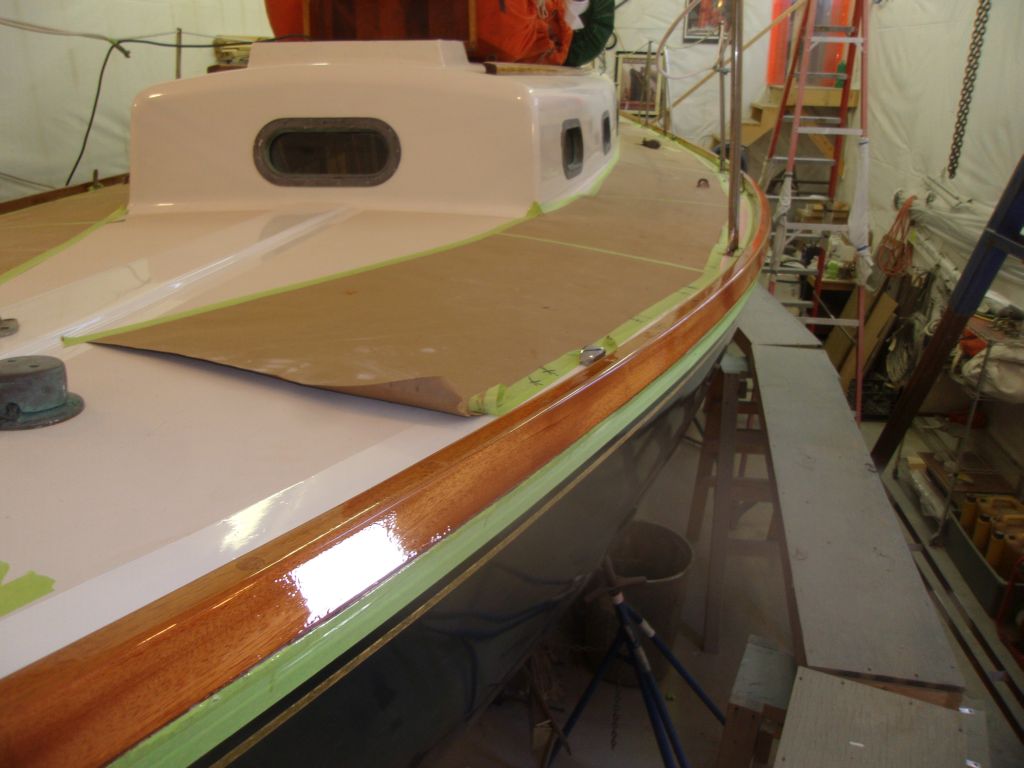

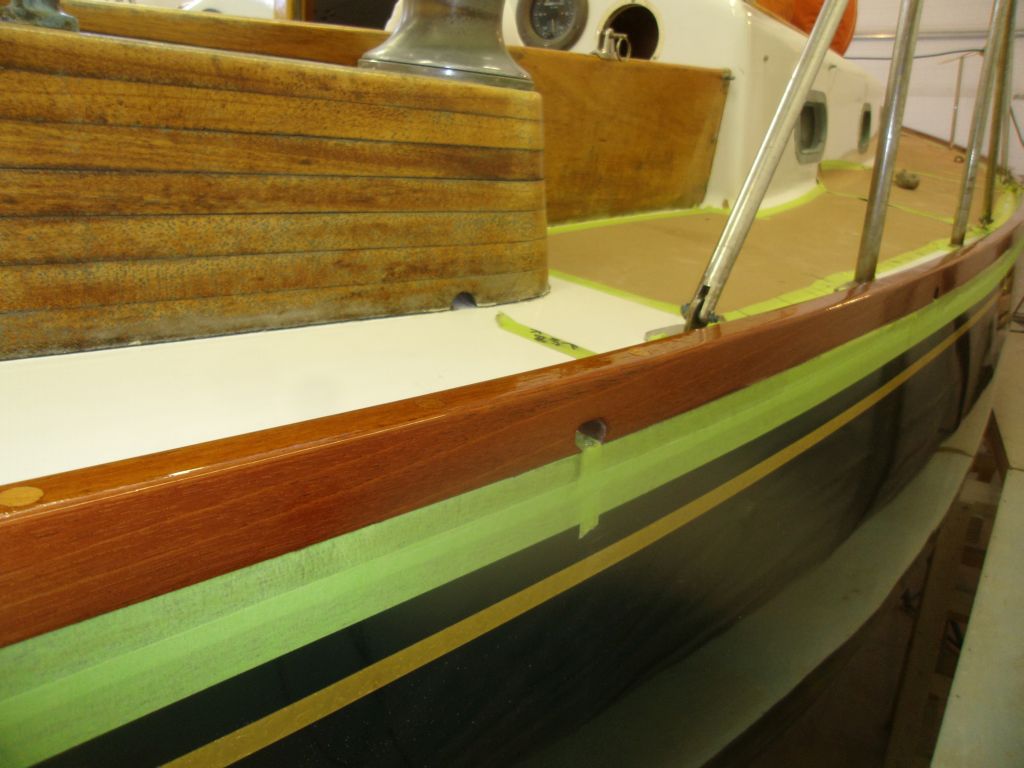

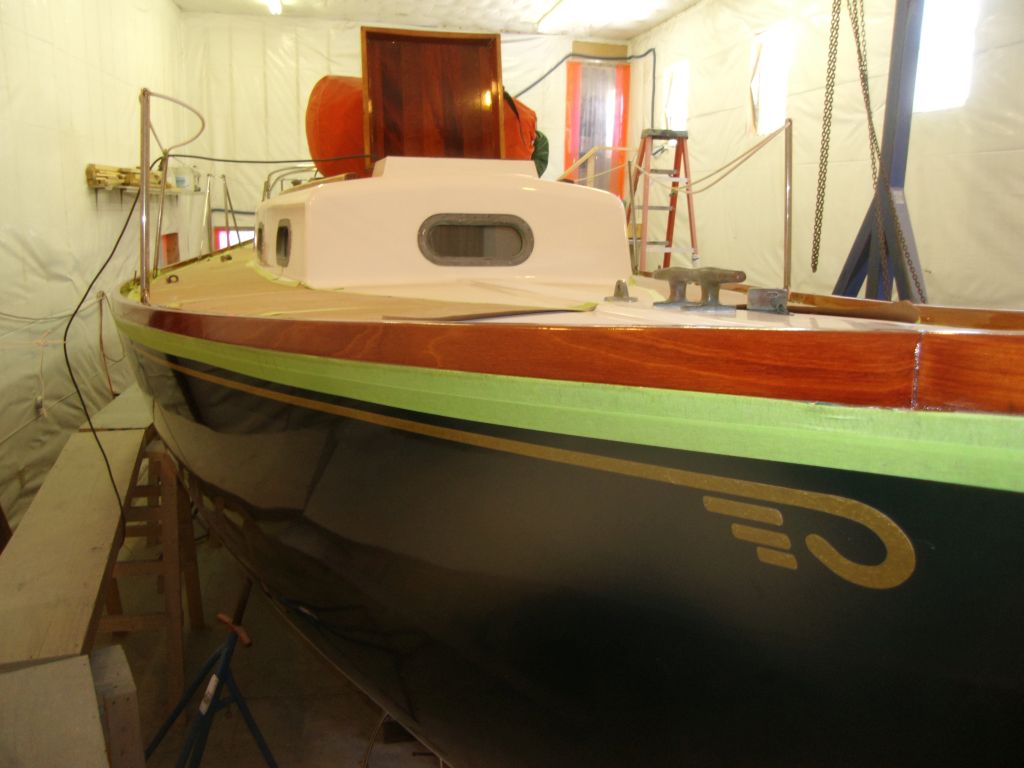

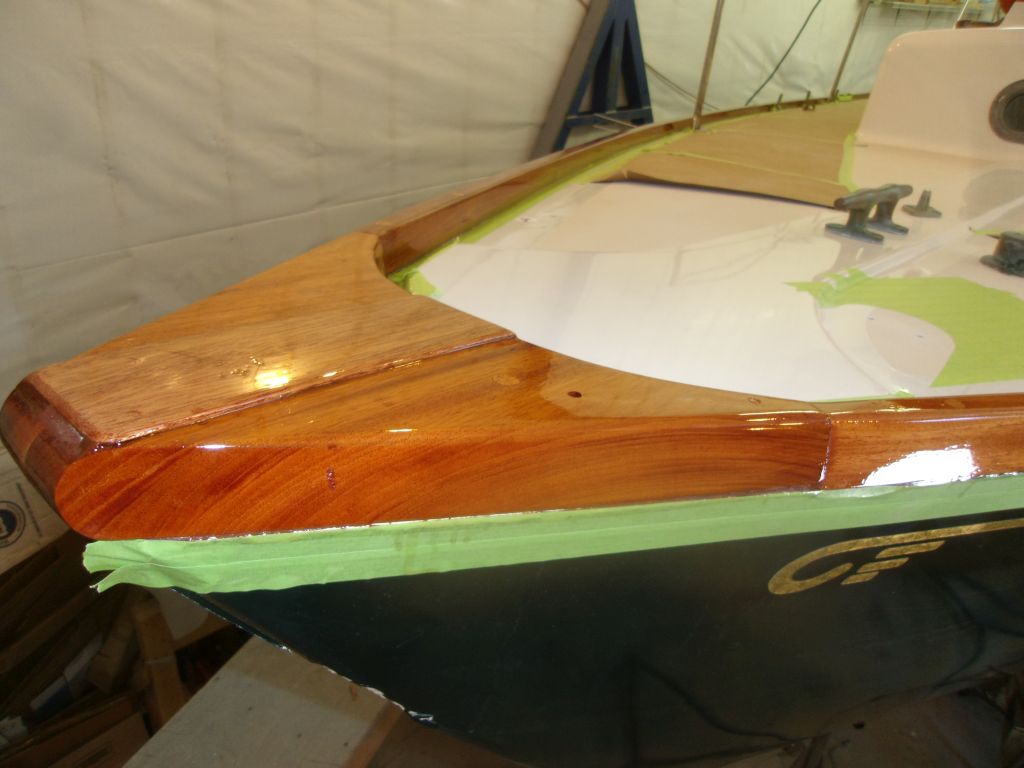

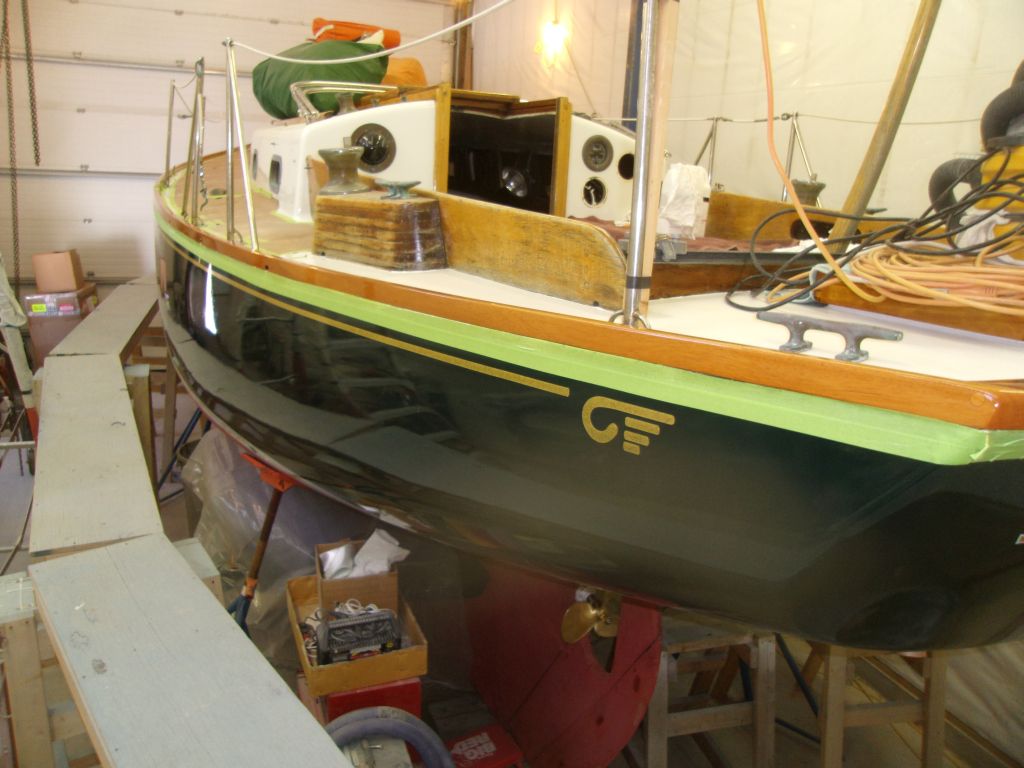

Afterwards, I applied more varnish to the toerails.




Total Time Billed on This Job Today:  4
