Ms Lynne G | Monday, November 10, 2014

As usual, I began the day by sanding the coamings to prepare them for varnish late in the day.

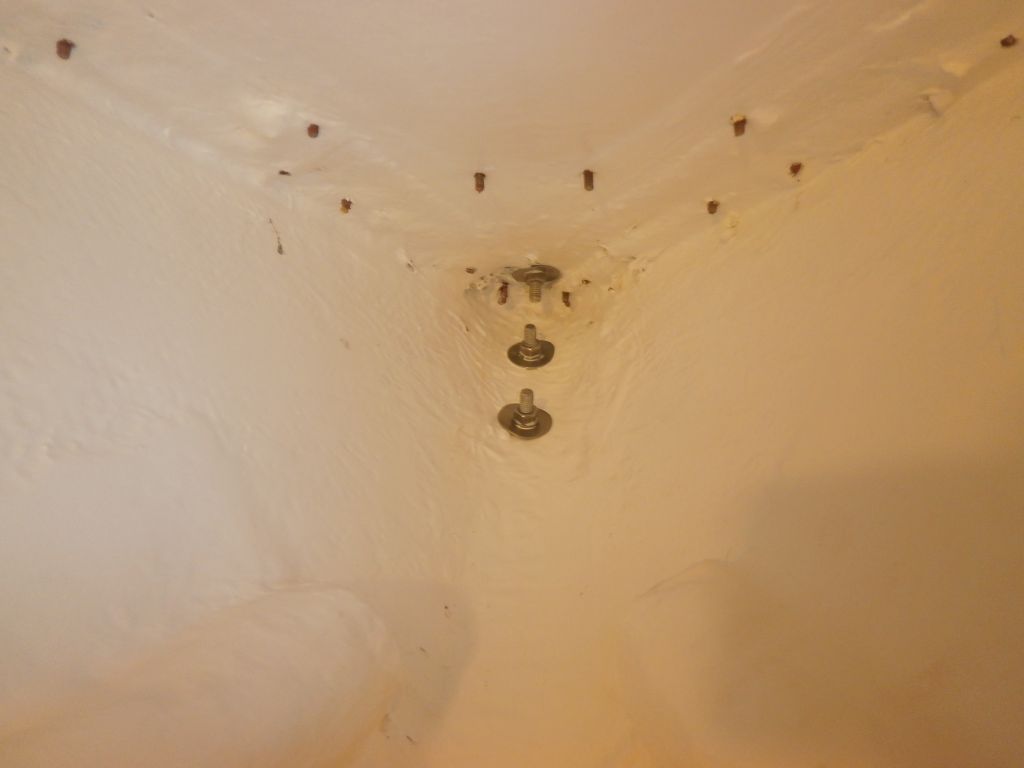

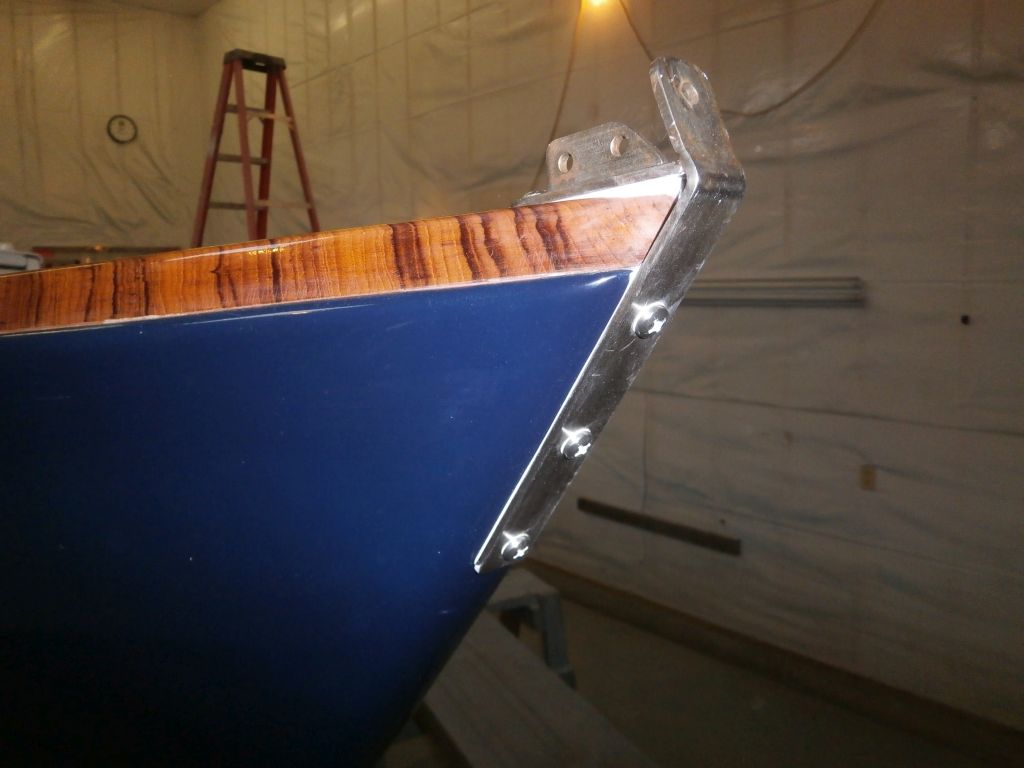

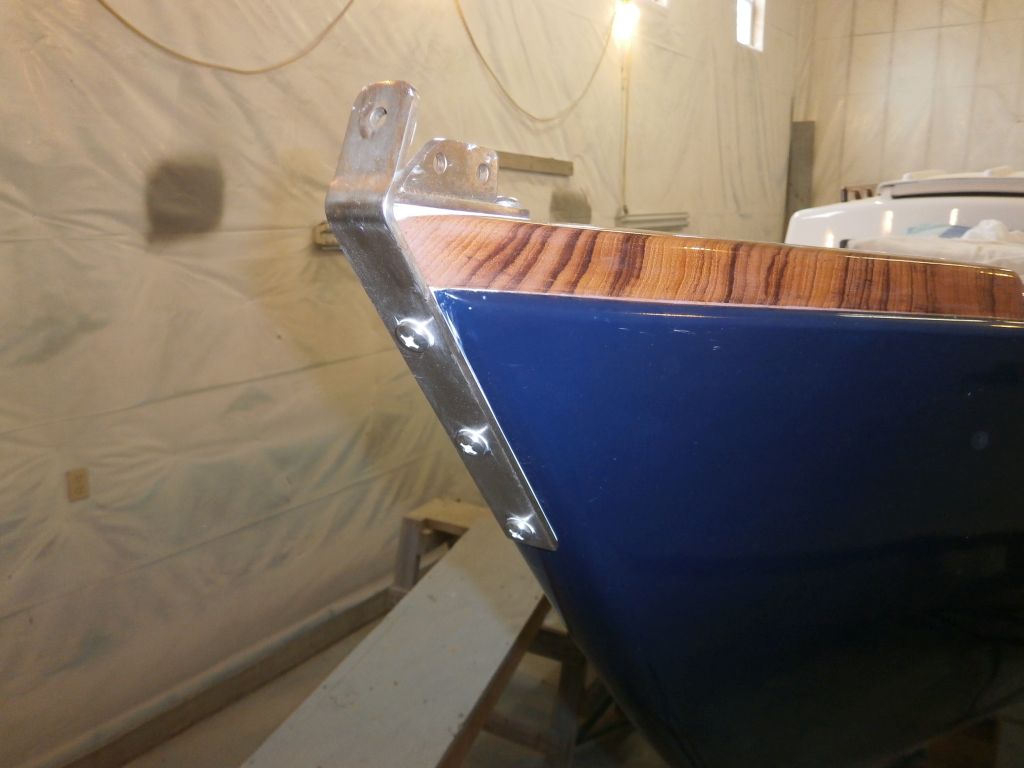

Over the course of the day, I worked on installing most of the remaining deck hardware, starting at the bow with the stem fitting.  After a dry-fit, which allowed me to drill the final bolt hole through the top of the fitting into the deck, I installed the fitting with new bolts and sealant.

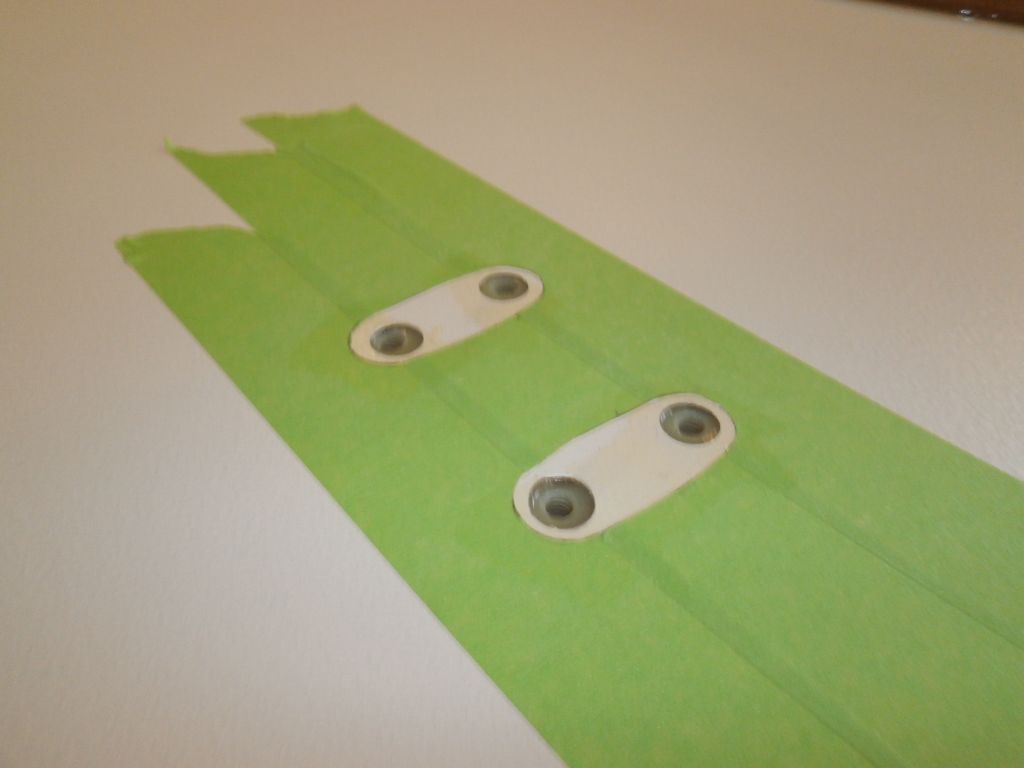

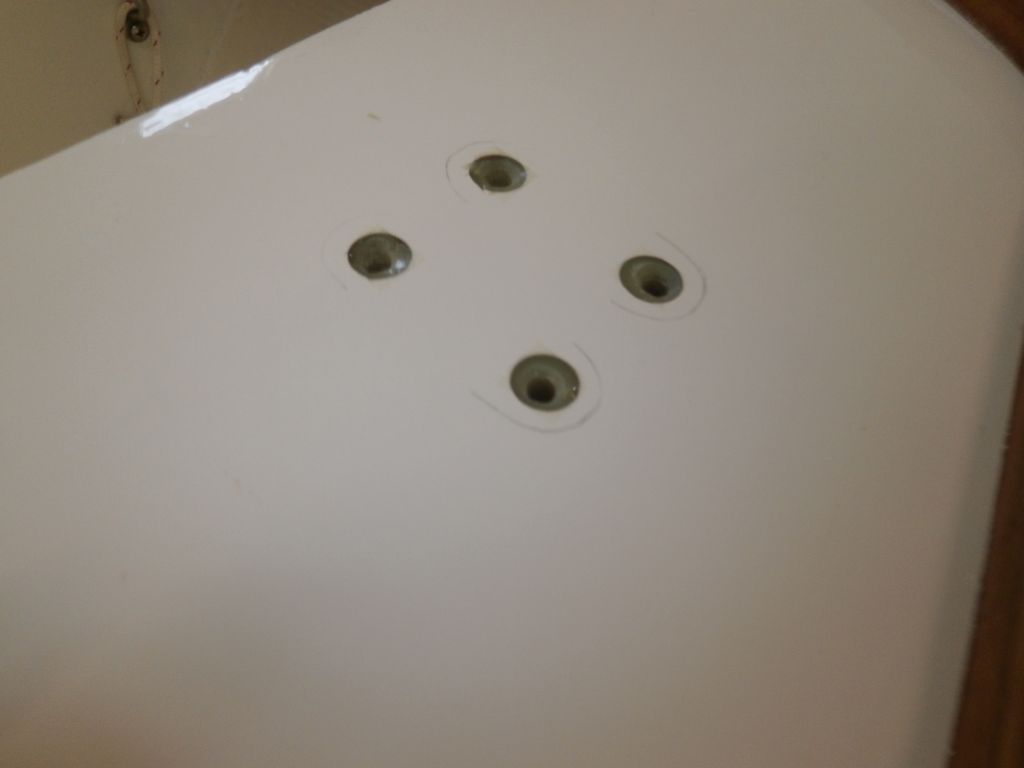

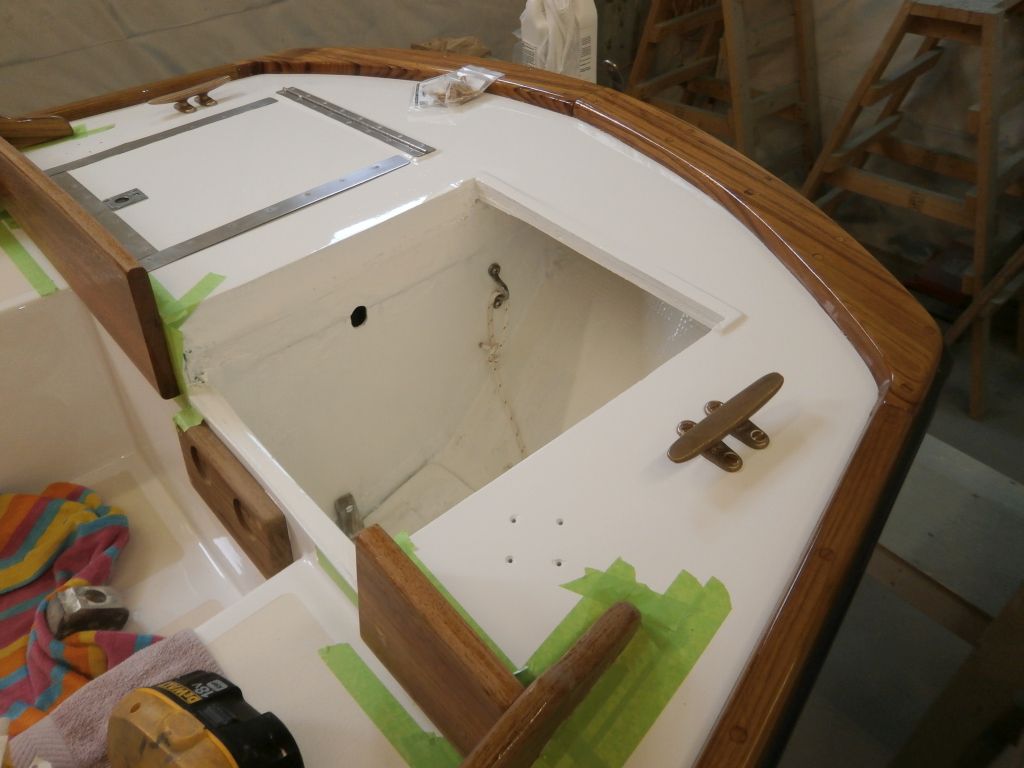

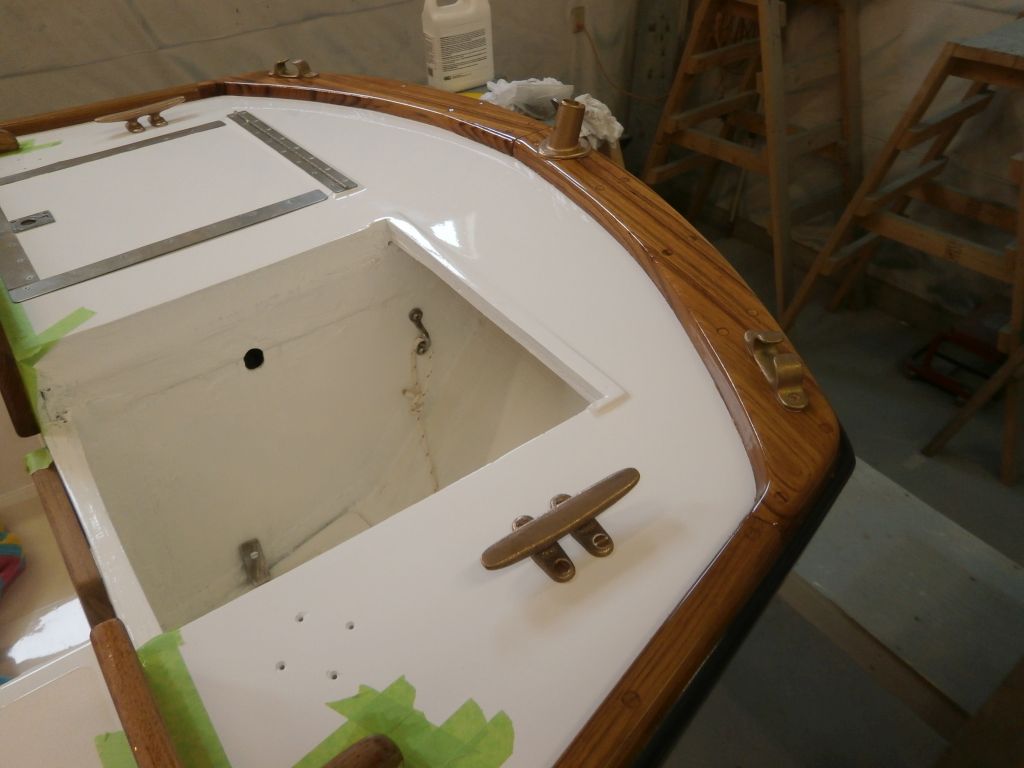

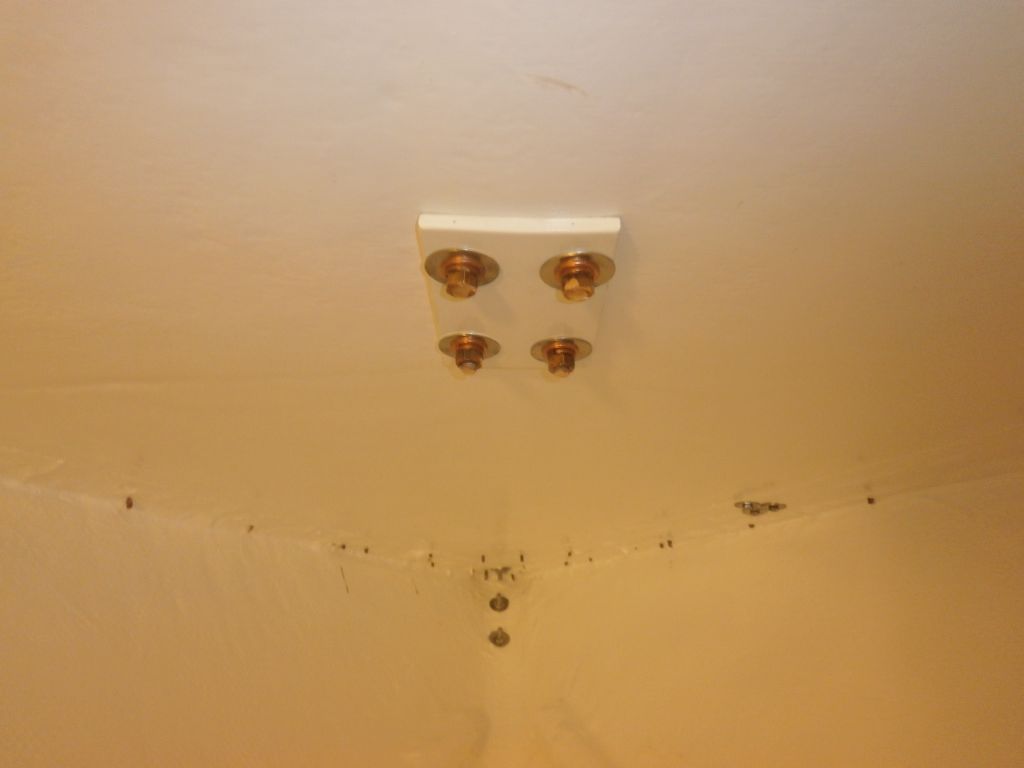

Staying at the bow, I worked on the mooring cleat, first preparing the holes with drill and 5/16-18 tap and my habitual countersink at deck level.  Afterwards, I installed the cleat with new fasteners and sealant, and a fiberglass backing plate belowdecks that I'd made and painted earlier.

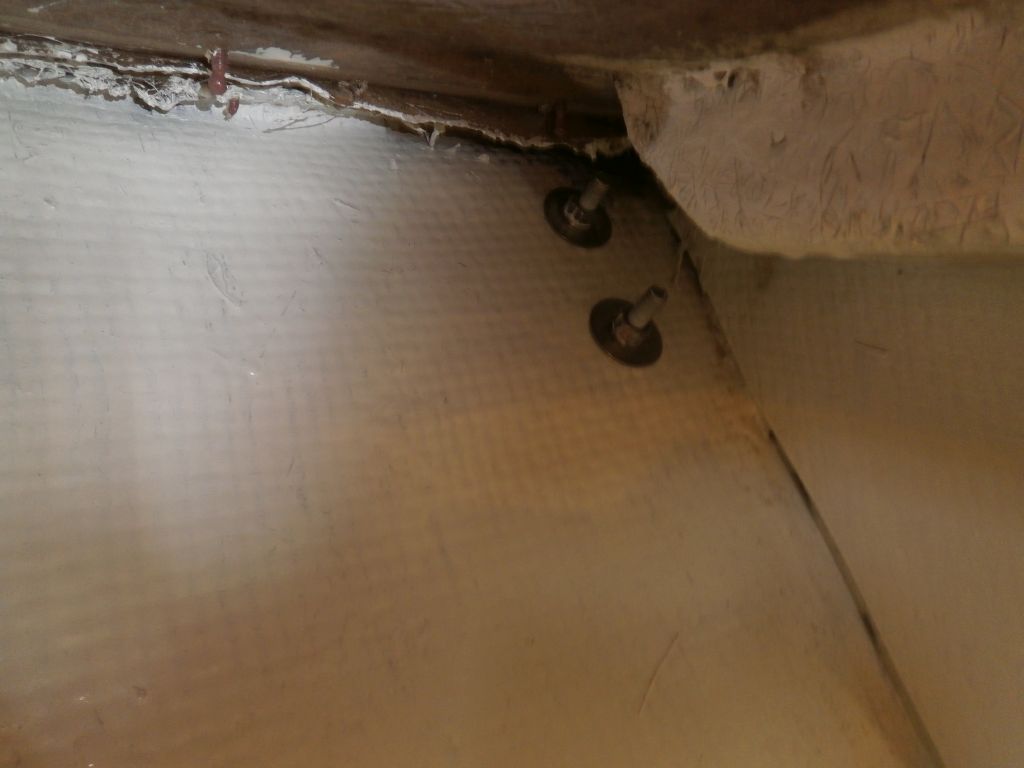

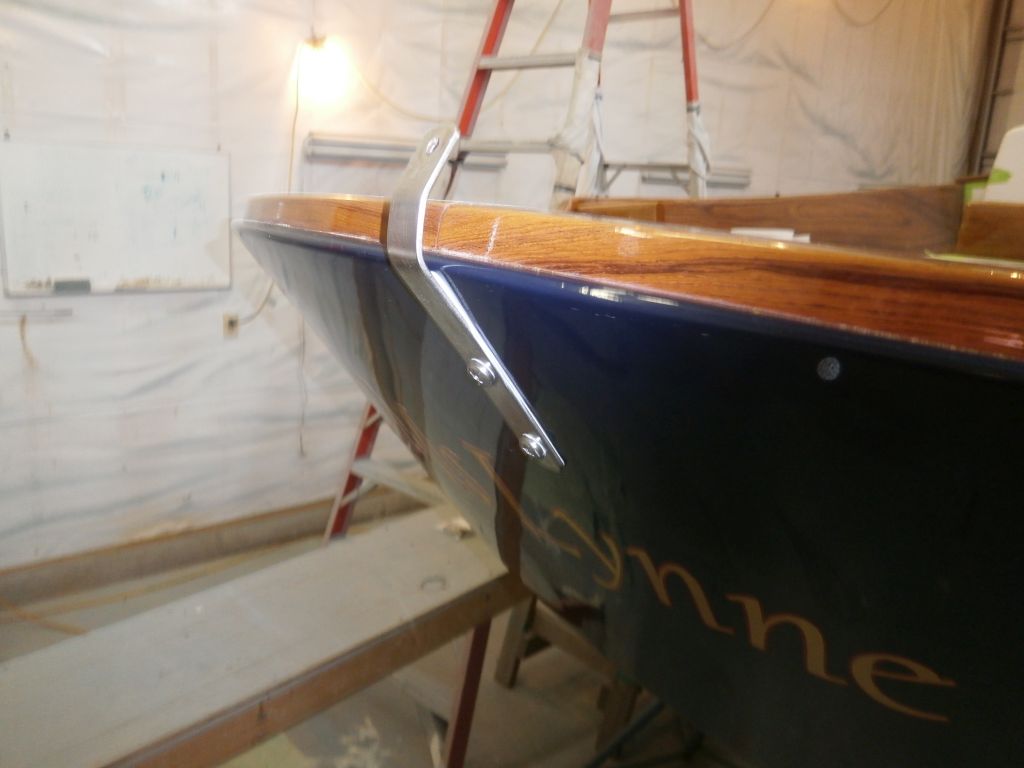

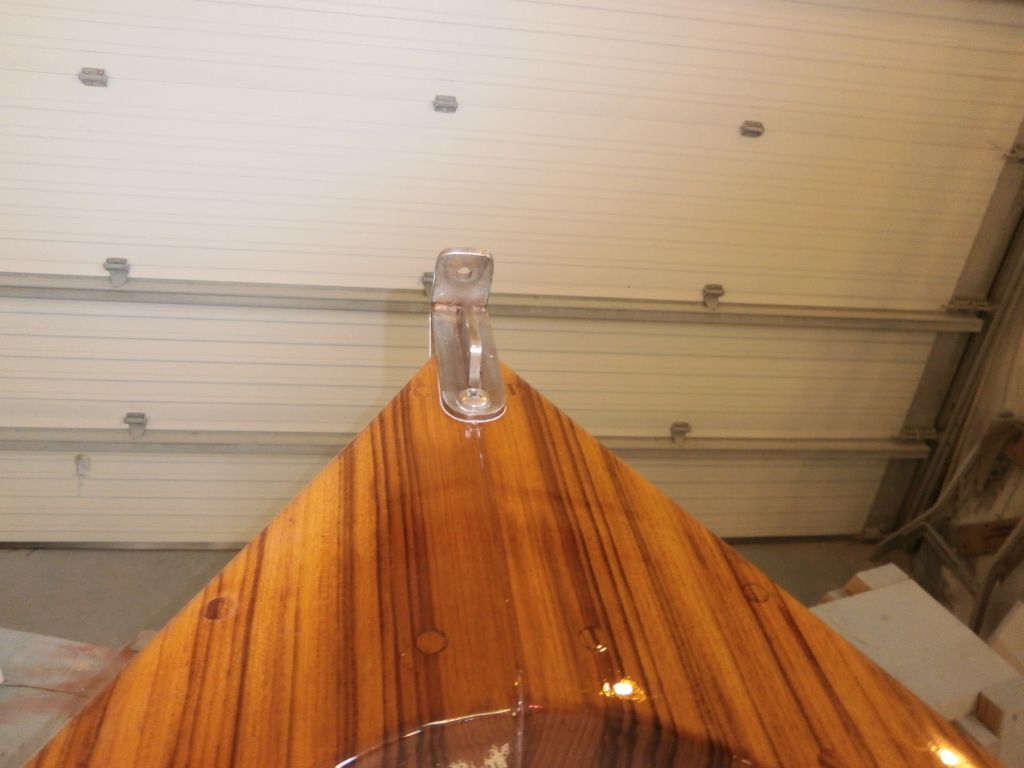

At the stern, I installed the backstay chainplate.

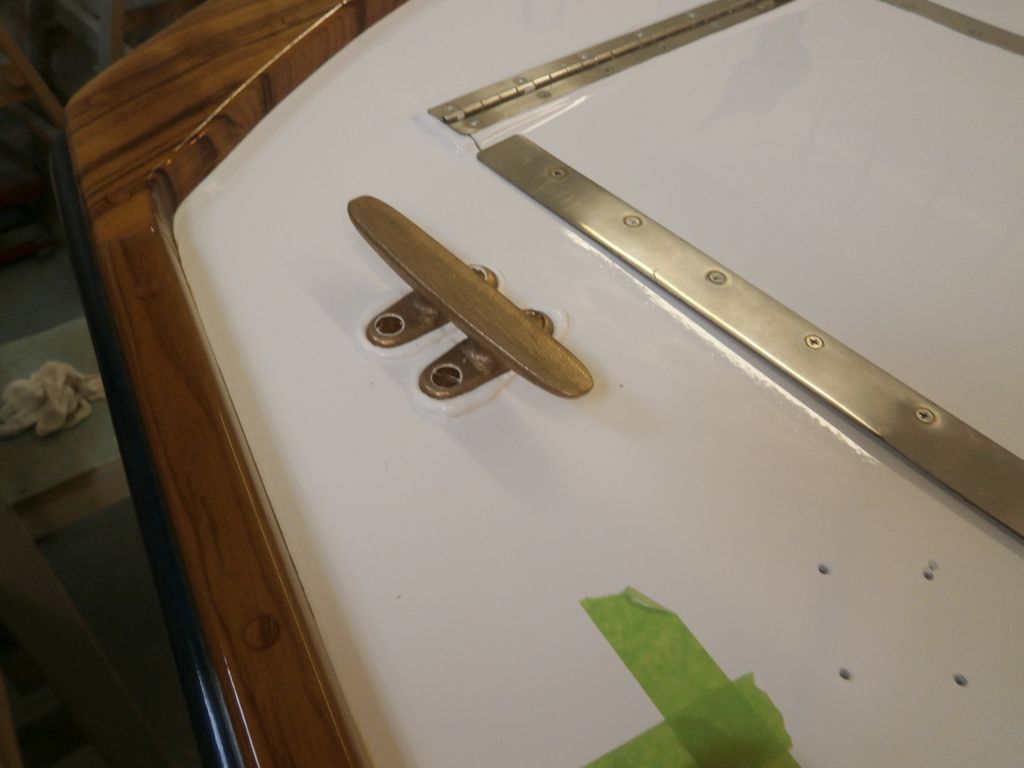

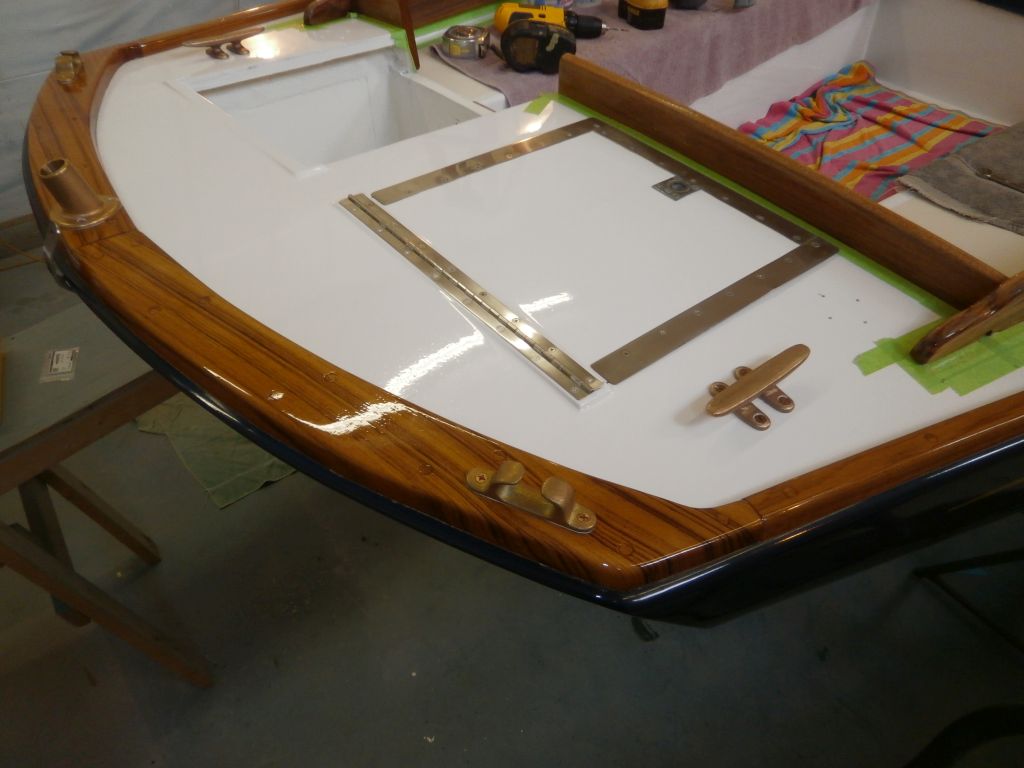

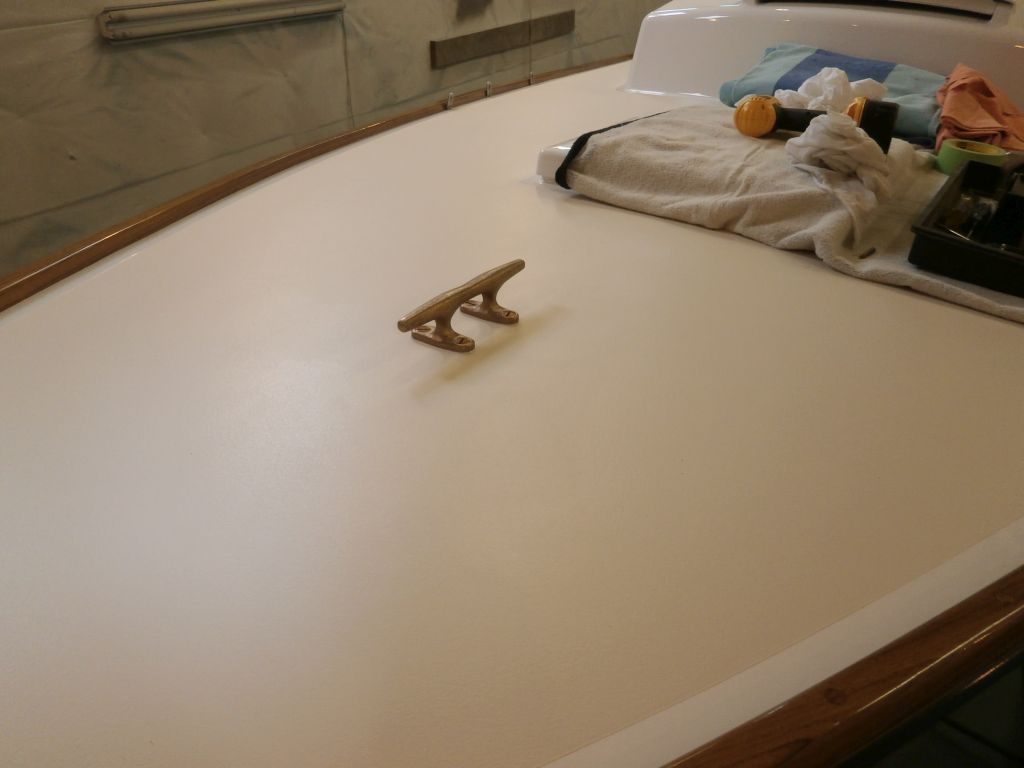

Next, I prepared the fastener holes and installed the new stern mooring cleats.


Wrapping up work at the stern, I installed new bronze chocks and a flagpole socket.

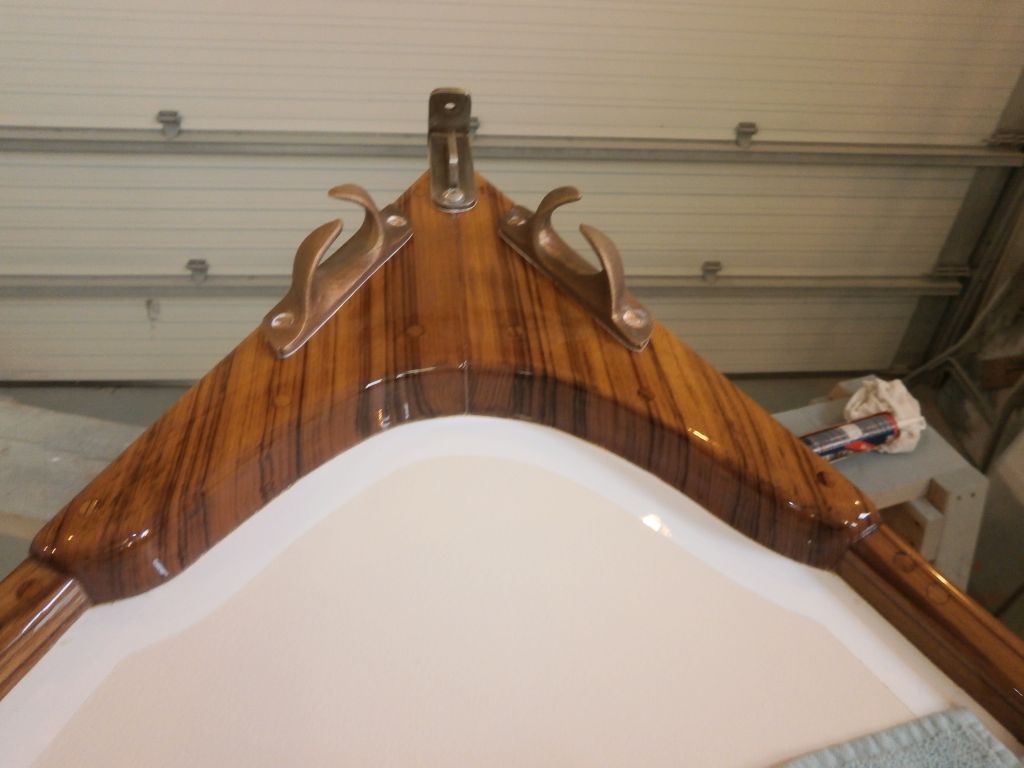

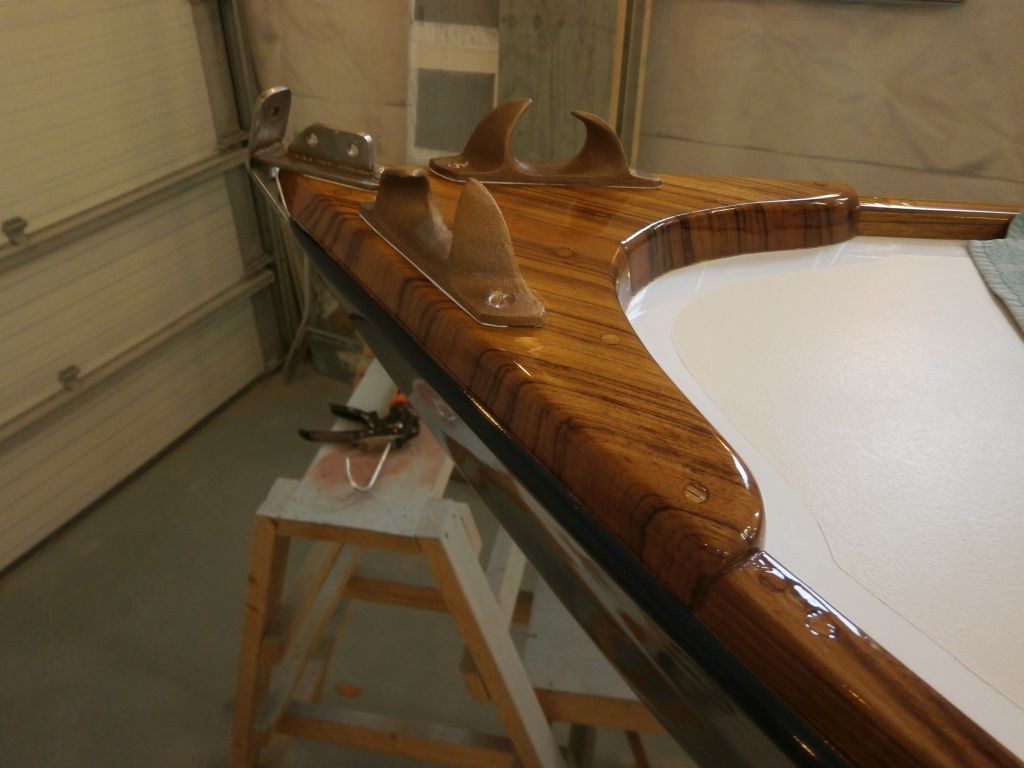

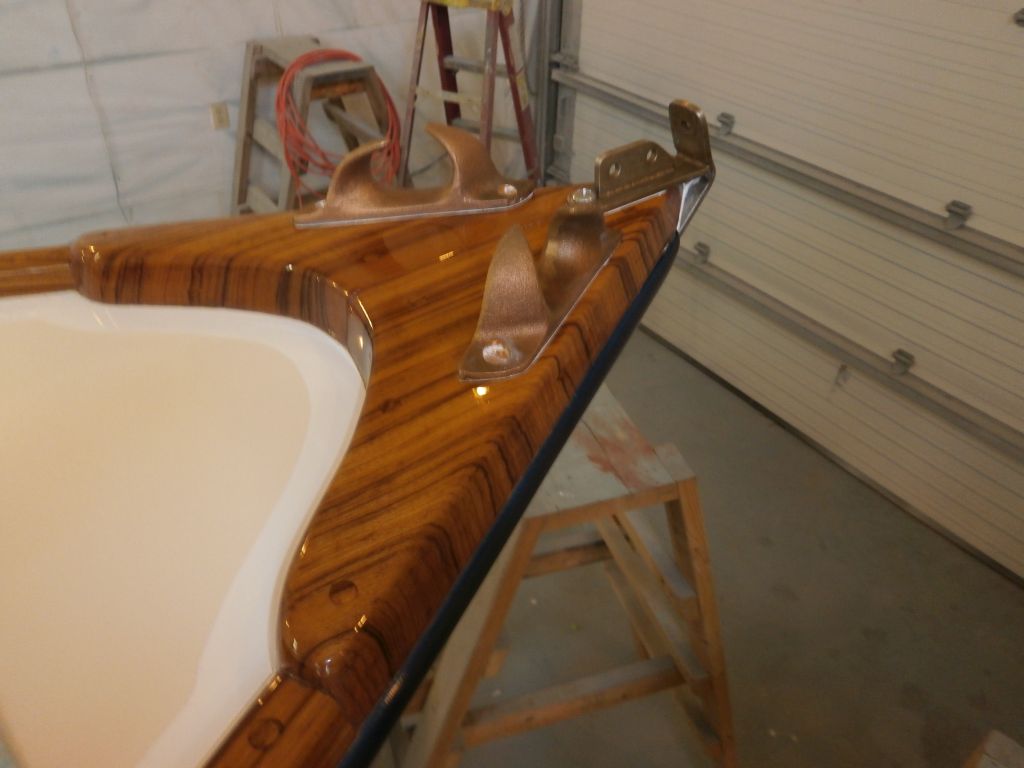

Back at the stem, I installed a pair of 6" bronze Skene chocks.

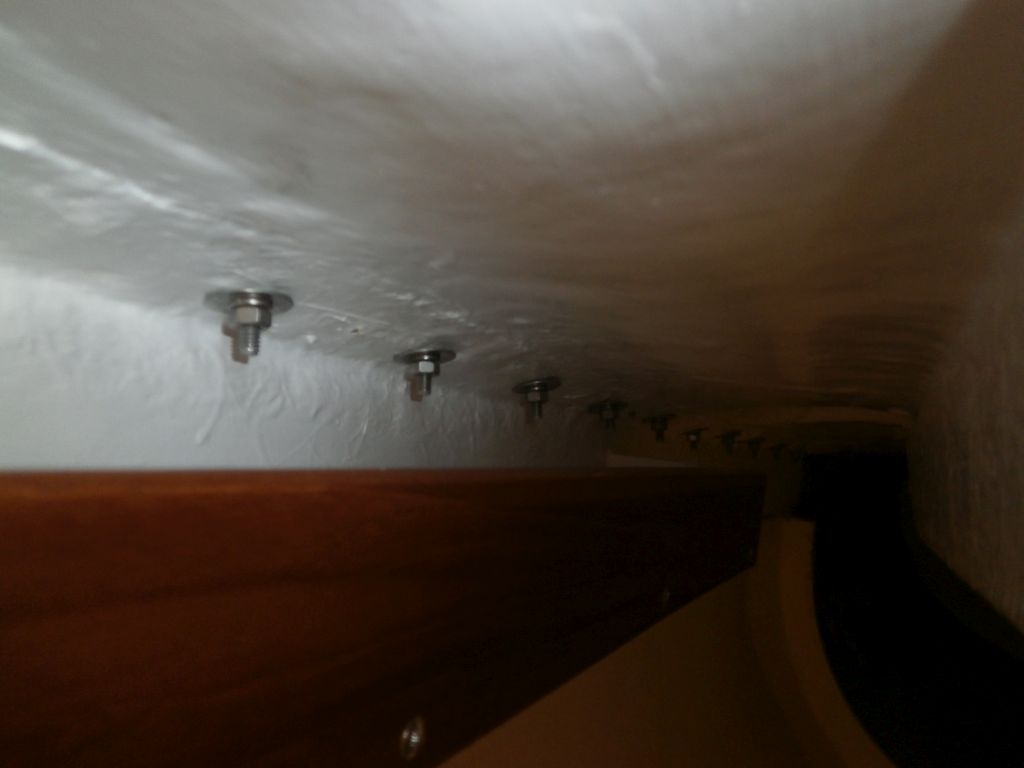

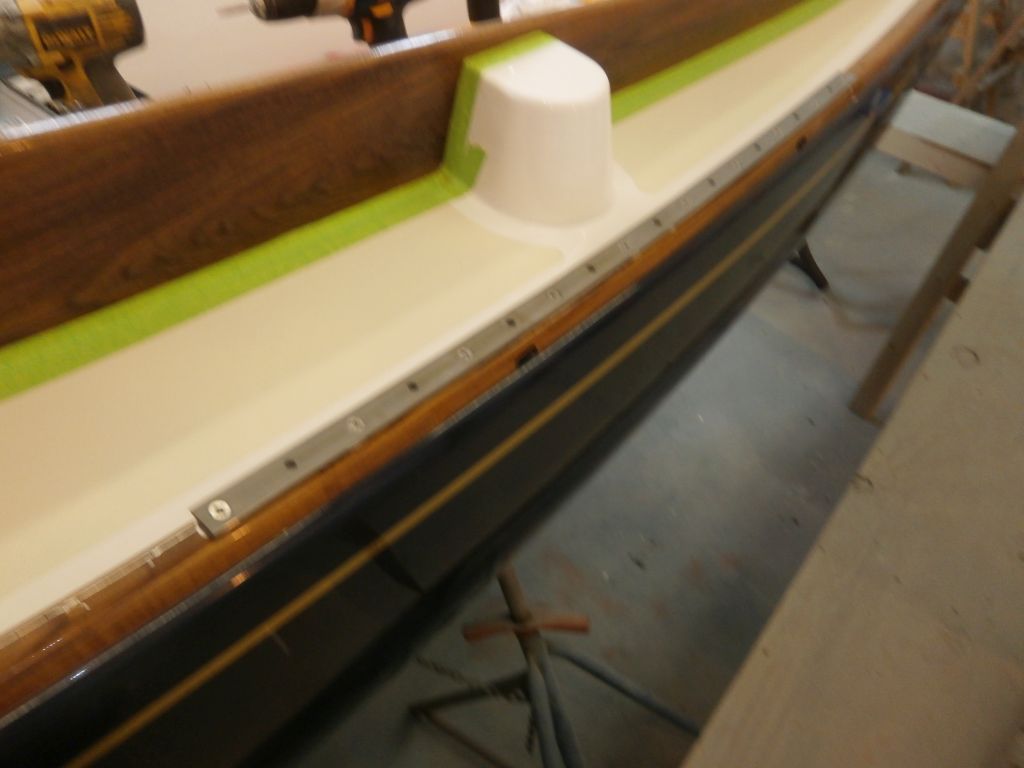

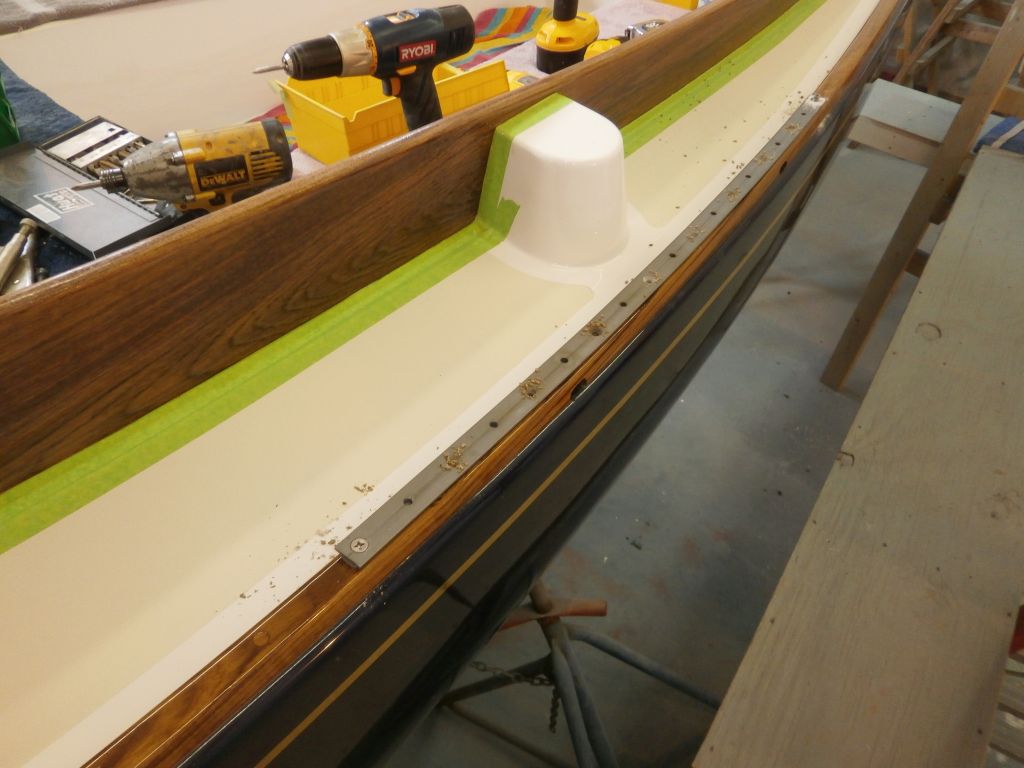

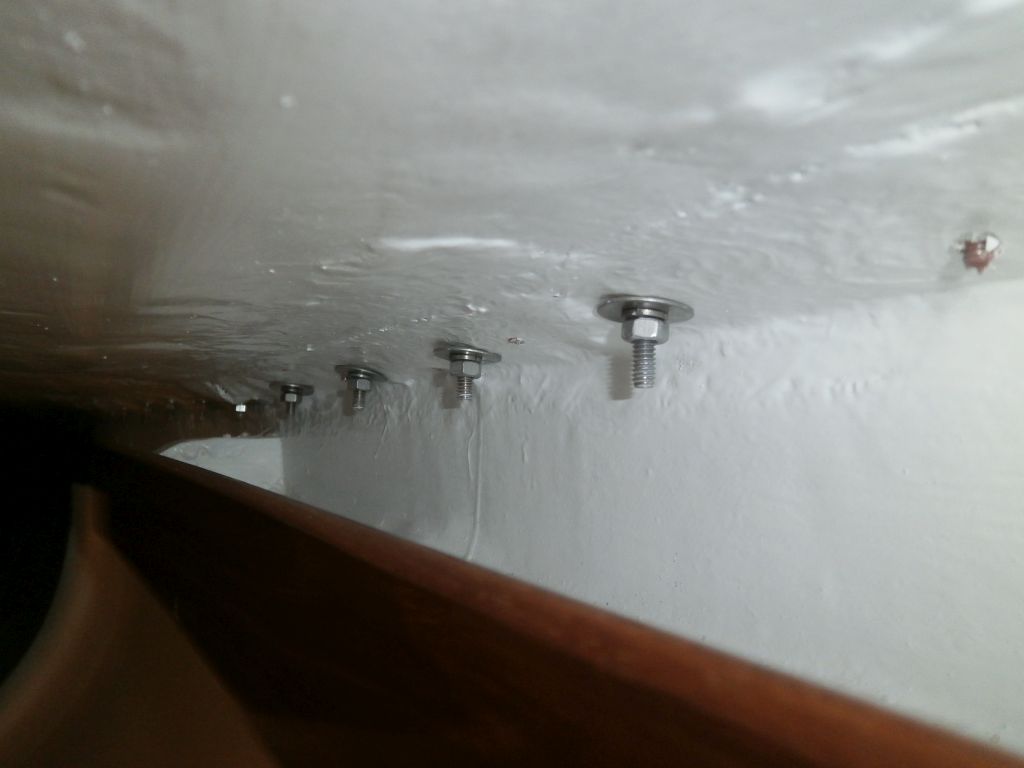

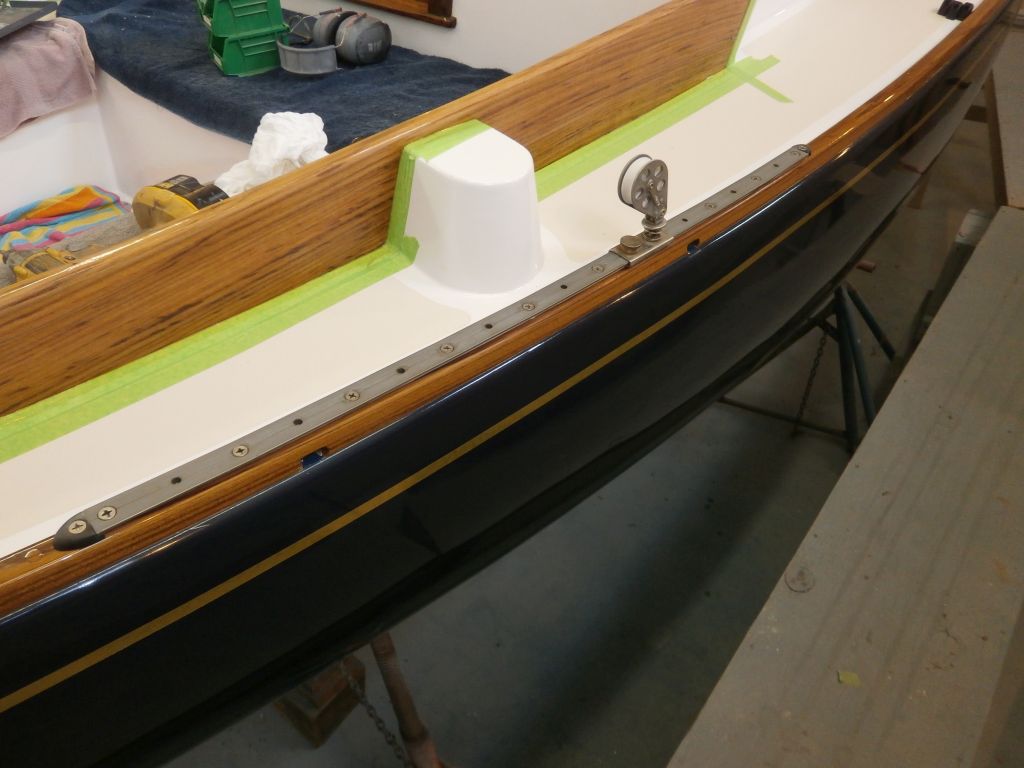

Next, I installed the genoa tracks.  Sorry, my new camera is a piece of junk and takes blurry pictures about 1 in 3, so despite trying to take duplicate photos in every instance, I have been losing various views taken along the way.

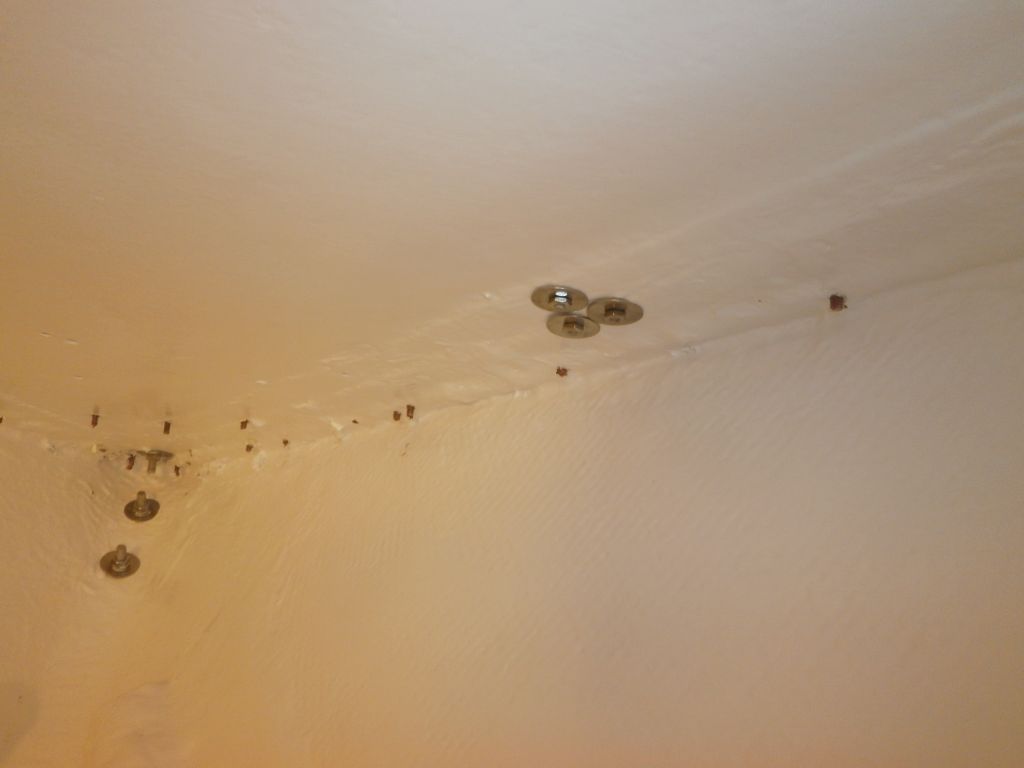

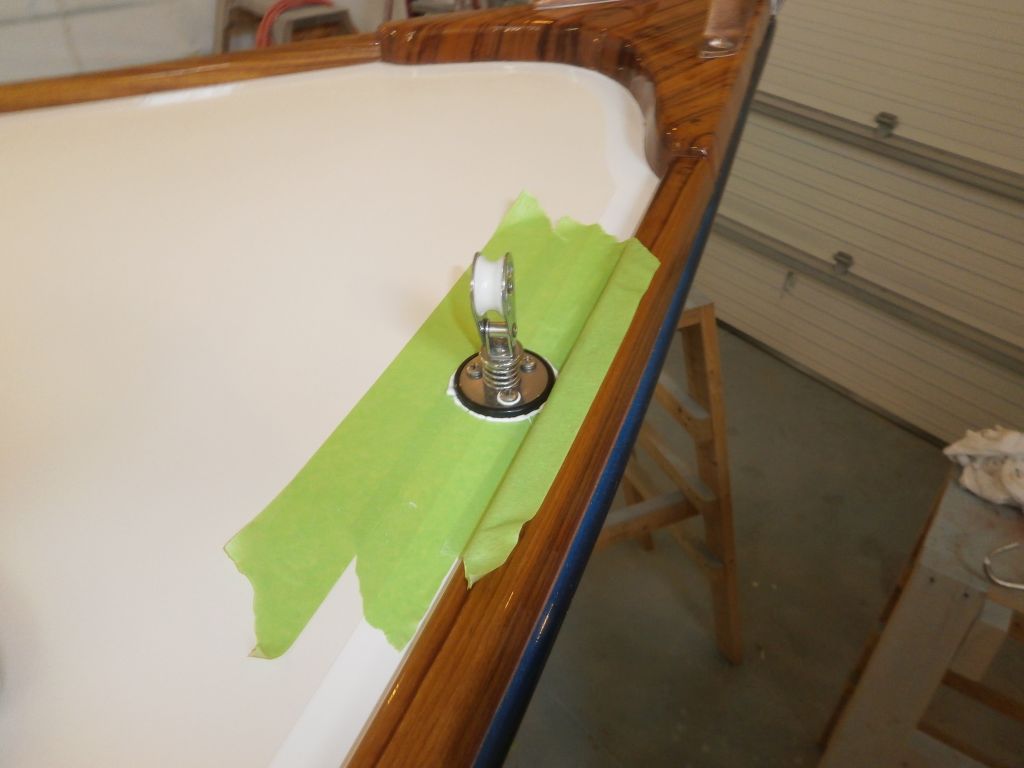

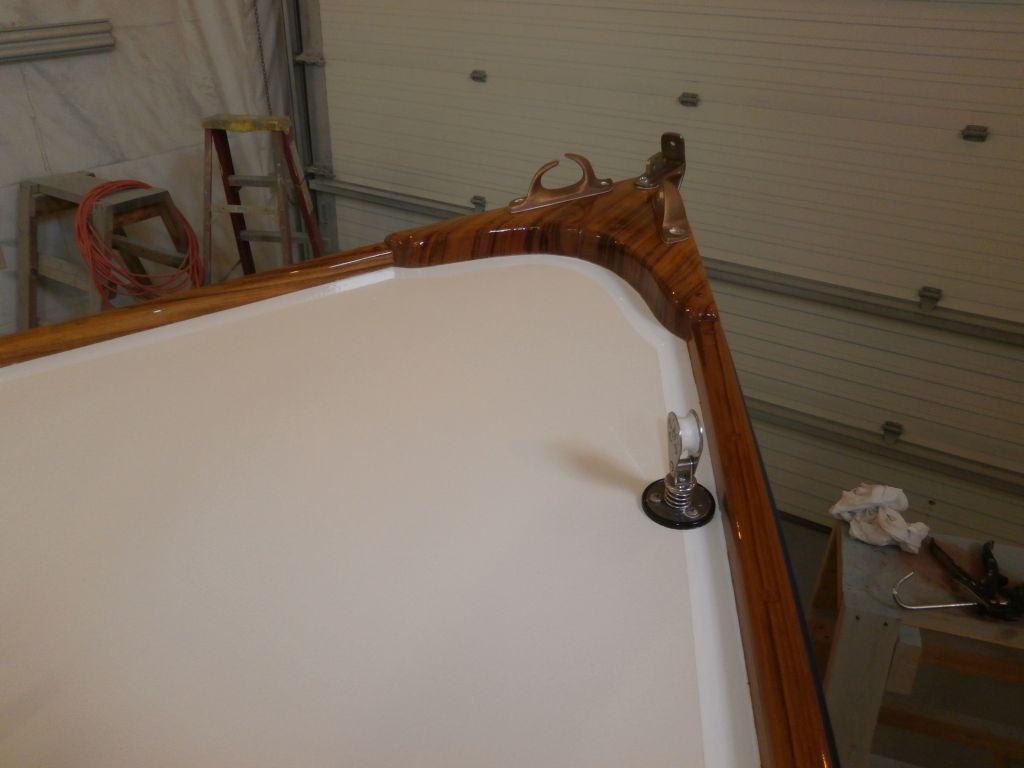

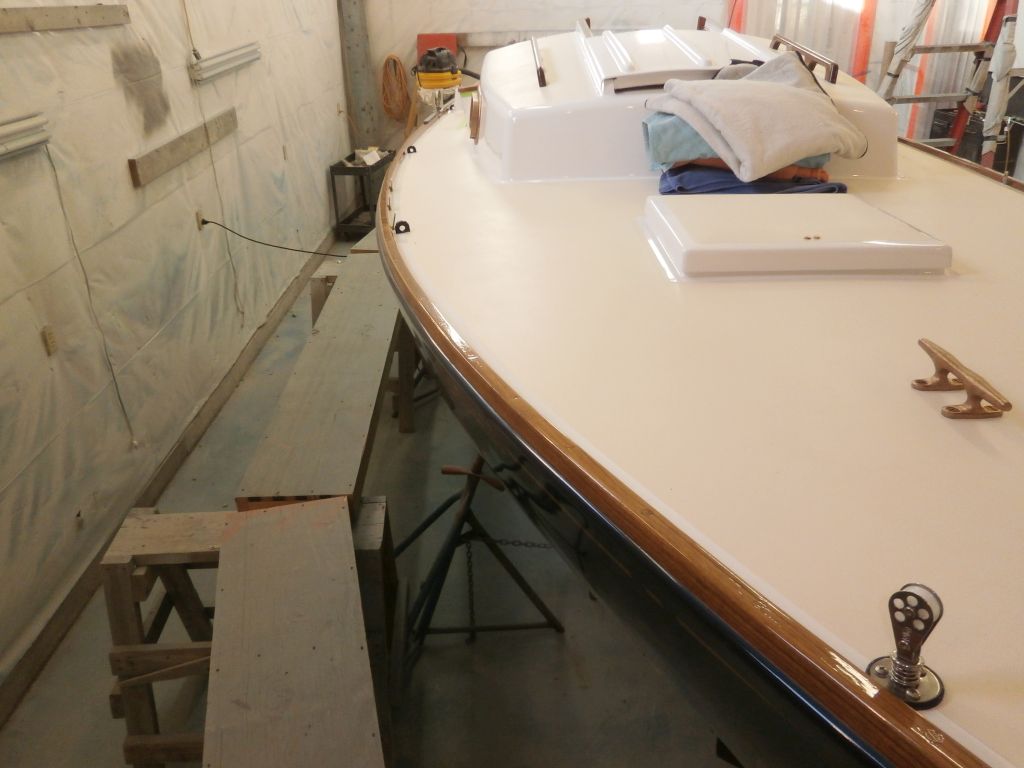

The final hardware to install for now was a series of fairleads for the roller furling control line, starting near the stem with a deck-mounted block.

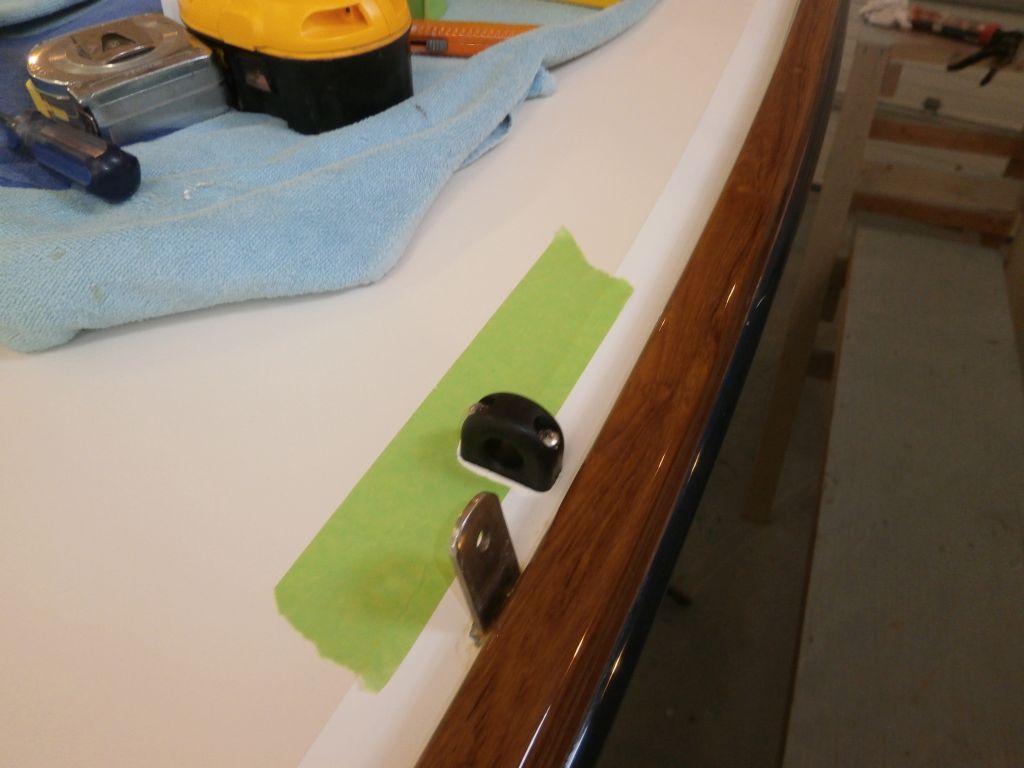

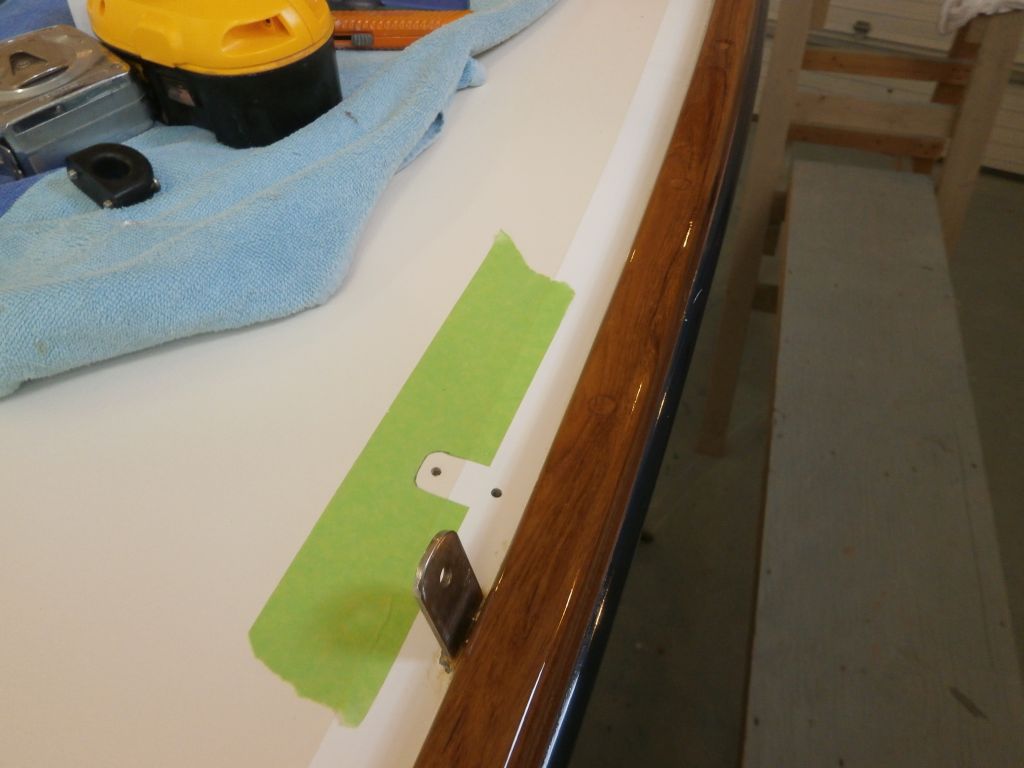

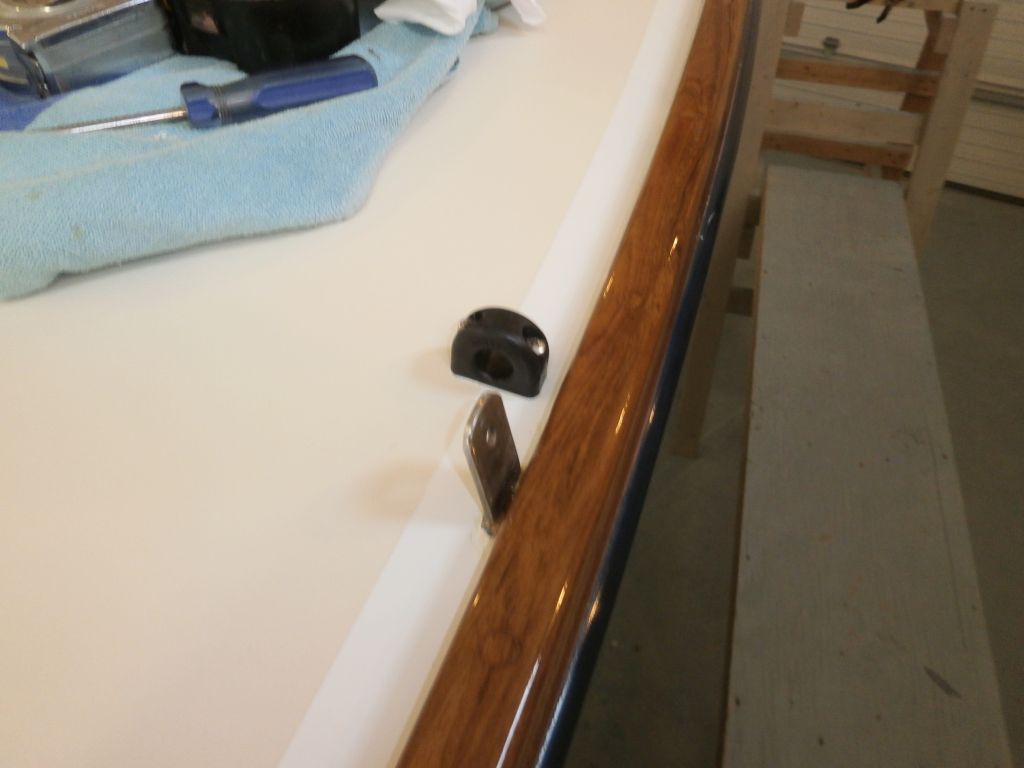

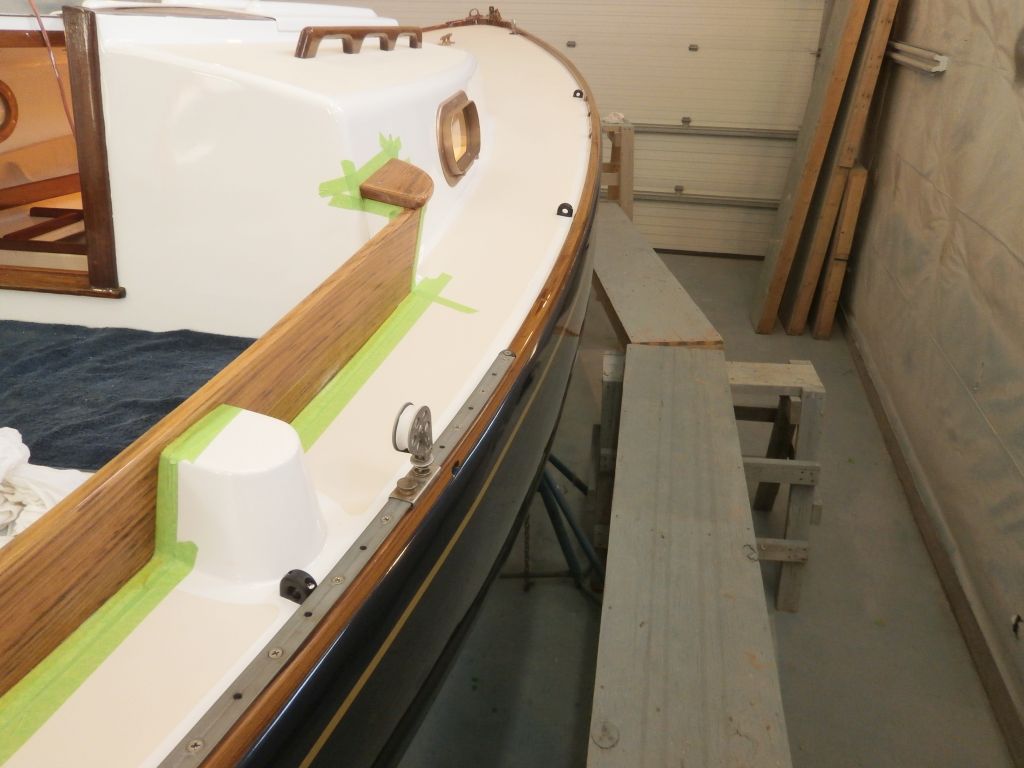

To lead the line aft from there, I installed three bullseye fairleads, spaced as needed along the starboard rail and past the winch island.  The line would eventually be terminated at the coaming-mounted jib sheet cleat, which installation would await the completion of coaming varnish.  For each of these fittings, I drilled and tapped the deck for machine screws, and installed the fittings with sealant.



For now, that wrapped up the hardware installation, but once the coamings were done, there were a few more things to install:  winches, jib sheet cleats, and the mainsheet hardware, all of which I chose to leave off for now since finishing the coamings would be easier.

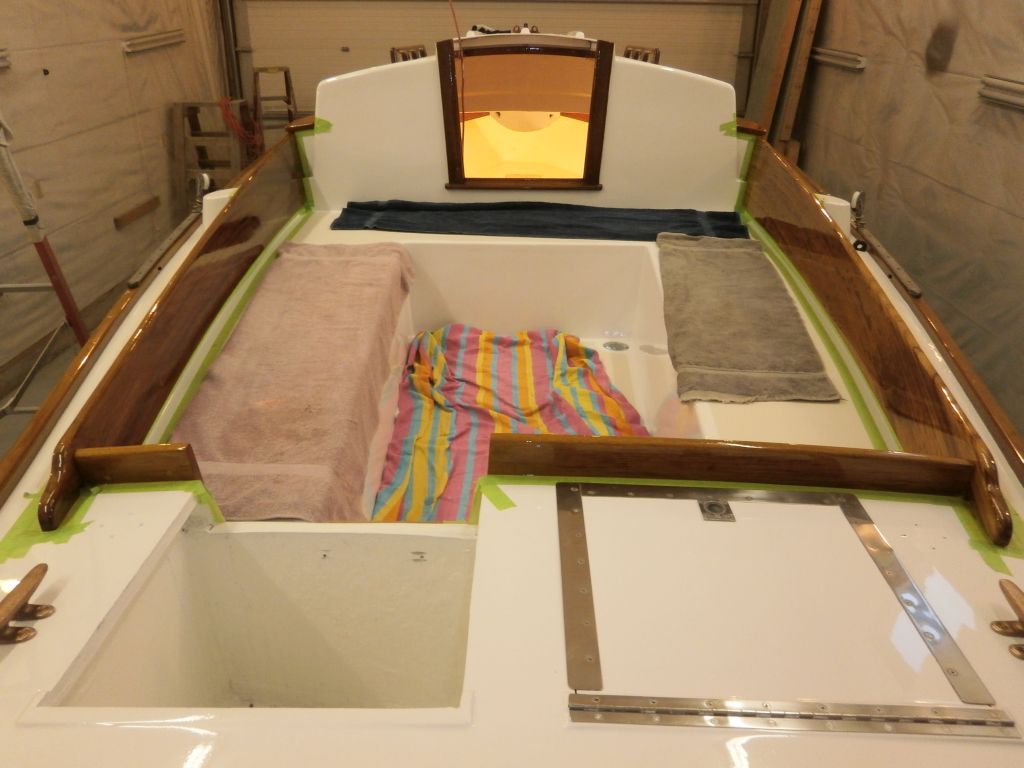

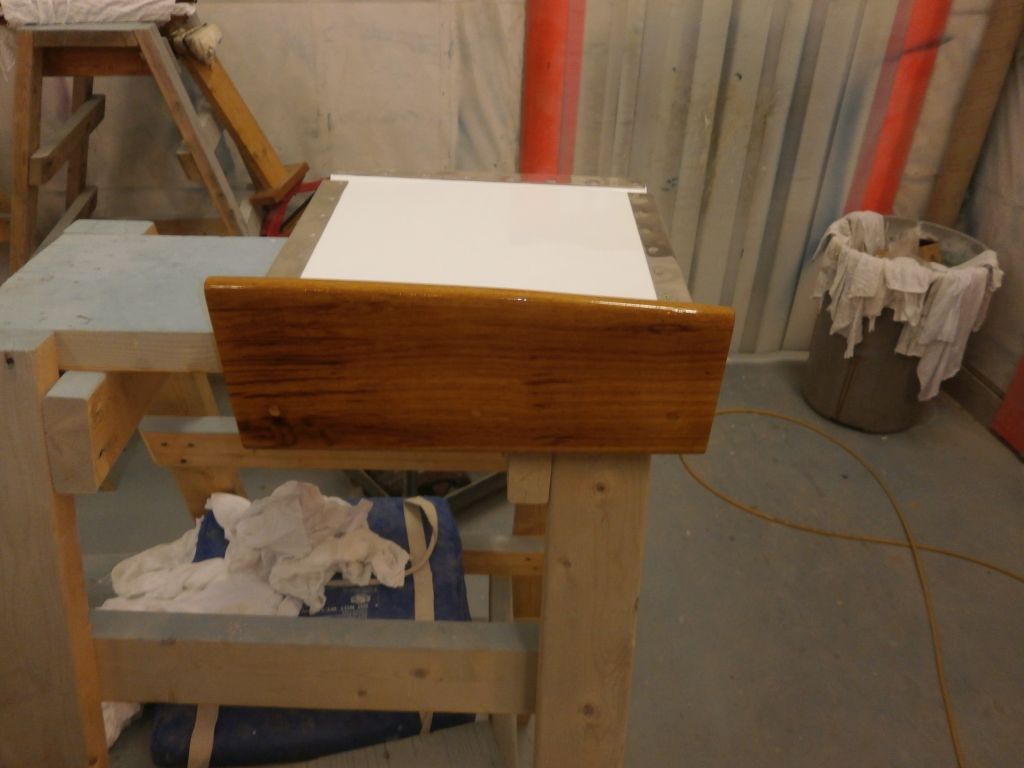

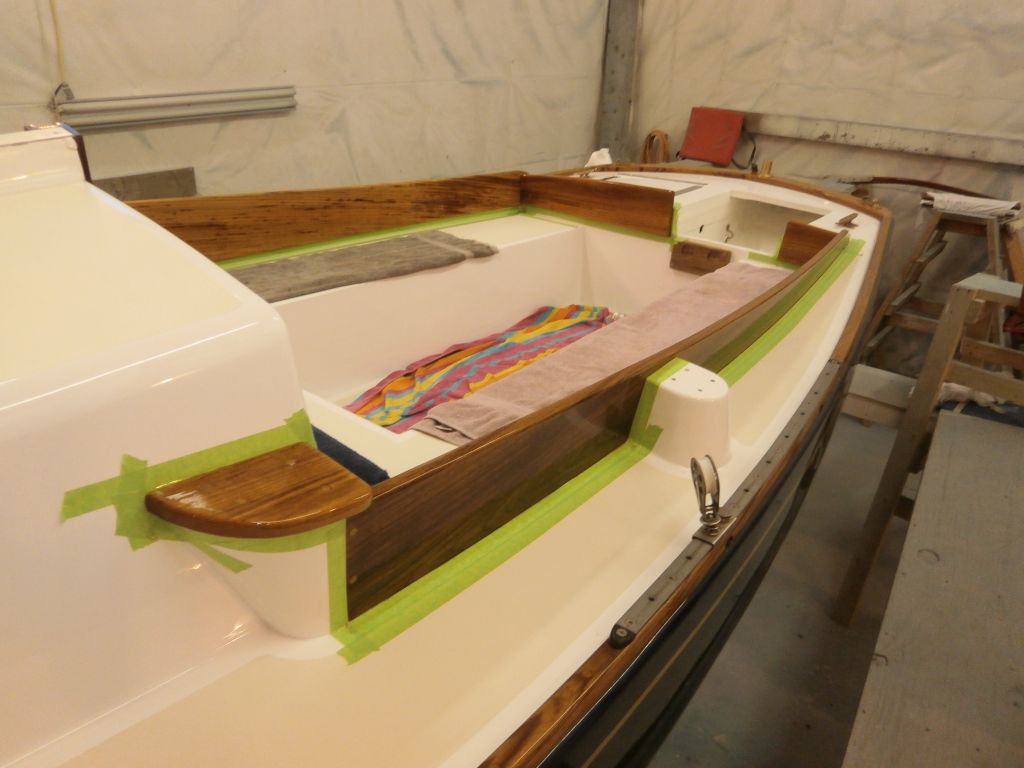

To that end, after final preparations and cleanup, I applied a sixth coat of varnish to the coamings.



Total Time Billed on This Job Today:  8.5
