Circe | Thursday, October 15, 2009

As I looked around the boat in the morning, contemplating various options and installations ahead, I determined that I needed to think about installing some of the new through hulls and seacocks and hoses, particularly in the aft part of the boat, before I made access more difficult as the interior and engine room work progressed.  This led to a rather lengthy office session as I put together a list of the things I needed and placed the orders for bronze fittings, clamps, and hoses; I expected these items to arrive early next week.

With the ordering out of the way for now, I considered what tasks lay ahead in the immediate future, and decided that I needed to permanently install the settee platforms.  So I spent the remainder of the morning getting ready for the installation:  removing the various tools and such that were in the way, vacuuming and solvent-wiping the mating surfaces of the platforms and support structure, and various other preparations for the job.

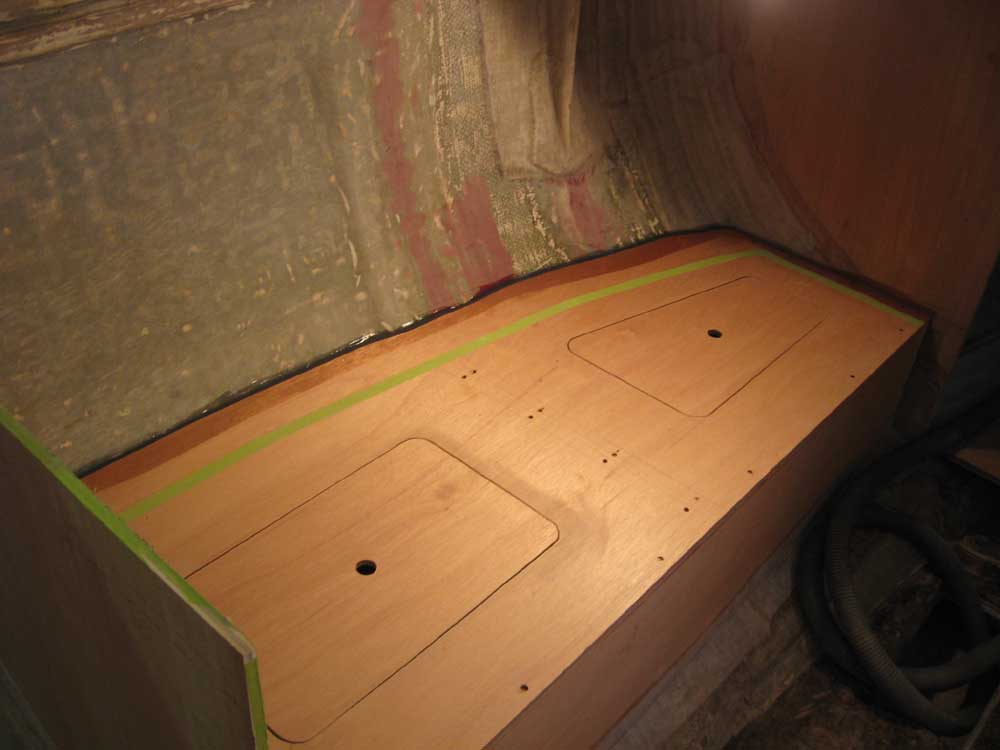

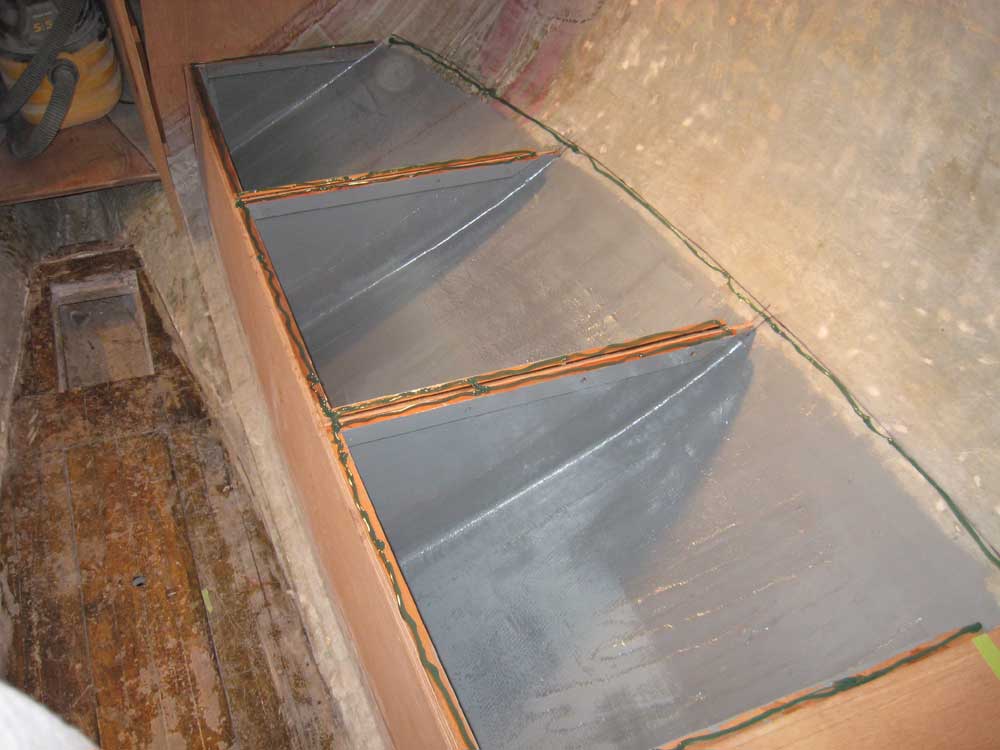

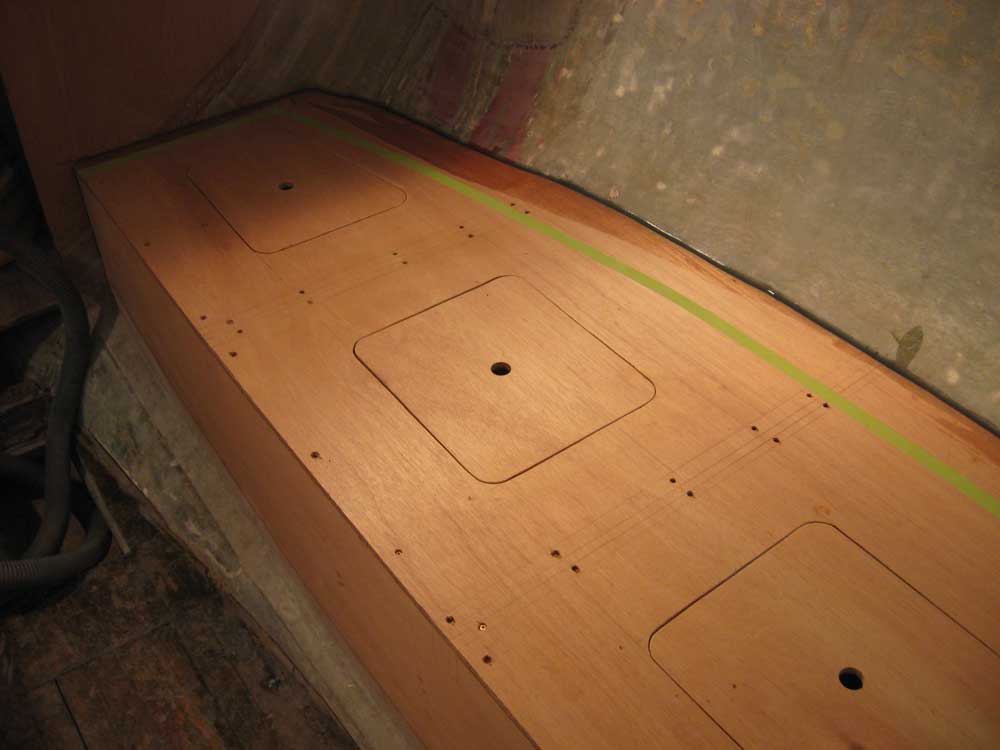

With everything thusly prepared, I applied a bead of Pro-Set to the support cleats and hull, and secured the platforms in the adhesive using bronze screws, which I drove every several inches along all the support cleats as needed.  I applied additional adhesive in the slight gap where the platforms met the hull, and left it to partially cure while I cut strips of 6" fiberglass tabbing for the next step.

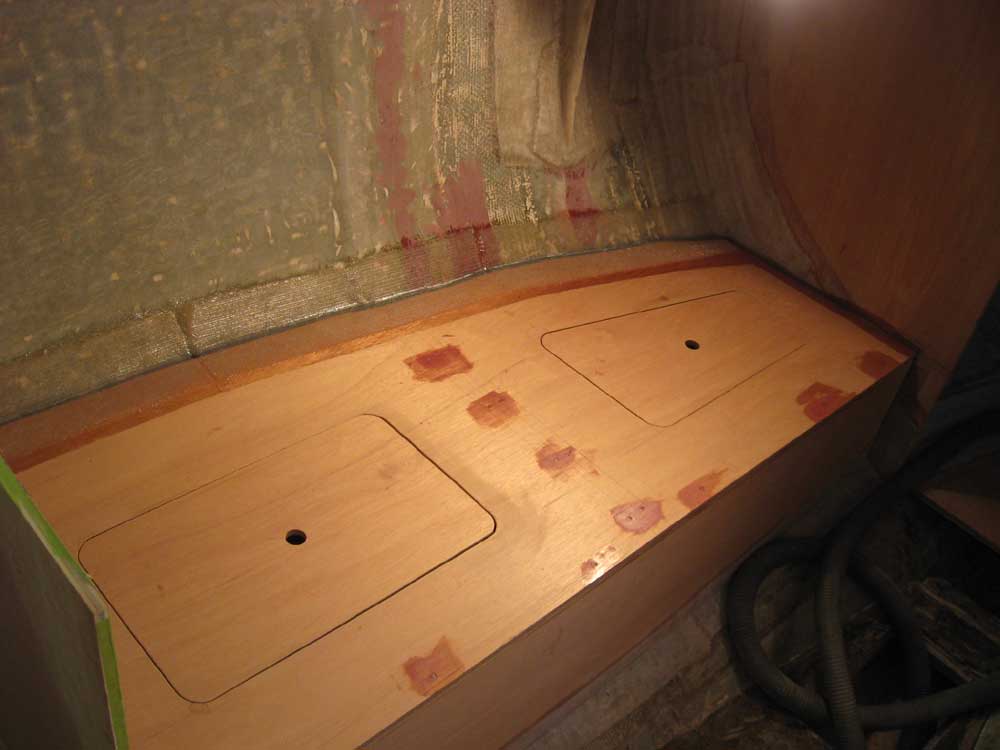

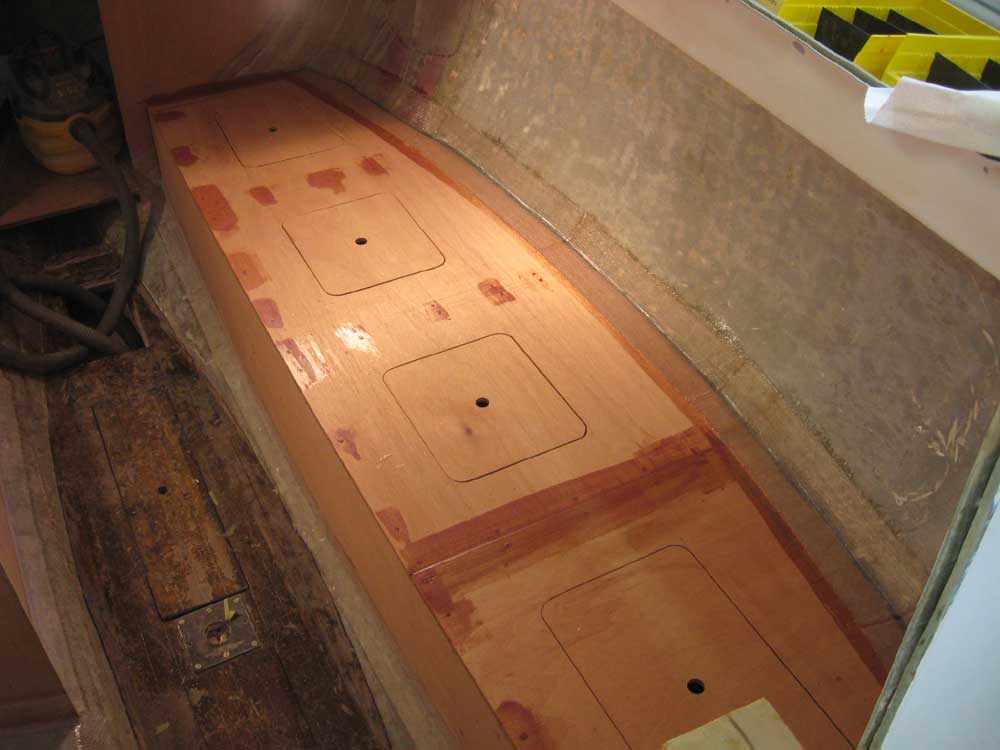

With the adhesive semi-cured, I wet out and installed the new tabbing, securing the outer edge of the platforms to the hull--probably an unnecessary step, but there you are.  Then, I applied some filling compound over the screw holes to cover them.

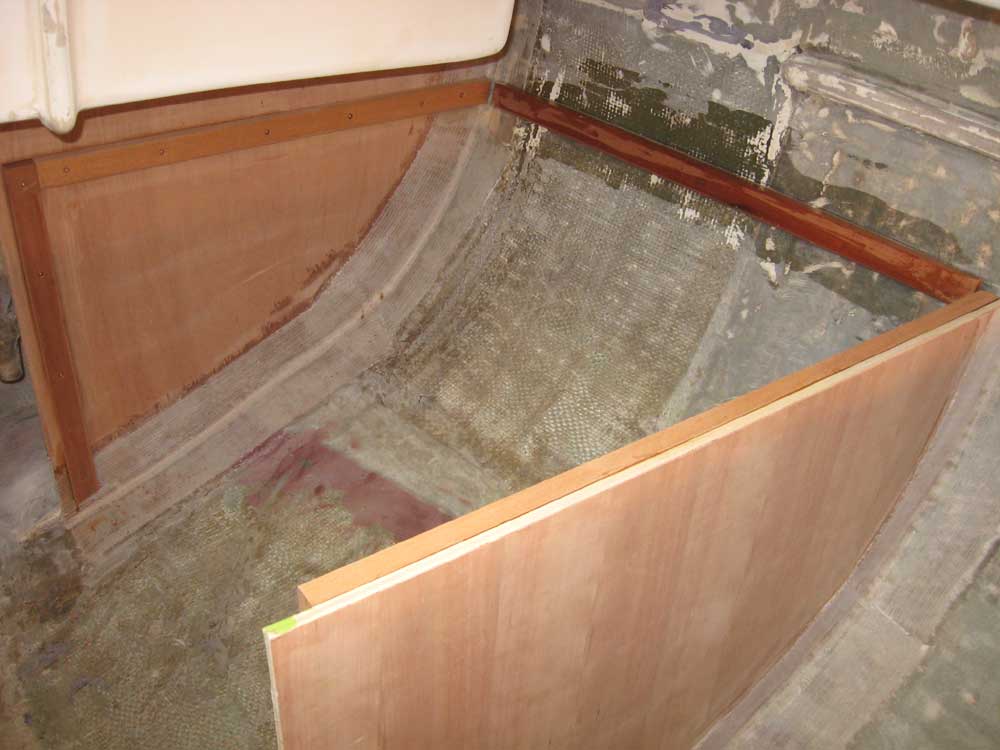

Using the conveniently omnipresent and as-yet uninstalled longitudinal galley bulkhead as a countertop avatar, I made a mark on the hull indicating the lower edge of the galley countertop, and then cut a mahogany cleat to fit the area.  I installed the cleat with epoxy adhesive, using dabs of hot-melt glue at the ends to hold it in place while the epoxy cured.  The curvature of the hull here was slight enough that I chose to not attempt to bend or laminate a support cleat to the exact curve, filling the small gap instead with the epoxy adhesive.



Total Time Billed on This Job Today:  6.75 hours
